166 MODEL TIM-5200F/R 0307-001 電源部 POWER SUPPL Y SECTION Fig. BF-2 電源２ レイアウト （１） Power Supply 2 Layout (1) 162 . 158 . 157 186 136 137 138 193 136 137 138 153 198 154 156 176 161 160 198 197 197 197 198 167 167 116 117 1…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
165
MODEL TIM-5200F/R
0307-001
BF-1
21 411 119 2104 WASHER V 4X9X0.8 20 FW4 F
22 411 008 1706 WASHER SPR 4 20 SW4 F
23 411 042 3001 SCR PAN 4X10 16 M4X10 PAN
24 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
25 411 141 4008 WASHER V 4X9X0.8 4 FW4
26 411 141 2905 WASHER SPR 4 4 SW4
27 630 000 7619 BOLT,HEX-SCT 4 M4X8
28 411 113 2803 SCR PAN 5X8 1 M5X8 PAN
31 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
36 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
37 411 141 3001 WASHER SPR 6 2 SW6
38 630 000 7879 BOLT,HEX-SCT 2 M6X12
51 630 118 7914 BREAKER 1 Q01 805BF-010-051
53 630 118 7938 HANDLE 1 805BF-010-053
54 630 094 1500 CIRCUIT PROTECTOR 1 Q201 805BF-010-054
55 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 FV01 805BF-010-055
56 630 116 8821 FILTER,NOISE 1 Z01 805BF-010-056
58 630 118 7839 FILTER,NOISE 1 Z02 805BF-010-058
62 630 099 3233 CIRCUIT PROTECTOR 1 Q204 805BF-010-062
63 630 089 6497 RAIL,WIRING 1 805BF-010-063
64 630 049 3672 BRACKET,WIRING 2 805BF-010-064
71 630 122 6446 BASE 1 805BF-010-071
72 630 122 6453 PANEL 1 805BF-010-072
73 630 122 6460 PANEL 1 805BF-010-073
74 630 122 6477 BRACKET 1 805BF-010-074
75 630 071 3343 COVER 5 805BF-010-255
76 630 071 3350 COVER 1 805BF-010-256
81 630 103 0852 TERMINAL 9 805BF-010-151
82 630 102 7494 ACCESSORY,WIRING 1 805BF-010-152
84 630 083 5564 ACCESSORY,WIRING 2 805BF-010-154
86 630 049 3672 BRACKET,WIRING 2 805BF-010-156
87 630 091 2104 RAIL,WIRING 1 805BF-010-157
90 630 083 5458 TERMINAL 4 805BF-010-160
92 630 083 5502 ACCESSORY,WIRING 1 805BF-010-162
93 630 083 6158 ACCESSORY,WIRING 1 805BF-010-163
166
MODEL TIM-5200F/R
0307-001
電源部 POWER SUPPLY SECTION

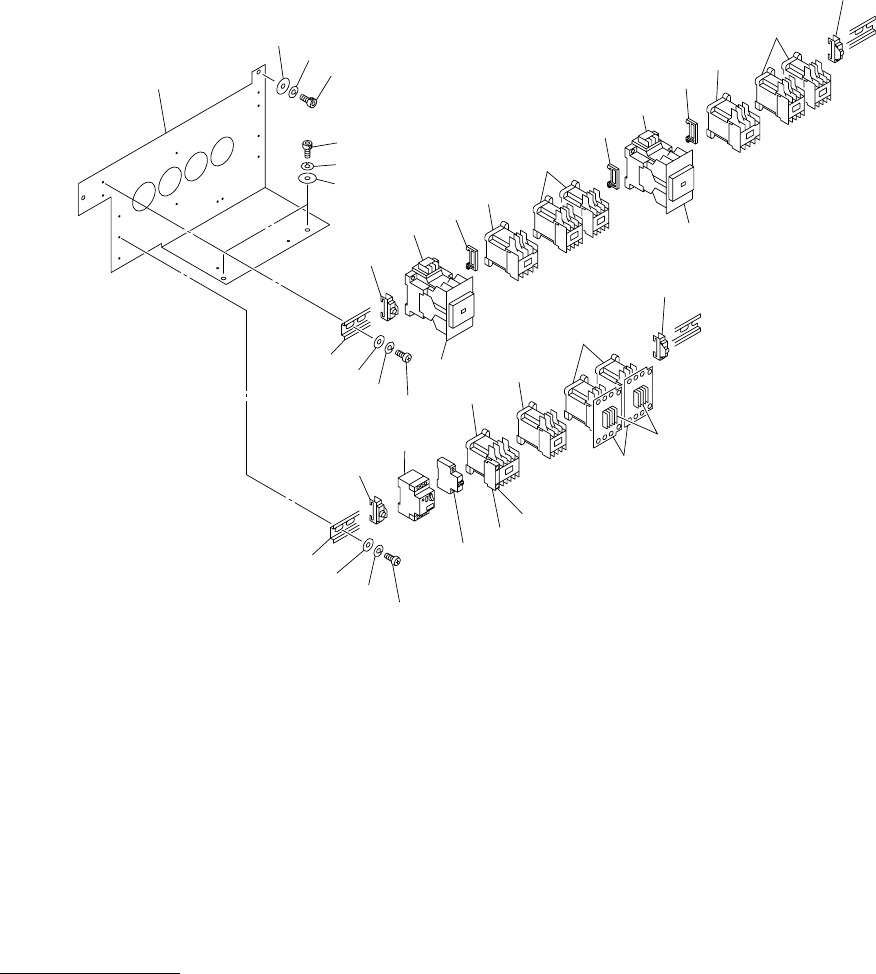

Fig. BF-2 電源２ レイアウト（１） Power Supply 2 Layout (1)
162
.
158
.
157
186
136
137
138
193
136
137
138
153
198
154
156
176
161
160
198
197
197
197
198
167
167
116
117
118
173
116
117
118
158
162
.
168
155
162
.
166
162
.
166
162
198
.
159
162
.
169
162
.
168
162
.
169
.
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
167
MODEL TIM-5200F/R
0307-001
BF-2
116 630 001 0220 WASHER 3 BW5
117 411 141 6705 WASHER SPR 5 3 SW5
118 630 000 7749 BOLT,HEX-SCT 3 M5X10
136 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
137 411 008 1706 WASHER SPR 4 6 SW4 F
138 411 043 5004 SCR PAN 4X8 6 M4X8 PAN
153 630 106 7186 CIRCUIT PROTECTOR 1 Q205 805BG-010-053
154 630 098 9687 CIRCUIT PROTECTOR 1 Q101 805BG-010-054
155 630 053 8601 EM-CONTACTOR 1 KM01 805BG-010-055
156 630 057 2568 EM-CONTACTOR 1 805BG-010-056
157 630 053 8618 EM-CONTACTOR 1 KM03 805BG-010-057
158 407 140 4804 VARISTOR TNR15G470K 2 805BG-010-058
159 630 072 4424 EM-CONTACTOR 2 KM08,KM09 805BG-010-059
160 630 049 2187 EM-CONTACTOR 2 805BG-010-060
161 630 049 2163 COVER 2 805BG-010-151
162 630 100 1357 COMP,CR 13 805BG-010-152
166 630 114 7734 EM-CONTACTOR 2 KM111A,KM111B 641BG-11D-760
167 630 114 7772 COVER 2 641BG-11D-761
168 630 067 0639 EM-CONTACTOR 2 KM112A,KM112B 805BG-010-762
169 630 053 8588 EM-CONTACTOR 4 KM113A,KM114A,KM113B,KM114B
805BG-010-763
173 630 120 3157 PANEL 1 805BG-010-076
176 630 069 9579 COVER 1 805BG-010-451
186 630 089 6565 RAIL,WIRING 1
193 630 089 6756 RAIL,WIRING 1
194 630 071 3343 COVER 4 805BG-010-554
197 630 000 1273 ACCESSORY,WIRING 3 805BG-010-754
198 630 000 1051 BRACKET,WIRING 4 805BG-010-755
