Key No. P A R T No. P AR T NAME Q’ t y REMARKS NOTE 187 MODEL TIM-5200F/R 0307-001 BP-1 51 630 120 4260 CORD 1 XCN21-XCN161,162 805BP-010-051 52 630 120 4277 CORD 1 XCN22-XCN163,164 805BP-010-052 53 630 120 4284 CORD 1 X…
186
MODEL TIM-5200F/R
0307-001
本体配線部 MACHINE WIRING SECTION

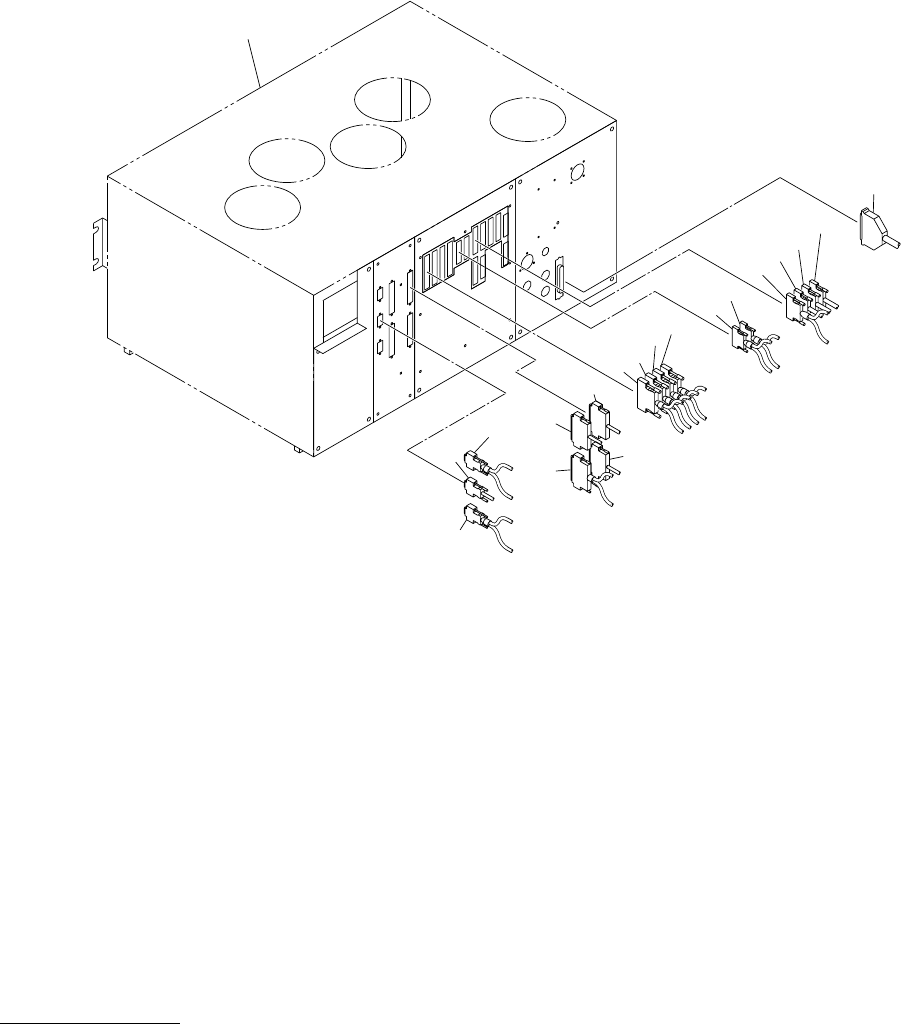

Fig. BP-1 制御ボックスへの配線 Wiring to Control Box
51
52
53
54
55
56
57
58
64
60
61
71
65
72
81
82
84
83
See Fig.BC-1
Key No.71
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
187
MODEL TIM-5200F/R
0307-001
BP-1
51 630 120 4260 CORD 1 XCN21-XCN161,162 805BP-010-051
52 630 120 4277 CORD 1 XCN22-XCN163,164 805BP-010-052
53 630 120 4284 CORD 1 XCN23-XCN165 805BP-010-053
54 630 070 5843 CORD 1 XCN24- 805BP-010-054
55 630 070 5850 CORD 1 XCN25-XCN105 805BP-010-055
56 630 070 5867 CORD 1 XCN26-XCN108 805BP-010-056
57 630 070 5874 CORD 1 XCN27-XCN111 805BP-010-057
58 630 070 7366 CORD 1 XCN28-XCN114 805BP-010-058
60 630 120 4291 CORD 1 XCN31-XCN166,167 805BP-010-060
61 630 120 4307 CORD 1 XCN32-XCN168,169 805BP-010-061
64 630 072 0075 CORD 1 XCN73-XCN154 805BP-010-064
65 630 120 4406 CORD 1 XCN75-XCN164 805BP-010-065
71 630 121 9172 CORD 1 XCN83-XCN401 805BP-010-151
72 630 120 4413 CORD 1 XCN84-XCN402 805BP-010-152
81 630 083 4888 CORD 1 XCN201A- 805BP-010-351
82 630 083 4918 CORD 1 XCN201B- 805BP-010-352
83 630 073 0784 CORD 1 XCN203A- 805BP-010-451
84 630 120 8107 CORD 1 XCN203B- 805BP-010-452
188
MODEL TIM-5200F/R
0307-001
制御ボックス配線部 CONTROL BOX WIRING SECTION
Fig. BQ-1 制御ボックス配線（１） Control Box Wiring (1)
See Fig.BC-1
Key No.51
58
56
57
55
51
52
59
54
53
55
56
57
58
59
51
60
54
53
52
See Fig.BC-5
Key No.462
See Fig.BC-1
Key No.71
