202 MODEL TIM-5200F/R 0307-001 固定認識カメラ小視野 FIXED RECOGNITION CAMERA CM-5003 Small V iew CM-5003 Fig. UB-1 See Fig B-4 Key No.351 See Fig B-4 Key No.301 See Fig B-4 Key No.352 53 See Fig B-4 Key No.302 See Fig B-4 Key No.3…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
201
MODEL TIM-5200F/R
0307-001
S-1
1 630 069 5816 AIR LINE EQPT 80 805S--010-201
2 630 082 1895 MECH PARTS (BOX) 2 805S--010-202
5 630 075 9334 ASSY,NOZZLE 2 805SA-010-001
6 630 075 9341 ASSY,NOZZLE 2 805SA-010-002
7 630 075 9358 ASSY,NOZZLE 2 805SA-010-003
8 630 075 9365 ASSY,NOZZLE 2 805SA-010-004
11 630 075 8481 PIN,LOCATE 20 805SA-010-101
12 630 076 6691 TOOL,HAND 1 805SA-010-202
13 630 073 0036 PLATE 1 805SA-010-301
54 423 022 8203 FUSE 250V 3.15A 2 805S--010-054
55 423 025 1904 FUSE 250V 1.6A 2 805S--010-055
56 423 022 8005 FUSE 250V 1A 2 805S--010-056
57 423 022 8104 FUSE 250V 2A 2 805S--010-057
58 423 025 5100 FUSE 250V 4A 2 805S--010-058
59 423 022 8302 FUSE 250V 5A 2 805S--010-059
60 423 025 2109 FUSE 250V 6.3A 2 805S--010-060
61 423 027 3500 FUSE 250V0.315A 1 805S--010-061
63 630 054 9676 MECH PARTS 1 805S--010-153
202
MODEL TIM-5200F/R
0307-001

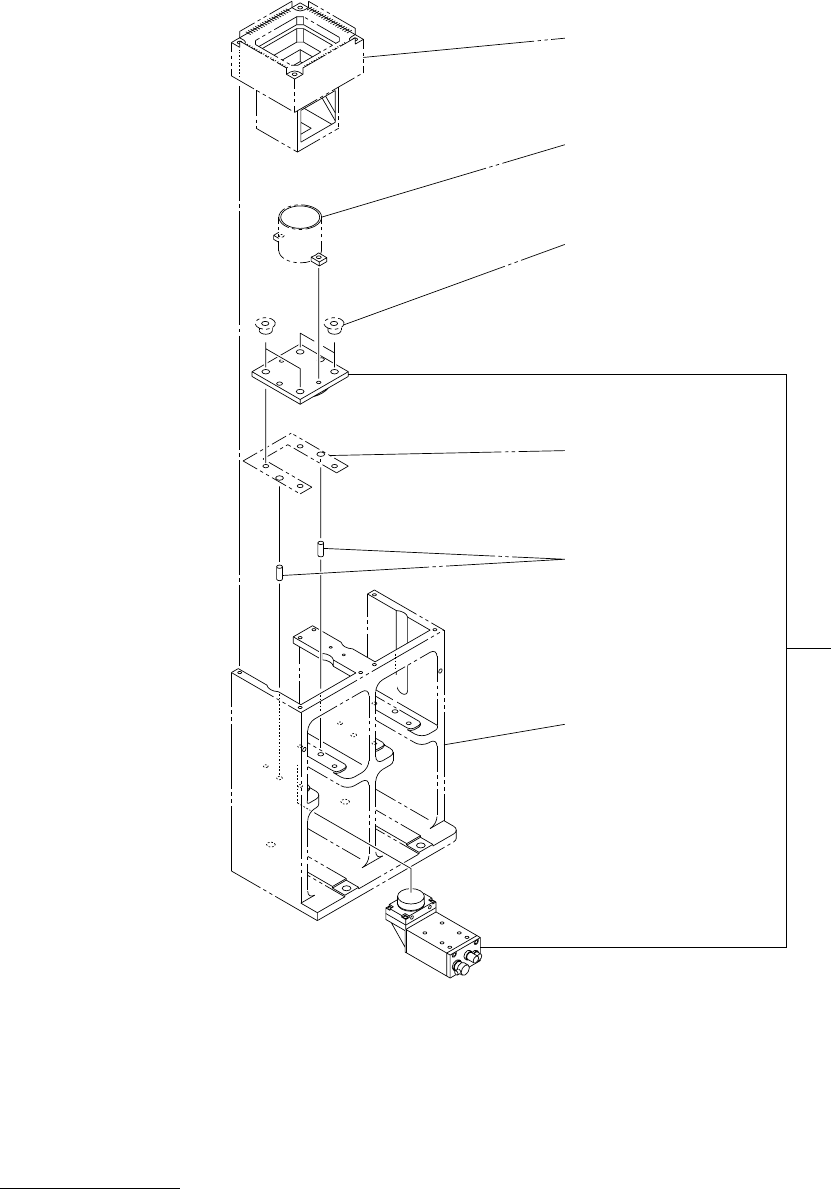

固定認識カメラ小視野 FIXED RECOGNITION CAMERA
CM-5003 Small View CM-5003
Fig. UB-1
See Fig B-4
Key No.351
See Fig B-4
Key No.301
See Fig B-4
Key No.352
53
See Fig B-4
Key No.302
See Fig B-4
Key No.306
See Fig B-4
Key No.303
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
203
MODEL TIM-5200F/R
0307-001
UB-1
53 630 118 2759 ASSY,SCOPE UNIT 1 CAM-A1 or A2 or B1 or B2,#KDS-165U
676UB-11D-053
