Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 51 MODEL TIM-5200F/R 0307-001 MB-2 2 unit/1 machine 101 630 068 9143 MOTOR,STEPPING 1 -MPM01(ZA1),(ZB1),#M9518A01 805MB-010-101 102 630 080 4294 GUIDE,LINEAR 1 805MB-010-…
50
MODEL TIM-5200F/R
0307-001
異形ヘッドＬ部 DEFORM HEAD L SECTION
Fig. MB-2 ＤＤモータ部 DD Motor Section
123
108
109
121
112
111
121
110
107
106
105
101
176
177
178
122
113
175
177
179
176
177
178
171
172
173
104
103
102
181
182
183
175
177
178
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
51
MODEL TIM-5200F/R
0307-001
MB-2 2 unit/1 machine
101 630 068 9143 MOTOR,STEPPING 1 -MPM01(ZA1),(ZB1),#M9518A01
805MB-010-101
102 630 080 4294 GUIDE,LINEAR 1 805MB-010-102
103 630 068 8252 HOLDER 1 805MB-010-103
104 630 068 8474 SPRING,COMP 1 805MB-010-104
105 630 082 1475 PLATE 1 805MB-010-105
106 630 074 8017 SPRING,COMP 1 805MB-010-106
107 630 120 1559 BLOCK 1 805MB-010-107
108 630 120 1566 PLATE 1 805MB-010-108
109 630 120 1597 BOLT 1 805MB-010-109
110 630 082 1468 PLATE 1 805MB-010-110
111 630 068 4391 BLOCK 1 805MB-010-111
112 630 069 0538 PIPE FITTINGS 1 805MB-010-112
113 630 068 4407 BLOCK 1 805MB-010-113
121 630 048 0849 SEAL 2 805MB-010-121
122 630 078 7719 BOLT 1 805MB-010-122
123 630 000 8487 BOLT,HEX-SCT 4
171 411 141 4008 WASHER V 4X9X0.8 2 FW4
172 411 141 2905 WASHER SPR 4 2 SW4
173 630 000 7664 BOLT,HEX-SCT 2 M4X20
175 411 141 5807 WASHER F 3X6X0.5 4 FWS3
176 411 141 3902 WASHER V 3X7X0.5 4 FW3
177 411 141 2806 WASHER SPR 3 8 SW3
178 630 000 7527 BOLT,HEX-SCT 4 M3X10
179 630 000 7558 BOLT,HEX-SCT 4 M3X16
181 411 141 5708 WASHER F 2.5X5X0.5 2 FWS2.5
182 411 141 6606 WASHER SPR 2.5 2 SW2.5
183 630 013 8924 BOLT,HEX-SCT 2 M2.5X10
52
MODEL TIM-5200F/R
0307-001
異形ヘッドＬ部 DEFORM HEAD L SECTION

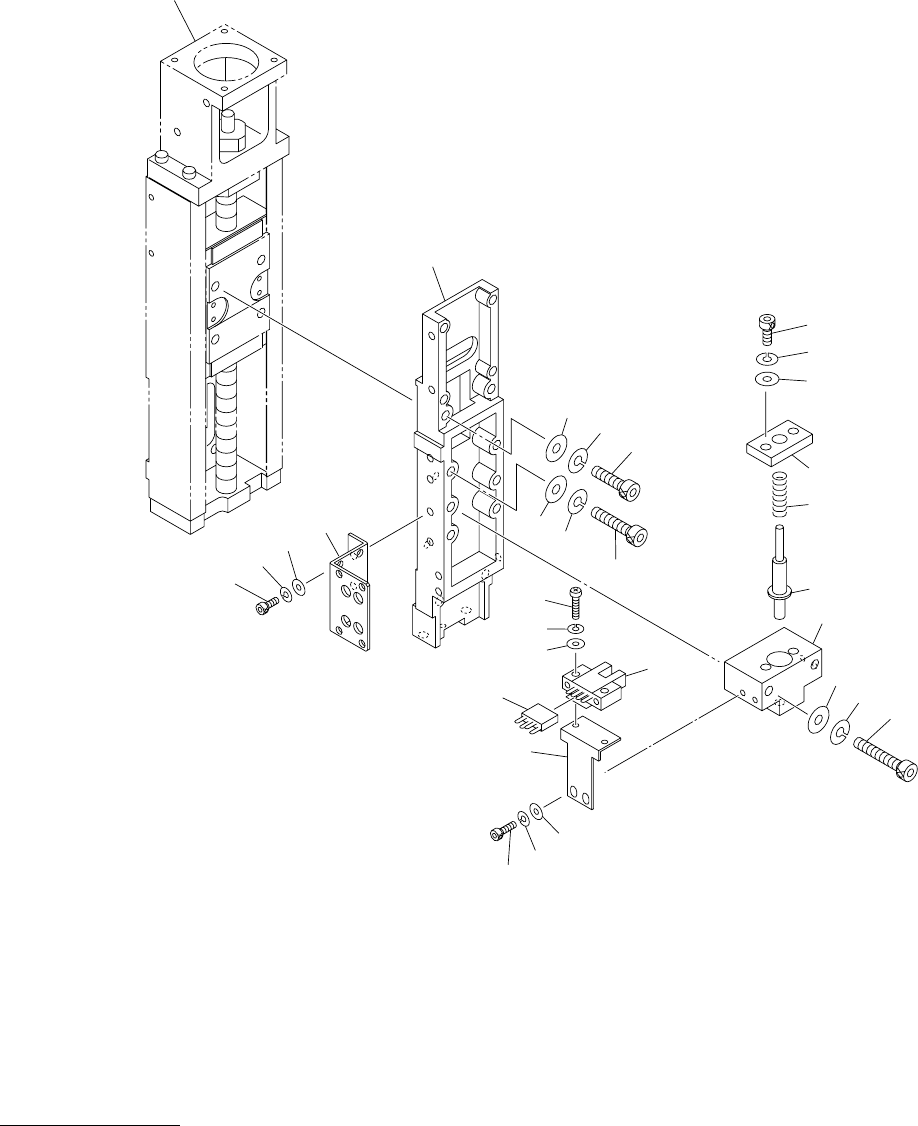

Fig. MB-3 ノズルレベル検出部 Nozzle Level Detector
273
272
271
204
202
205
203
266
267
270
211
276
279
277
201
See Fig.MB-1
Key No.1
276
278
277
216
266
267
268
266
267
288
287
286
221
222
269
