Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 69 MODEL TIM-5200F/R 0307-001 MC-4 2 unit/1 machine 301 630 000 0245 SENSOR,PHOTO 6 -BPH121-126(LA2),(LB2),EE-SX670 805MC-010-301 302 630 000 0269 SENSOR,PHOTO(CONNECT OR…
68
MODEL TIM-5200F/R
0307-001
異形ヘッドＲ部 DEFORM HEAD R SECTION

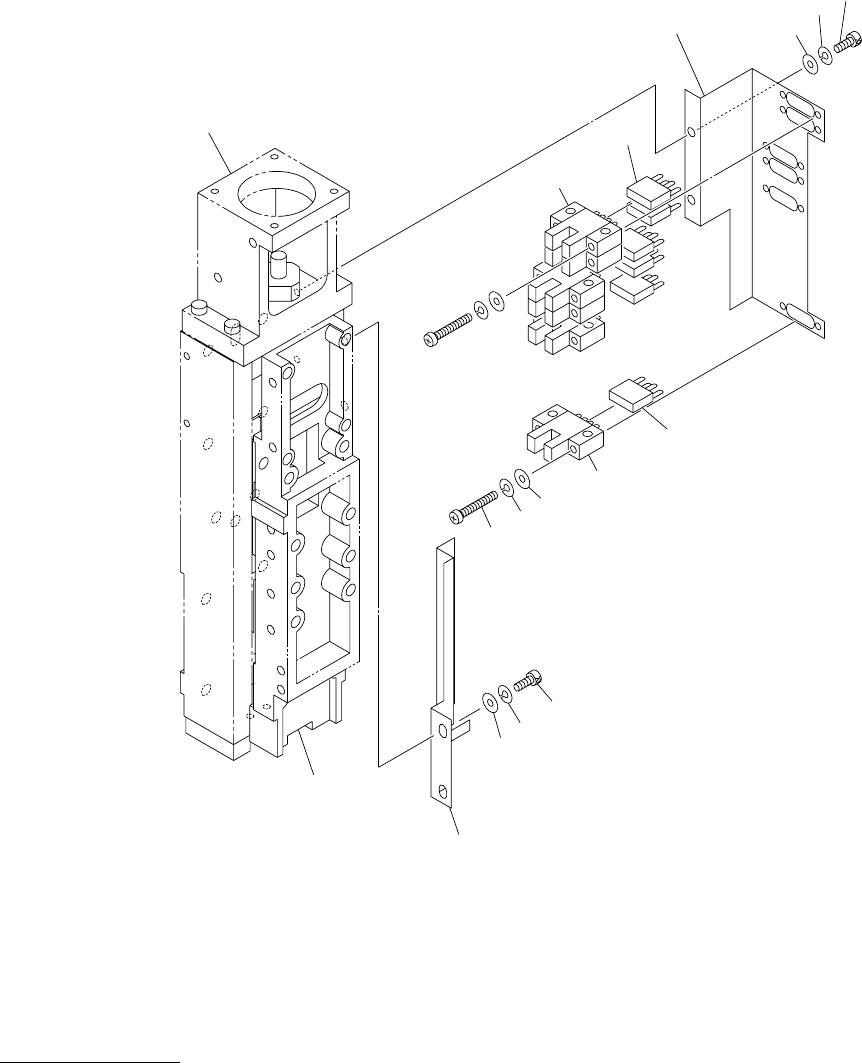

Fig. MC-4 Ｌ軸レベル検出部 L Axis Level Detector
See Fig.MC-1
Key No.1
See Fig.MC-3
Key No.201
376
386
387
388
301
301
302
304
377
378
303
376
377
378
302
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
69
MODEL TIM-5200F/R
0307-001
MC-4 2 unit/1 machine
301 630 000 0245 SENSOR,PHOTO 6 -BPH121-126(LA2),(LB2),EE-SX670
805MC-010-301
302 630 000 0269 SENSOR,PHOTO(CONNECTOR) 6 805MC-010-302
303 630 120 1689 PLATE 1 805MC-010-807
304 630 120 1696 BRACKET 1 805MC-010-808
376 411 141 3902 WASHER V 3X7X0.5 4 FW3
377 411 141 2806 WASHER SPR 3 4 SW3
378 630 000 7510 BOLT,HEX-SCT 4 M3X8
386 411 119 1909 WASHER V 3X7X0.5 12 FW3 F
387 411 086 4408 WASHER SPR 3 12 SW3 F
388 411 162 1604 SCR PAN 3X20 12 M3X20 PAN
70
MODEL TIM-5200F/R
0307-001
異形ヘッドＲ部 DEFORM HEAD R SECTION
Fig. MC-5 ノズルクランプ部 Nozzle Clamp Section
409
410
402
405
410
406
412
411
407
409
408
409
410
408
409
410
405
409
410
402
409
403
401
403
404
408
409
410
404
408
409
410
410
