Key No. PART No. PART NAME Q’ty REMARKS
NOTE
88
MODEL TIM-5200F/R
0307-001
N-4
350 630 083 6813 PULLEY,FLAT 2 805N--010-120
351 411 141 4305 WASHER V 6X12.5X1.6 12 FW6
352 411 141 3001 WASHER SPR 6 18 SW6
353 630 001 0237 WASHER 6 BW6
354 630 000 7893 BOLT,HEX-SCT 6 M6X20
355 630 000 7886 BOLT,HEX-SCT 8 M6X16
356 630 000 7879 BOLT,HEX-SCT 4 M6X12
361 411 141 4107 WASHER V 5X10X1 24 FW5
362 411 141 6705 WASHER SPR 5 24 SW5
363 630 000 7831 BOLT,HEX-SCT 10 M5X50
364 630 000 7770 BOLT,HEX-SCT 4 M5X20
365 630 000 7763 BOLT,HEX-SCT 2 M5X16
366 630 000 7732 BOLT,HEX-SCT 2 M5X8
367 630 000 8951 SET SCREW 10 M5X8 SET
368 411 141 0505 NUT HEX 5 6 M5
371 411 141 4008 WASHER V 4X9X0.8 14 FW4
372 411 141 2905 WASHER SPR 4 14 SW4
373 630 000 7664 BOLT,HEX-SCT 4 M4X20
374 630 000 7657 BOLT,HEX-SCT 4 M4X16
375 630 000 7626 BOLT,HEX-SCT 6 M4X10
376 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
377 411 141 0307 NUT HEX 4 8 M4
381 411 141 3902 WASHER V 3X7X0.5 14 FW3
382 411 141 2806 WASHER SPR 3 14 SW3
383 630 000 7510 BOLT,HEX-SCT 14 M3X8
384 630 000 8883 SET SCREW 4 M3X4 SET
394 411 141 4701 WASHER V 10X21X2 4 FW10
395 411 141 3209 WASHER SPR 10 4 SW10
396 411 141 1106 NUT HEX 10 4 M10
397 411 000 7300 RING C 12 1
398 411 000 7805 RING C 20 2
MEMO
90
MODEL TIM-5200F/R
0307-001
コンベア部 CONVEYOR SECTION

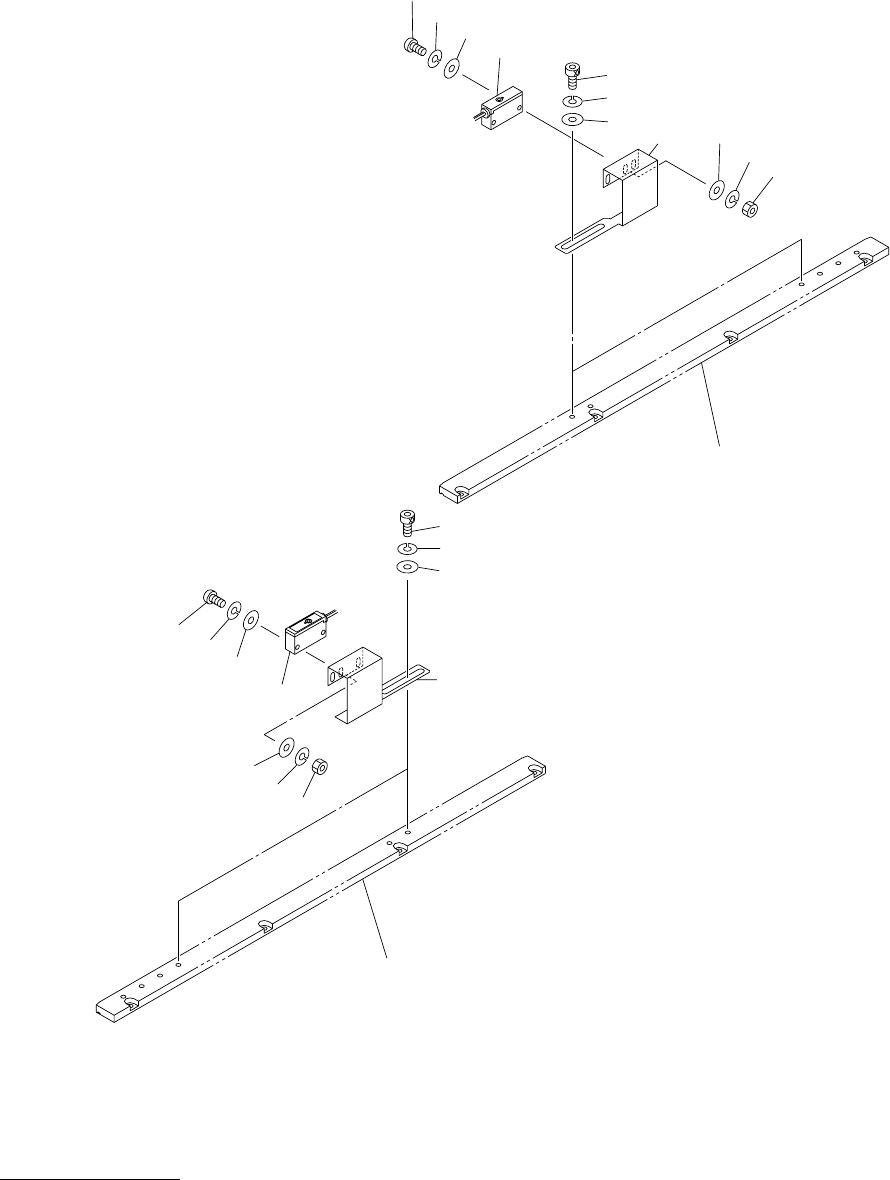

Fig. N-5 位置決めシュ－ト Locating Chute
403
486
487
490
489
487
486
401
413
411
486
487
489
472
471
474
486
472
474
471
487
490
See Fig.N-4
Key No.328
See Fig.N-3
Key No.228
