Dirt can accumulate here on older cameras.
Difficulty accessing the sensor means that you may possibly be unable to clean it properly if it has
already become dirty. You may, however, be able to remove any dust using a vacuum cleaner nozzle
at the aperture slits.
To prevent it becoming dirty again, cover the slits with adhesive tape.
ASMPT GmbH & Co KG
Rupert-Mayer-Straße 48
81379 Munich, Germany
Subject to change without notice
TI2024-03E09.doc
09.04.2025
Page 12 - 18
ENABLING THE DIGITAL WORLD
4.6 Cleaning the stationary cameras SST33G (03260419-xx) and SST53
The construction of the SST33G (03260419-xx) is basically identical to that of the above-mentioned
types of stationary camera.
The splitting mirror can be cleaned as described above for the SST33.
In this case, the area between the lens assembly and the camera is also sealed.
The camera must not be released from the lens assembly and the sealing must not be removed.
You can clean the lens of the optics module from the top.
Sealing
ASMPT GmbH & Co KG
Rupert-Mayer-Straße 48
81379 Munich, Germany
Subject to change without notice
TI2024-03E09.doc
09.04.2025
Page 13 - 18
ENABLING THE DIGITAL WORLD
4.7 Cleaning the stationary camera SST56
The construction of the SST56G (03271606-xx) is basically identical to that of the above-mentioned
types of stationary camera.
The splitting mirror can be cleaned as described above for the SST33.

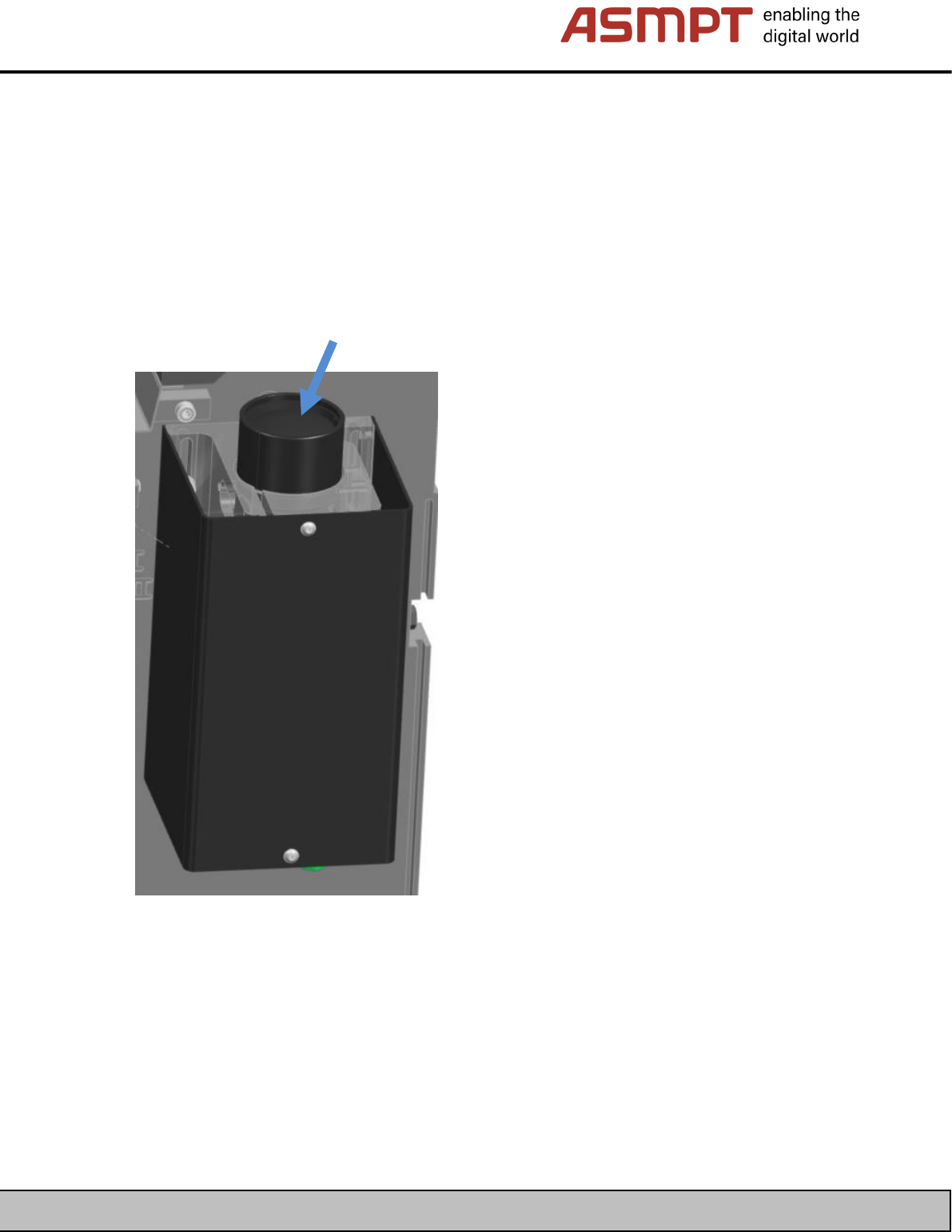

The area of the camera with the lens assembly is covered by a protective shield which also seals the
area against contamination.
You can clean the lens of the optics module from the top.
