Chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Multi-Functional Placer
SM482PLUS Maintenance Handbook
1-4
Common Working Procedure before Maintenance
Conditions for Maintenance
1. Press the 'MODE' button
Select JOG
2. Press the 'AXIS' button
Select XY
4. Backward movement of the X-frame
3. Press the 'Direction' button
Press the Key
Keeppressingthe'▲'key
until the X-frame move to
the desired position.
4. Backward movement of
the X-frame
Chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Multi-Functional Placer
SM482PLUS Maintenance Handbook
1-5
Common Working Procedure before Maintenance
1. Power supply procedure
Step 1.
Main Switch On
- Power supply turned off - Power supply turned on
2. Home
Step 1.
Press the machine's 'Ready' button
1
Step 2.
Perform homing by clicking the <Home> button
2
When the machine is in 'Ready' state, it can be returned to the
origin.(homing)
Common Working Procedure before Maintenance
Chapter 1
This Chapter describes the work environment and working tools for the maintenance of
the machine.
Conditions for Maintenance
Multi-Functional Placer
SM482PLUS Maintenance Handbook
1-6
Common Working Procedure before Maintenance
Conditions for Maintenance

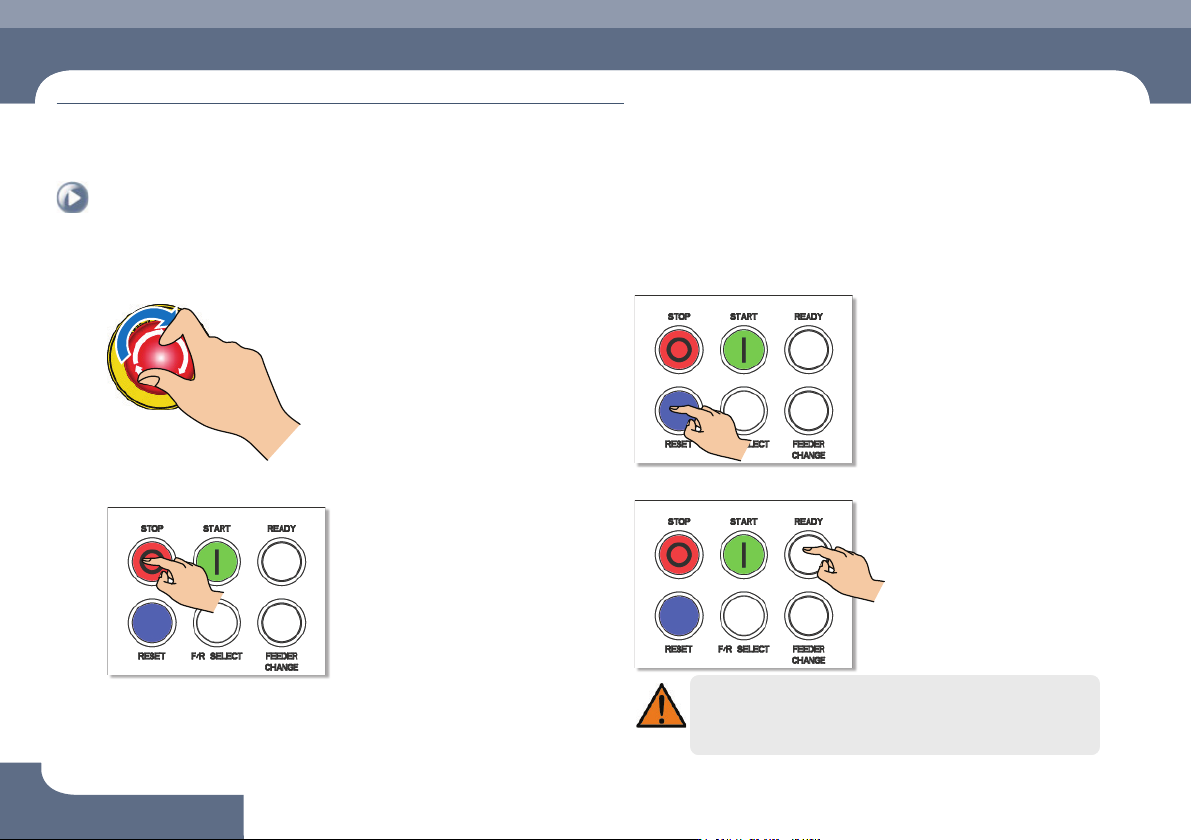

3. Releasing 'Emergency Stop' mode
Step 1.
Press the 'EMG' button
Step 2.
Press the 'STOP' button
Step 3.
Press the 'RESET' button
Step 4.
Press the 'READY' button
Warning
Perform checking with the power supply to the motor cut off
without fail.
