Chap ter 2 Inspe ction It ems fo r Main t e nanc e Multi -Func tional Placer SM482PLUS Maintenance Handbo ok 2-8 Monthly Inspections (2/2) Inspection It ems for Maint enanc e
Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
SM482PLUS Maintenance Handbook
2-7
Monthly Inspections (2/2)
Check-up List
Maintenance Cycle Grease Spec.
Time
required
Period No Inspection Item Measures Tools
Monthly
M-5
Head Ball Spline, LM
Guide, Mirror CAM
Clean and apply grease
Ultra-fine fiber cloth, Flat
Brush, Syringe
Apply grease period: 3 months
Ball Spline : AFF-70
LM Guide Rail, Mirror CAM
: GADUS S2 V220-2
30 Minutes
M-6
X Frame LM Guide,
Ball Screw
Clean and Lubrication
Utra-fine fiber cloth,
Lubricator
Lubrication period: 4 months AFE-CA 60 Minutes
M-7 Y Frame LM Guide Clean and Lubrication
Utra-fine fiber cloth,
Lubricator
Lubrication period: 2 months AFE-CA 60 Minutes
M-8 Y Frame Ball Screw Clean and Lubrication
Utra-fine fiber cloth,
Lubricator
Lubrication period: 2 months AFE-CA 20 Minutes
M-9
X Axis, Y Axis Flat
Cable
Inspect and apply grease Utra-fine fiber cloth Apply grease period: 3 months KS-63W 20 Minutes
M-10
Conveyor LM Guide,
Lead Screw
Cleaning, apply grease,
Lubrication
Utra-fine fiber cloth, Flat
Brush, Lubricator
Apply grease period: 2 months GADUS S2 V220-2 30 Minutes
M-11 Cover Cleaning
Utra-fine fiber cloth,
Ethyl alcohol, Heavy Duty
Staticide #2005, #2001
Inspection period: 1 months 15 Minutes
Setting the replacement period for parts
ㆍ The part inspection and replacement interval shall be set up based on the specified operation environment.
ㆍ If the conditions for operation are poor, the part inspection and replacement interval may be reduced.
ㆍ In the above table, C/S means our designated C/S company or our overseas local agents.
ㆍ Consumables should be purchased for a fee, regardless of the warranty period.
Monthly Inspections (2/2)
Chapter 2
Inspection Items for Maintenance
Multi-Functional Placer
SM482PLUS Maintenance Handbook
2-8
Monthly Inspections (2/2)
Inspection Items for Maintenance
SM482PLUS Maintenance Handbook
3-1
Chapter 3
Daily Inspection
Multi-Functional Placer

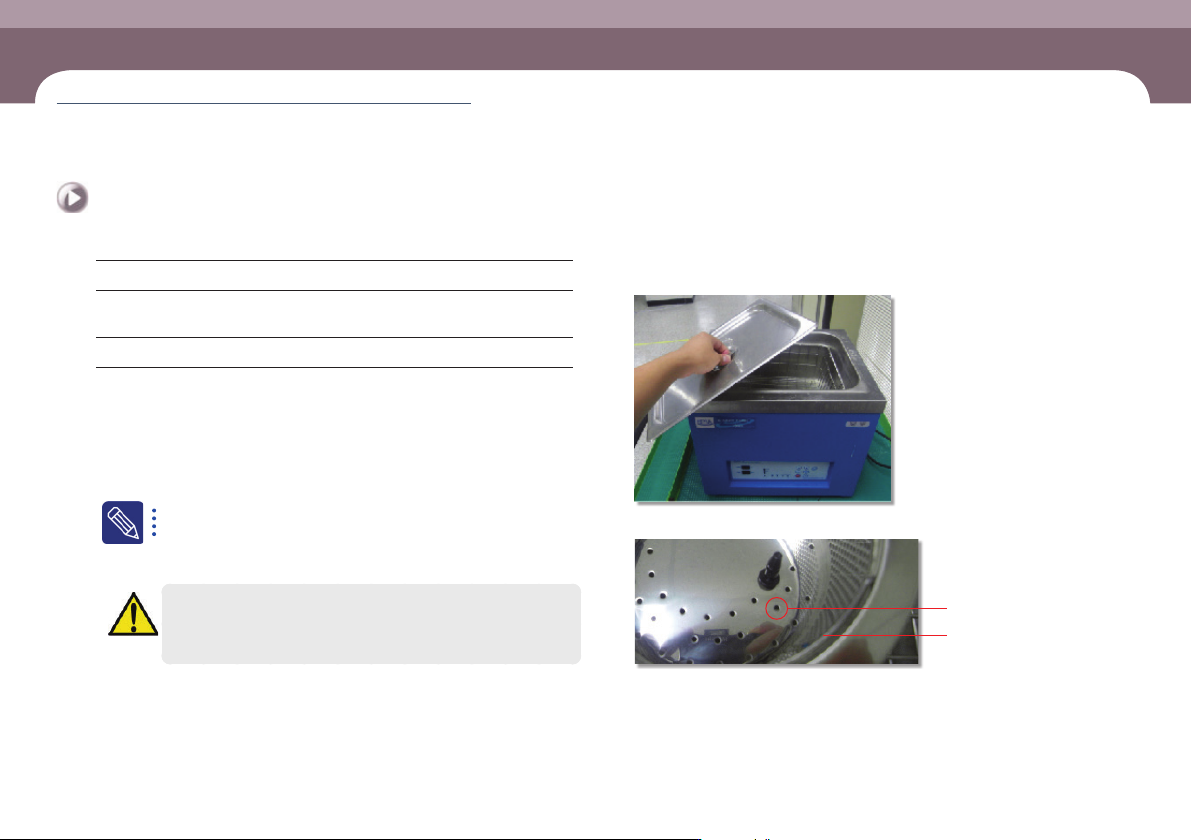

Checking and cleaning the nozzle
Chapter 3
Daily Inspection
Prevent PCB defect due to nozzle clogging and breaking
Tool for Maintenance
Recommended Cleaning solution: Ethyl alcohol, Air gun, Lubricating oil for nozzle:
Tri-Flow, Spray straw, Bore through-pin, Ultrasonic cleaner
Measures
Step 1.
Move the X Frame to front by referring to “Forward
movement of the X-frame” on page 1-3.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to “How to perform emergency stop” on page
1-2.
Step 3.
Remove the head assembly and ANC nozzles manually
Caution
Remember the ANC nozzle arrangement before removing them
manually. After cleaning, arrange the nozzles on the ANC as they
were before cleaning and lubricating.
Step 4.
Open the cover of the ultrasonic cleaner.
Step 5.
Insert the nozzles in the hole.
Nozzle Insertion hole
Nozzle net
Checking and cleaning the nozzle
(Time required: 10min / No. D-1)
