SM482PLUS Maintenance Handbo ok 3-5 Chap ter 3 Daily Inspe ction Multi -Func tional Placer Cleaning the Dump Box Prevent defective parts from filling the dump box and spilling over into the machine. Measures Step 1. Move…
SM482PLUS Maintenance Handbook
3-4
Chapter 3
Daily Inspection
Multi-Functional Placer
Checking and cleaning the nozzle
Daily Inspection
Caution
Use only the required amount of lubricating oil. If insufficient
lubricating oil is applied, the nozzle will not operate smoothly.
If too much lubricating oil is applied, it may lump together with
foreign materials causing defective pickup.
Step 12.
Release the emergency stop as described in “Releasing
‘Emergency Stop’ mode” on page 1-6 and perform the
operation again.
SM482PLUS Maintenance Handbook
3-5
Chapter 3
Daily Inspection
Multi-Functional Placer
Cleaning the Dump Box
Prevent defective parts from filling the dump box and spilling over into the machine.
Measures
Step 1.
Move the X Frame to rear by referring to “Backward
movement of the X-frame” on page 1-4.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to “How to perform emergency stop” on page
1-2.
Step 3.
Empty the dump box of defective parts.
①Lifting dump box
②Empty the dump box of defective parts
Step 4.
Release the emergency stop as described in “Releasing
‘Emergency Stop’ mode” on page 1-6 and perform the
operation again.
Caution
Remove the part that dropped down without being put in the
dump box.
Caution
When reinstalling the dump box, install it so that the dump box
detection sensor can detect the dump box.
Cleaning the Dump Box
(Time required: 5min / No. D-2)
SM482PLUS Maintenance Handbook
3-6
Chapter 3
Daily Inspection
Multi-Functional Placer
Cleaning the feeder and feeder base
Daily Inspection
Cleaning the feeder and feeder base can prevent feeder installation error and
defective contact of the connector.
Tool for Maintenance
Brush
Measures
Step 1.
Move the X Frame to rear by referring to “Backward
movement of the X-frame” on page 1-4.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to “How to perform emergency stop” on page
1-2.

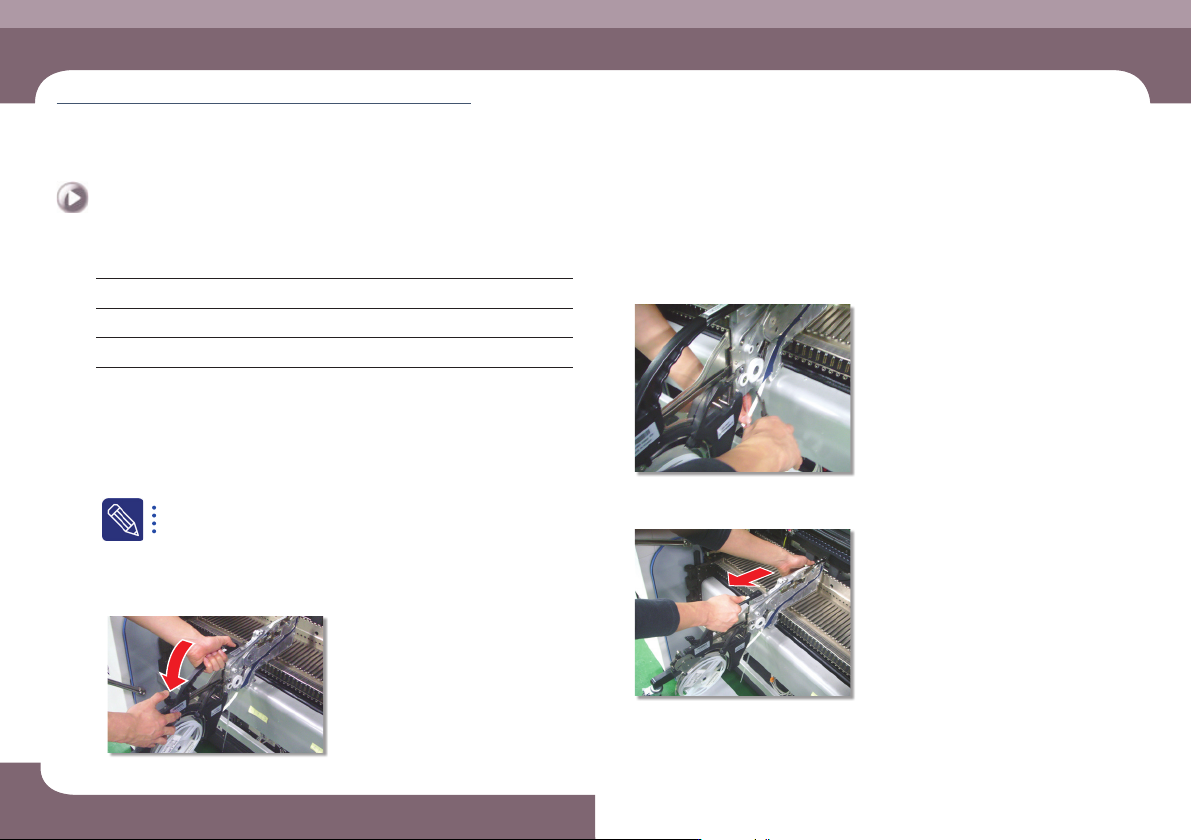

Step 3.
Remove the feeder from the feeder base.
①Pull the grip back
②Remove the cover tape
③Remove the feeder
Cleaning the feeder and feeder base
(Time required: 10min / No. D-3)
