Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-2
Cleaning the Head Spindle
Monthly Inspection
Step 5.
Put the cloth underneath the spindle
Step 6.
Inject the alcohol into the hole of the one touch fitting
of the spindle
Caution
Clean the spindle using a small amount of alcohol if it has been
significantly contaminated.
Using an excessive amount of alcohol may cause problems for the
spindle.
Step 7.
Cleaning the interior of the tube by an air gun.
Caution
Using the air gun without putting on goggles may cause injury to
operator's eyes. Be sure to wear goggles when using the air gun.
Step 8.
Release the emergency stop as described in “Releasing
‘Emergency Stop’ mode” on page 1-6 and perform the
operation again.
Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-3
Checking and Cleaning the Conveyor Sensor, Fiducial Mark
Checking and Cleaning the Conveyor Sensor, Fiducial
Mark
Tool for Maintenance
Cleaning liquid, Cotton Swab, Ultra fine fiber cloth
Measures
Step 1.
Move the X Frame to rear by referring to “Backward
movement of the X-frame” on page 1-4.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to “How to perform emergency stop” on page
1-2.
Step 3.
Check the recognition accuracy of the corresponding
photo sensor as shown in the following figure. (The red
LED is turned on when an object is recognized.)
P C B O UT
P C B I N
Step 4.
Clean the sensor window and fiducial mark with a swab
and an ultra-fine fiber cloth.
Remove the dust or foreign material on the sensor window using the
cotton swab or clean cloth
Step 5.
Release the emergency stop as described in “Releasing
‘Emergency Stop’ mode” on page 1-6 and perform the
operation again.
Caution
When the sensor operates abnormally or has a problem, contact our
C/S company or local agent for adjustment for proper measures
(Time required: 10min / No. M-2)
Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-4

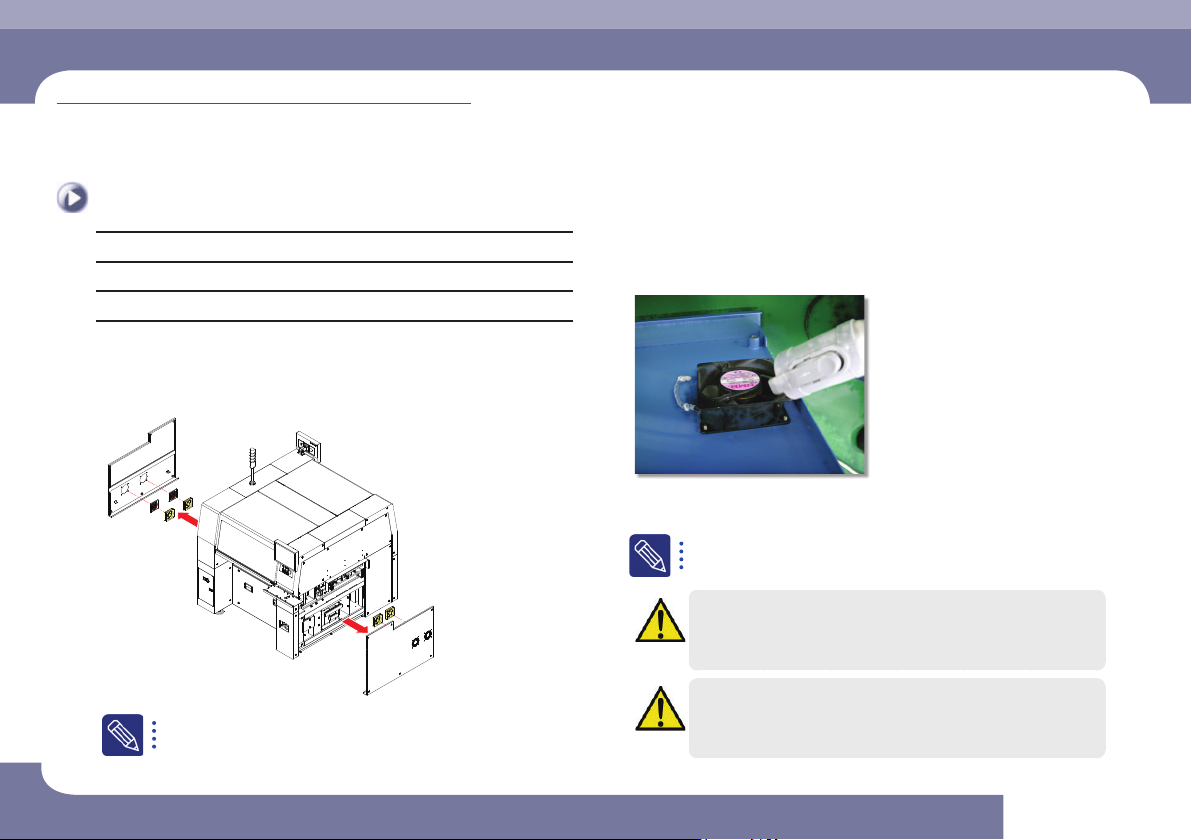

Checking and Cleaning the Cover Cooling Fan
Monthly Inspection
Checking and Cleaning the Cover Cooling Fan
Tool for Maintenance
Vacuum cleaner, Crosshead screwdriver
Measures
Step 1.
Turn off the power supply to the machine as described
ino “How to turn off the power supply” on page 1-1.
Step 2.
Remove the cover on the left and right side of the
machine using a crosshead screwdriver.
If there is not enough space for fan removal since the machine is
configured in line with a machine by its side, clean the filter and fan
using an air gun without removing them.
Step 3.
Clean the cooling fans using a vacuum cleaner.
Step 4.
Turn on the main switch after cleaning to check the
noise and movement of the cooling fan.
If abnormal noise and operational problem still occur, turn off the
main switch again and replace the cooling fan.
Caution
When the main switch is turned on, since the cooling fan operates,
user's hand may get injured. Careless touching of the cable, etc.
may cause electric shock. Therefore, special care is need.
Caution
The cooling fan replaement work accomanies a danger.
Therefore, contact out C/S company or local agent.
(Time required: 10min / No. M-3)
