Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-4
Checking and Cleaning the Cover Cooling Fan
Monthly Inspection
Checking and Cleaning the Cover Cooling Fan
Tool for Maintenance
Vacuum cleaner, Crosshead screwdriver
Measures
Step 1.
Turn off the power supply to the machine as described
ino “How to turn off the power supply” on page 1-1.
Step 2.
Remove the cover on the left and right side of the
machine using a crosshead screwdriver.
If there is not enough space for fan removal since the machine is
configured in line with a machine by its side, clean the filter and fan
using an air gun without removing them.
Step 3.
Clean the cooling fans using a vacuum cleaner.
Step 4.
Turn on the main switch after cleaning to check the
noise and movement of the cooling fan.
If abnormal noise and operational problem still occur, turn off the
main switch again and replace the cooling fan.
Caution
When the main switch is turned on, since the cooling fan operates,
user's hand may get injured. Careless touching of the cable, etc.
may cause electric shock. Therefore, special care is need.
Caution
The cooling fan replaement work accomanies a danger.
Therefore, contact out C/S company or local agent.
(Time required: 10min / No. M-3)
Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-5
Checking and Cleaning the Cover Cooling Fan Filter
Checking and Cleaning the Cover Cooling Fan Filter
Tool for Maintenance
Vacuum cleaner
Measures
Cooling Fan Filter
Cooling Fan Filter Cover
Step 1.
Remove the filter in the order as shown in the following
figure and clean it. (If the filter is damaged, replace it.)
ㆍ Separate the cooling fan cover
ㆍ Separate the Cooling fan filter
ㆍ Clean the filter using a vacuum
cleaner
Caution
Washing the cooling fan filter with water may cause damage to the
filter by making it harden.
Step 2.
Release the emergency stop as described in “Releasing
‘Emergency Stop’ mode” on page 1-6 and perform the
operation again.
(Time required: 15min / No. M-4)
Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-6

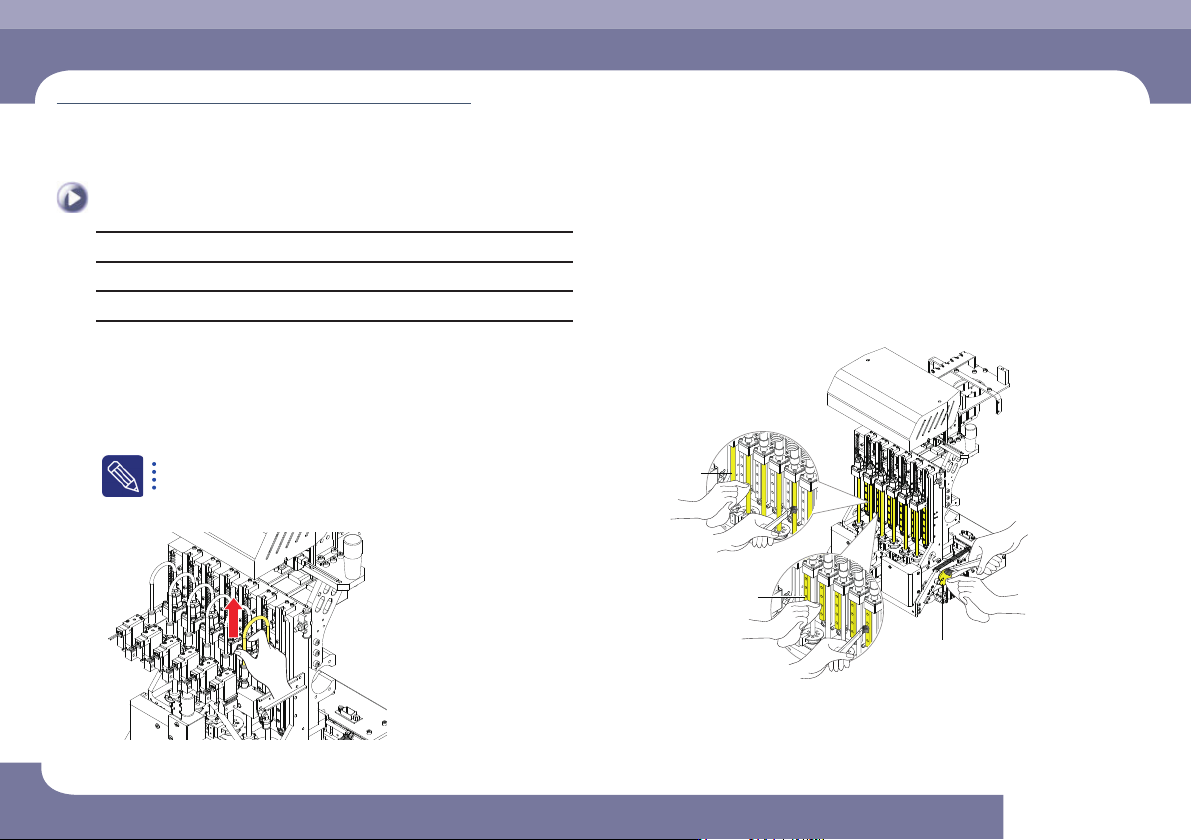

Cleaning and apply grease the Head Ball Spline, LM Guide, Mirror CAM
Monthly Inspection
Tool for Maintenance
Ultra-fine fiber cloth, Flat Brush, Syringe, GREASE: GADUS S2 V220-2, AFF-70
Measures
Step 1.
Move the X Frame to front by referring to “Forward
movement of the X-frame” on page 1-3.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to “How to perform emergency stop” on page
1-2.
Step 3.
Remove the tube from the Vacuum Filter
Step 4.
Apply grease to the LM guide rail using a syringe and
apply grease to the ball spline and the Mirror CAM.
(Ball Spline : AFF-70, LM Guide Rail, Mirror CAM : GADUS S2
V220-2)
S Axis Mirror CAM
Z Axis LM Guide
Ball Spline
Step 5.
Release the emergency stop as described in “Releasing
‘Emergency Stop’ mode” on page 1-6 and perform the
operation again.
Cleaning and apply grease the Head Ball Spline, LM
Guide, Mirror CAM
(Time required: 30min / No. M-5)
