Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-15
Cleaning and apply grease, lubricating the conveyor LM guide, Lead screw
It is possible to prevent deformation of the corresponding section by friction or an
error due to increased temperature.
Tool for Maintenance
Utra-fine fiber cloth, Flat Brush, Lubricator: KH-20, GREASE: GADUS S2 V220-2
Measures
Step 1.
Move the X Frame to rear by referring to “Backward
movement of the X-frame” on page 1-4.
Step 2.
Press the 'STOP' and 'RESET' buttons in order after
pressing the 'EMG' button on the OP panel to stop
operation.
For more details, refer to “How to perform emergency stop” on page
1-2.
Step 3.
Adjust the conveyor width
1
2
3
①Select the <PCB Edit> Menu
②Select the <Borad> Submenu
③Enter 200 (maximum size in the Y direction) in the <7. Board Size> group and
click the <Conv.Width> Button
Cleaning and apply grease, lubricating the conveyor
LM guide, Lead screw
(Time required: 30min /
No. M-10)
Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-16
Cleaning and apply grease, lubricating the conveyor LM guide, Lead screw
Monthly Inspection
Step 4.
Remove dust and foreign material from the Work Station
and Exit Station, as well as the Lead Screw and LM Guide
Rail of the Entry Station using an ultra-fine cloth.
P C B O U T
P C B I N
Step 5.
Apply grease to the Lead Screw using a flat brush.
(GREASE: GADUS S2 V220-2)
P C B O U T
P C B I N
Monthly Inspection
Chapter 5
Multi-Functional Placer
SM482PLUS Maintenance Handbook
5-17
Cleaning and apply grease, lubricating the conveyor LM guide, Lead screw

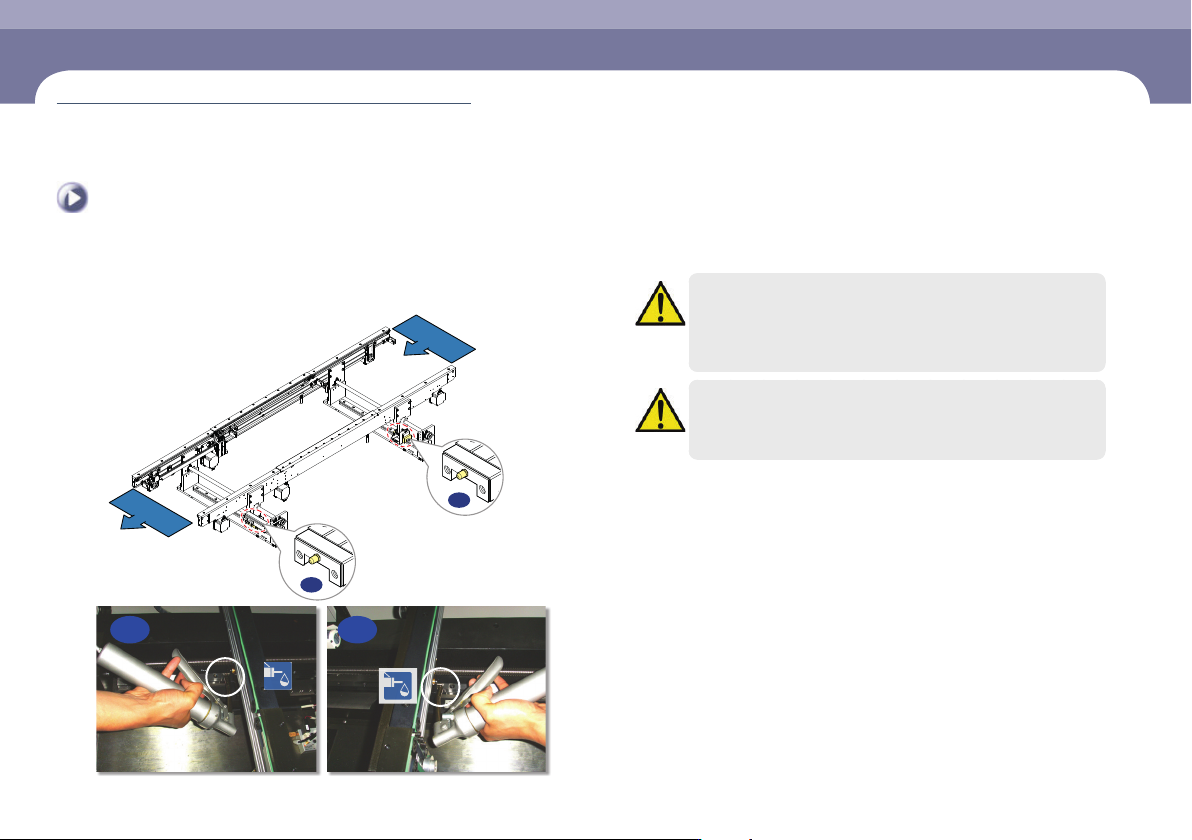

Step 6.
Apply grease to the LM Guide Rail through a nipple
using a lubricator. (GREASE: GADUS S2 V220-2)
P C B O U T
P C B I N
B
A
BA
Caution
The designated grease must be applied using the designated
lubricator in the designated manner. Other lubricating methods are
unacceptable. When you Lubricate the Grease a large amount of
equipment, you can Grease leaves spilled in LM Guide Rail.
Caution
If the machine's operating environment is harsh, check its lubrication
status frequently.
