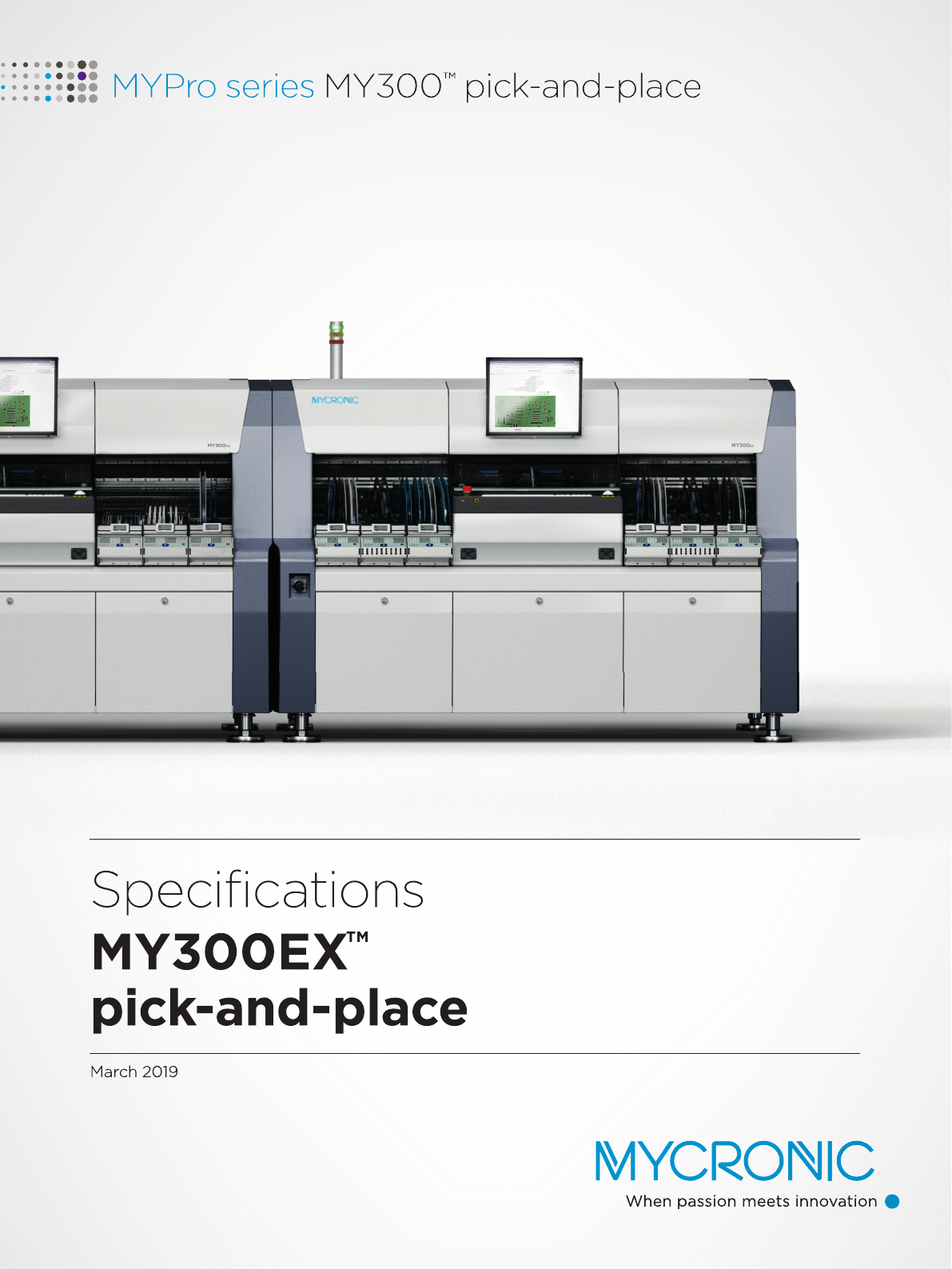

March 2019
MYPro series MY300
™
pick-and-place
Specifi cations
MY300EX
™
pick-and-place
March 2019
MYPro series
MY300
™
pick-and-place
Specifi cations
MY300EX
™
pick-and-place
MYPro series specification – MY300EX
PLACEMENT SPEED AND ACCURACY SYSTEM FEATURES
PLACEMENT SPEED AND ACCURACY – MY300EX-9/13
Rated speed
(1)
11 000 CPH
IPC 9850 chip net throughput
(2, 3)
10 000 CPH
IPC 9850 chip tact time
(3)
0.36 s
IPC 9850 chip repeatability 3 (X, Y, Theta)
(3)
30 μm, 1.8°
IPC 9850 chip accuracy @ Cpk = 1.33 (X, Y, Theta)
(5)
50 μm, 2.6°
IPC 9850 fine pitch repeatability 3
(X, Y, Theta)
(4)
21 μm, 0.05°
IPC 9850 fine pitch accuracy @ Cpk = 1.33 (X, Y, Theta)
(4, 5)
35 μm, 0.09°
SYSTEM FEATURES MY300EX
On-the-fly mount order optimization
Vision autoteach with snap-to-grid
Automatic illumination settings
Intelligent feeder concept – Agilis
Automatic feeder and component recognition
On-the-fly feeder loading
Dynamic feeder positions
Automatic board stretch compensation
Automatic conveyor width adjustment
Intelligent surface impact control
Tool collision avoidance
Multi-user, multi-tasking system software
Open software interfaces for factory integration
SQL database engine
Programmable light settings fiducial camera
The IPC 9850 net throughput and accuracy numbers are obtained simultaneously, with the same machine settings.
The rated speed value is obtained under conditions optimized for speed.
(1) Optimal conditions.
(2) According to IPC 9850. Net throughput = (no of parts x 3600) / (board build time + board transfer time).
(3) According to IPC 9850 0402C verification panel.
(4) See document P-010-0112-EN for details.
(5) According to IPC 9850 Cpk 1.33 = 4σ + oset.
BOARD HANDLING
INLINE CONVEYOR
T460 T640
Maximum board size 460 x 510 mm
(18” x 20”)
640 x 510 mm
(25” x 20”)
Minimum board size
(1)
70 x 50 mm
(2.7” x 2”)
70 x 50 mm
(2.7” x 2”)
Board thickness range
(1)
0.4 – 6.0 mm
(0.016” – 0.24”)
0.4 – 6.0 mm
(0.016” – 0.24”)
Board edge clearance top 3.2 mm (0.13”) 3.2 mm (0.13”)
Board edge clearance bottom
(2)
3.2 mm (0.13”) 3.2 mm (0.13”)
Top side clearance (max) 35 mm (1.38”) 35 mm (1.38”)
Bottom side clearance (max)
(3)
32 mm (1.25”) 32 mm (1.25”)
Maximum board weight 4 kg (8.8 lbs) 4 kg (8.8 lbs)
Board transfer height Conforms to SMEMA standard for
board transfer height.
Height adjustable from 880 to 975 mm
(3 4 . 6 ” to 3 8 . 4”).
Operation mode Inline, manual, inline odd-board,
left-to-right / right-to-left.
(1) Board train specification: 90 x 50 mm (3.5” x 2”) min board size, 1.6 mm (0.06”) min thickness. Max warpage 1 mm (0.04”).
Max board train length 460 mm (18”) on both T460 and T640.
(2) Edge clearance 5.5 mm (0.22”) if component taller than 6 mm (0.24”). 14.3 mm (0.56”) if taller than 19 mm (0.75”).
(3) 15 mm (0.59”) with support pins.
FEEDER CAPACITY
FEEDER CAPACITY 8 MM TAPE
T460 T640
MY300EX-9 96 N/A
MY300EX-13 160 144
COMPONENT RANGE
HIGH PRECISION MOUNTHEAD – MIDAS
Component range Chip (from 03015), SOIC, PLCC, TSOP, QFP, BGA, flip chip,
odd-shape, surface-mount connectors, through-hole
components, CSP, CCGA, DPAK, Alcap, Tantalum
Component specification Min: 0.3 x 0.15 (0.012” x 0.006”) (03015)
Max: 140 x 73 x 35 mm (5.51” x 2.87” x 1.38”)
(1)
Max: component weight: 140 g
(2)
(1) With 4K vision. Max component size with 2K vision: 140 x 56 x 35 mm (5.51” x 2.20” x 1.38”).
(2) Depending on mounthead, mount tool, package, and production altitude.
ELECTRICAL VERIFIER (OPTIONAL)
Component range
Resistor, capacitor, unipolar capacitor, diode (forward voltage,
reverse current), Zener diode (voltage drop), transistor (current gain)
VISION CAPABILITY
LINESCAN VISION SYSTEM - 2K RESOLUTION
component type min pitch min lead width
Leaded components 0.20 mm (8 mil) 0.10 mm (4 mil)
Bumped components 0.25 mm (10 mil) 0.13 mm (5 mil)
LINESCAN VISION SYSTEM - 4K RESOLUTION
component type min pitch min lead width
Leaded components 0.10 mm (4 mil) 0.05 mm (2 mil)
Bumped components 0.15 mm (6 mil) 0.08 mm (3 mil)
SOFTWARE MODULES (OPTIONAL)
Shared databases
Line mode
PCB ID (2D barcode)
Pre-pick inspection
Barcode software
PRM software
INSTALLATION REQUIREMENTS
Power requirements
Three phase AC 6.6 kVA (3 x 2.2 kVA)
Power consumption 1.5 kW (average)
Voltages 3 x 200, 210, 220, 230, 240,
250+/- 10%, Y or Delta
Air supply No air required
Noise 70 dBA
Air temperature +18 to +35 °C (65 to 95 °F)
Air humidity < 95% RH non condensing
SOFTWARE MISCELLANEOUS
MACHINE WEIGHT
(1)
MY300EX-9 1 500 kg (3 300 lbs)
MY300EX-13 1 600 kg (3 500 lbs)
OFFLINE SOFTWARE TOOLS (OPTIONAL)
Data preparation – MYCenter
Optimization and scheduling – MYPlan
Inventory management and kitting – MYCenter
Traceability – MYTrace

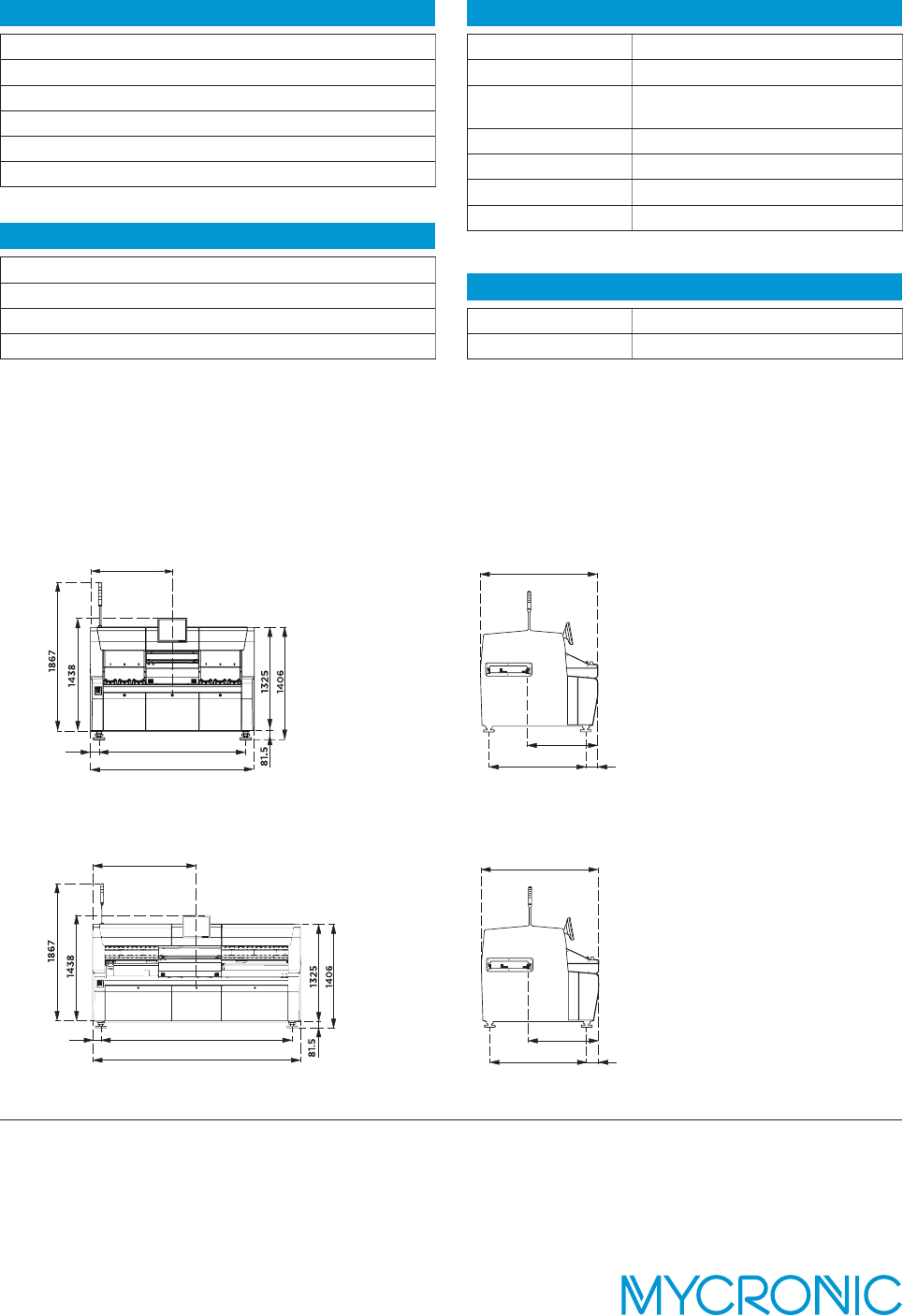

DIMENSIONS
MY300EX-9
in mm.
(1) Total machine weight excluding magazines.
MY300EX-13
4033153 Rev 0000 / March 2019
Specifications are subject to change without notice.
Mycronic, MYDATA, MYDATA automation and MY; Mycronic 4.0; MYPro, MY100, MY100e, MY200, MY200HX, MY200DX, MY200SX, MY200LX, MY300,
MY300DX, MY300SX, MY300LX, MY500, MY600, MY600JD, MY600JP, MY600JX, MY700, MY700JD, MY700JP, MY700JX and MYSynergy; Mycronic 4.0;
MYSmart, MYC50, MYD10, MYD50, MYT10, MYT50; Mycronic SMD Tower; Vi TECHNOLOGY, VIT; 5K, 5K3D, 8K, 8K3D, 9K, 9K3D; PI, PI Pico, PI Primo; SIGMA
Link; HYDRA Speedmount, Midas, ISIC; Agilis, Agilis Linear Magazine (ALM), Agilis Linear Magazine Flex (ALM FLEX), Agilis Stick Magazine (ASM), Agilis Tray
Magazine (ATM), Mycronic Tray Exchanger (TEX), Mycronic Tray Wagon Magazine (TWM); Mycronic Dip Unit (DPU); Mycronic Standard Vision System (SVS),
Mycronic Dual Vision System (DVS), Mycronic Linescan Vision System (LVS), Mycronic HYDRA Vision System (HVS); Mycronic Assembly Process Management
(APM) including; JPSys, TPSys, MYLabel, MYPlan, MYCenter, MYTrace, MYCam and FlowLine are registered trademarks or trademarks of Mycronic AB. Mycronic
AB is ISO 9001:2015 and ISO 14001:2015 certified.
