35.防音ｼｰﾙ(742E)(DGPZ)(DGAF) 35.Noise redaction seal(742E)(DGPZ)(DGAF) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 89 DGPV1010 1 SEAL ｼｰﾙ 90 DGPV0280 1 DOOR 扉 91 ADGPV8150 1 DOO…

100%1 / 214
35.防音ｼｰﾙ(742E)(DGPZ)(DGAF)
35.Noise redaction seal(742E)(DGPZ)(DGAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
45 ADGAF8210 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
46 DGAF0950 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
47 DGAF1030 1 SEAL ｼｰﾙ
48 DGAF1090 1 SEAL ｼｰﾙ
49 DGAF1110 1 SEAL ｼｰﾙ
50 DGAF1120 1 SEAL ｼｰﾙ
51 DGAF1150 1 SEAL ｼｰﾙ
52 DGAF1220 1 SEAL ｼｰﾙ
53 ADGAF8220 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
54 DGAF0940 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
55 DGAF1030 1 SEAL ｼｰﾙ
56 DGAF1090 1 SEAL ｼｰﾙ
57 DGAF1080 1 SEAL ｼｰﾙ
58 DGAF1100 1 SEAL ｼｰﾙ
59 DGAF1130 1 SEAL ｼｰﾙ
60 DGAF1180 1 SEAL ｼｰﾙ
61 ADGAF8150 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
62 DGAF0100 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
63 DGAF1230 1 SEAL ｼｰﾙ
64 DGAF1240 1 SEAL ｼｰﾙ
65 DGAF1250 1 SEAL ｼｰﾙ
66 DGAF1140 1 SEAL ｼｰﾙ
67 DCAF1080 1 SEAL ｼｰﾙ
68 DCAF1090 1 SEAL ｼｰﾙ
69 DCAF1100 1 SEAL ｼｰﾙ
70 ADGAF8160 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
71 DGAF0090 1 COVER, SIDE ｶﾊﾞｰ ｻｲﾄﾞ
72 DGAF1190 1 SEAL ｼｰﾙ
73 DGAF1200 1 SEAL ｼｰﾙ
74 DGAF1210 1 SEAL ｼｰﾙ
75 DGAF1140 1 SEAL ｼｰﾙ
76 DCAF1080 1 SEAL ｼｰﾙ
77 DCAF1090 1 SEAL ｼｰﾙ
78 DCAF1100 1 SEAL ｼｰﾙ
79 ADGAF8170 2 COVER 蓋
80 DGAF0460 2 COVER 蓋
81 DGAF1260 2 SEAL ｼｰﾙ
82 ADGAF8180 2 COVER 蓋
83 DGAF0470 2 COVER 蓋
84 DCAF1290 2 SEAL ｼｰﾙ
85 H1466K 4 PACKING ﾊﾟｯｷﾝ 5X30X300CR25ﾟﾘｮｳﾒﾝ500
86 H1468Z 2 PACKING ﾊﾟｯｷﾝ 5X95X230CR25ﾟﾘｮｳﾒﾝ500
87 H1466Z 3 PACKING ﾊﾟｯｷﾝ 5X45X70CR25ﾟﾘｮｳﾒﾝ500
88 H14680 1 PACKING ﾊﾟｯｷﾝ 5X95X355CR25ﾟﾘｮｳﾒﾝ500
PARTS LIST CP-743ME,CP-742ME ver03
35 - 3
35.防音ｼｰﾙ(742E)(DGPZ)(DGAF)
35.Noise redaction seal(742E)(DGPZ)(DGAF)
35.防音ｼｰﾙ(742E)(DGPZ)(DGAF)
35.Noise redaction seal(742E)(DGPZ)(DGAF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
89 DGPV1010 1 SEAL ｼｰﾙ
90 DGPV0280 1 DOOR 扉
91 ADGPV8150 1 DOOR 扉
92 DGAB1050 1 SEAL ｼｰﾙ
93 DGAB0560 1 COVER ｶﾊﾞｰ
94 ADGAB8110 1 COVER ｶﾊﾞｰ
95 DGAB0590 1 COVER ｶﾊﾞｰ
96 DGAB1071 1 SEAL ｼｰﾙ
97 ADGAB8160 1 COVER ｶﾊﾞｰ
98 DGAB0570 1 COVER ｶﾊﾞｰ
99 DGAB1060 1 SEAL ｼｰﾙ
100 ADGAB8120 1 SEAL ｼｰﾙ
PARTS LIST CP-743ME,CP-742ME ver03
35 - 4
35.防音ｼｰﾙ(742E)(DGPZ)(DGAF)
35.Noise redaction seal(742E)(DGPZ)(DGAF)
Ref.33-7
Ref.15-1
x10
23
15
22
21
3
8
17
13
5
6
15
10
15
10
7
4
16
12
24
15
3
10
25
26
15
3
3
10
15
2
17
13
16
20
19
B
A
B
A
1
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
0.5 1 2

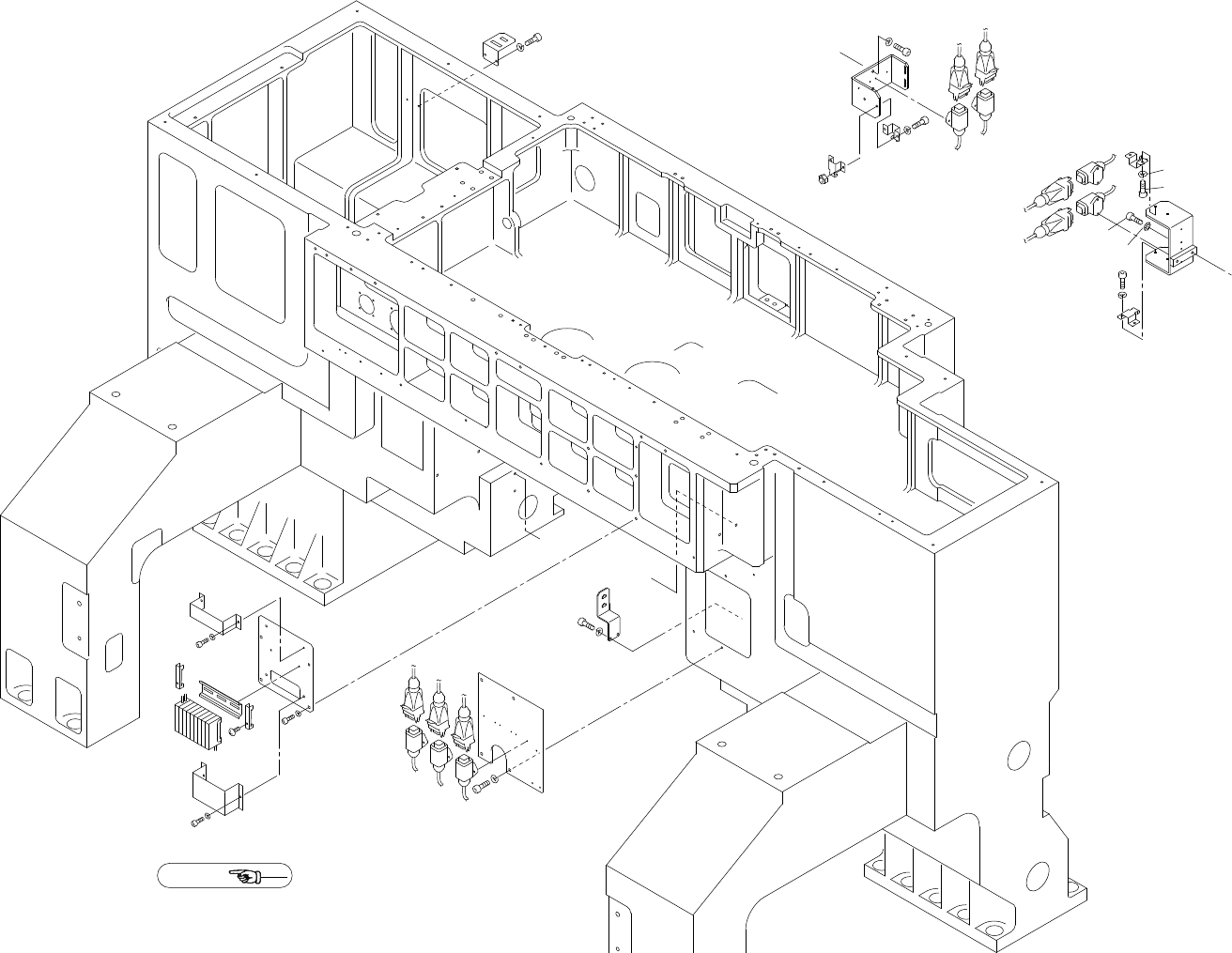

36.コネクタBKT(DGWZ)
36.BKT connector(DGWZ)
36.コネクタBKT(DGWZ)
36.BKT connector(DGWZ)
36 - 1
CP-743ME,CP-742ME PARTS LIST ver03
