31.本体(DGAB) 31.Body(DGAB) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 51 DCAB0190 1 COVER, FAN ｶﾊﾞｰ ﾌｧﾝ 52 H3018R 1 FILTER ﾌｨﾙﾀ FL-16 53 H3018T 6 FILTER ﾌｨﾙﾀ FL-12 54 H5302A B…

100%1 / 214
31.本体(DGAB)
31.Body(DGAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 ADGAB8036 1 BODY 本体
2 ADGAB8090 1 COVER ｶﾊﾞｰ
3 ADGAB8150 1 COVER ｶﾊﾞｰ
4 ADGAB8080 1 COVER ｶﾊﾞｰ
5 ADGAB8043 1 COVER ｶﾊﾞｰ
6 K1152K 12 GASKET ｶﾞｽｹｯﾄ E02S130055B(1M)
7 T4047B (1) TAPE ﾃｰﾌﾟ E052020A(20M/巻)
8 DGAB0590 1 COVER ｶﾊﾞｰ
9 DGAB0570 1 PIN ｶﾊﾞｰ
10 DGAB0560 1 COVER ｶﾊﾞｰ
11 DGAB0054 1 COVER ｶﾊﾞｰ
12 DGAB0041 4 BKT BKT
13 DCAB0090 8 COLLAR ｶﾗｰ
14 DCAB0100 8 BOLT, COUNTERSUNK ﾎﾞﾙﾄ 皿
15 DCAB0110 2 COVER ｶﾊﾞｰ
16 DCAB0120 2 COVER ｶﾊﾞｰ
17 W10025 8 WASHER ﾜｯｼｬ TL-182-4(No.1414)
19 K5170N 24 GUIDE 小ﾈｼﾞ 十穴皿  M4X040L
20 WAB5540 12 BOLT, LEVELING ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ
21 DCAB0131 12 NUT ﾅｯﾄ
22 H30120 6 FAN ﾌｧﾝ 109P1224H402
23 K1141T 6
GUARD, FIN
ｶﾞｰﾄﾞ ﾌｨﾝ 109-019C
24 DGAB1071 1 SEAL ｼｰﾙ
25 DGAB1050 1 SEAL ｼｰﾙ
26 DGAB1060 1 SEAL ｼｰﾙ
28 DCAB0310 1 PLATE ﾌﾟﾚｰﾄ
29 DCAB0240 1 PLATE ﾌﾟﾚｰﾄ
30 K5201E SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M2.6X6L
31 K51721 SCREW, C/R TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M3X5L
32 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
33 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
35 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
36 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
37 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
38 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4)
40 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
41 K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
42 K5215A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X10L
44 N1080A
NUT, HEX
ﾅｯﾄ 六角         
M4 P=0.7
45 K11413 2
GUARD, FIN
ｶﾞｰﾄﾞ ﾌｨﾝ 109-620
46 K1141Z 1
GUARD, FIN
ｶﾞｰﾄﾞ ﾌｨﾝ 109-619
48 M5050T 2 MOTOR, FAN ﾓｰﾀ ﾌｧﾝ 109-601
49 H3120T 1 PLUG ﾌﾟﾗｸﾞ 489-086(ﾅｶﾞｻ2.1M)
50 DGAB0070 1 DUCT ﾀﾞｸﾄ
PARTS LIST CP-743ME,CP-742ME ver03
31 - 2
31.本体(DGAB)
31.Body(DGAB)
31.本体(DGAB)
31.Body(DGAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
51 DCAB0190 1 COVER, FAN ｶﾊﾞｰ ﾌｧﾝ
52 H3018R 1 FILTER ﾌｨﾙﾀ FL-16
53 H3018T 6 FILTER ﾌｨﾙﾀ FL-12
54 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
55 K5170R SCREW, HEX C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M5X20L
56 N1082A
NUT, HEX
ﾅｯﾄ 六角         
M5 P=0.8
57 W1050A WASHER, FLAT ﾜｯｼｬ 平 5M/MX1.0X10(1W-5)
58 DCAB0370 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=900)
59 DCAB0380 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=912)
60 BB43880 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=920)
61 BB42950 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=980)
62 GGA8030 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=950)
63 GGA8040 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=965)
64 GGA8060 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=930,935)
65 DCAB0390 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=912)
66 DCAB0400 12 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=930)
67 DCAB0410 12 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=962,965)
68 DCAB0420 12 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=980)
69 GXA2071 12 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=920)
70 WAB0601 12 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=935)
71 GXA2121 12 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=950)
72 WAB0721 12 PAD, ANTI-VIBRATION ﾊﾟｯﾄ 防振
73 DGAB0018 1 BODY 本体
77 H1137E 1 BAND, TIE ﾊﾞﾝﾄﾞ 結束 AB-14N
78 H1137D 1 BAND, TIE ﾊﾞﾝﾄﾞ 結束 AB-4N
79 K5210A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X10L
80 DCAB0330 2 BKT, JOINT BKT ｼﾞｮｲﾝﾄ Option
81 DCAB0340 2 BKT, JOINT BKT ｼﾞｮｲﾝﾄ Option
82 DGAB0510 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ Option
83 DGAB0520 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ Option
84 DGAB0530 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ Option
85 DGAB0540 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ
86 H5391A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M12X40L
87 H5392A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M12X45L
88 H5395A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M12X50L
89 H5365A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M10X50L
90 W1027A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 12M/M
91 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
92 W1048A WASHER, FLAT ﾜｯｼｬ 平 4W-12
93 W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10
PARTS LIST CP-743ME,CP-742ME ver03
31 - 3
31.本体(DGAB)
31.Body(DGAB)
X30
前側
後側
Front Side
Rear Side
10
9
11
75
57
39
75
57
39
75
57
39
94
93
92
12
10
9
11
12
74
56
38
74
96
56
38
7
16
17
2
4
4
5
96
74
56
38
74
56
38
6
8
8
73
55
37
65
47
29
68
50
32
69
51
33
18
66
48
30
67
49
31
76
73
55
37
Reverse Panel Flow
90
85
80
91
86
81
88
83
78
87
82
77
89
84
79

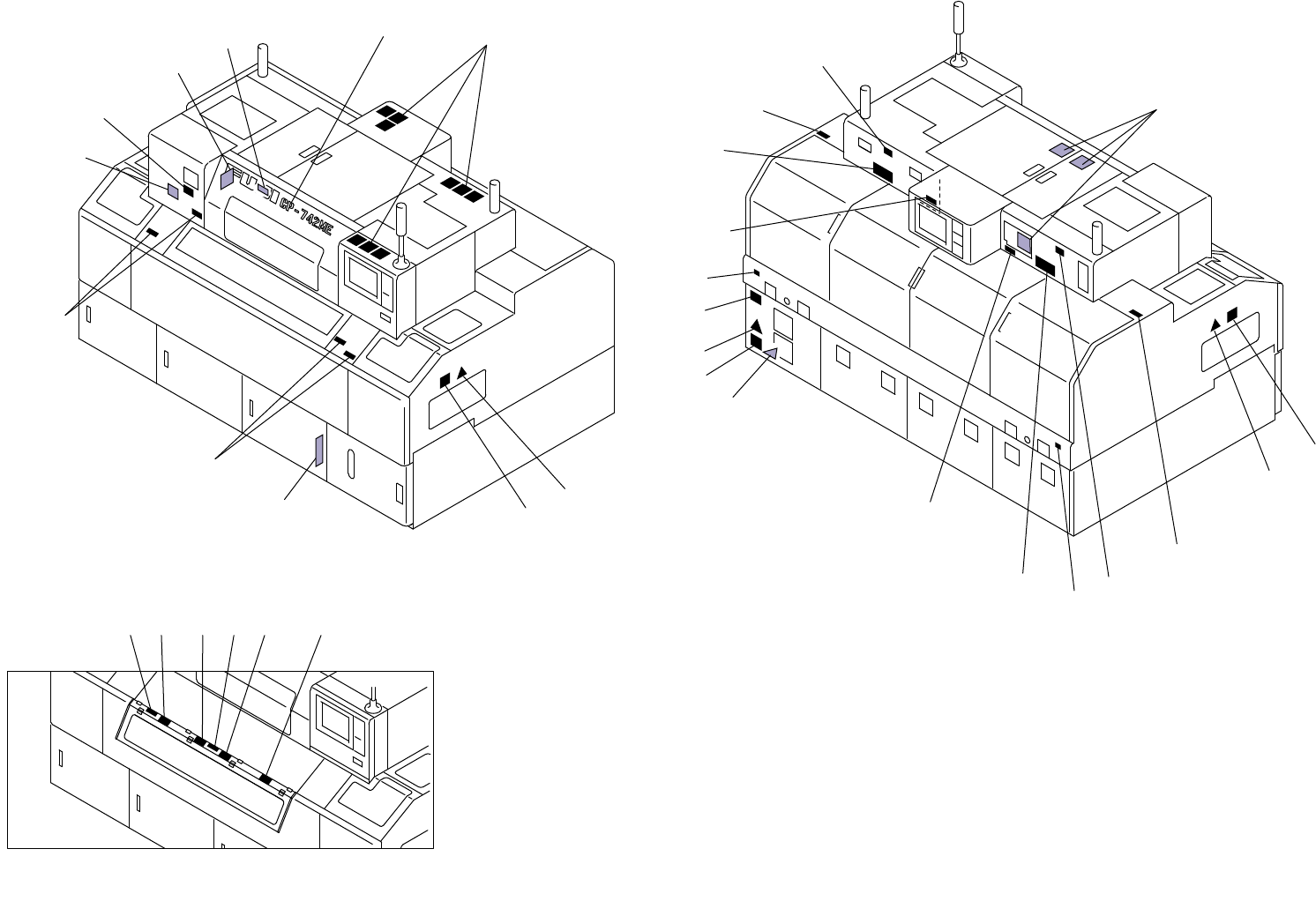

32.1.銘板、シール(DGWM)
32.1.Nameplate,Seal(DGWM)
32.1.銘板、シール(DGWM)
32.1.Nameplate,Seal(DGWM)
32 - 1
CP-743ME,CP-742ME PARTS LIST ver03
