1 2 3 4 5 4 0 3 9 3 8 3 7 3 6 6 7 8 1 2 3 4 5 3 9 3 8 3 7 3 6 6 7 8 x 1 0 6 2 7 5 4 3 1 0 1 0 1 1 2 1 1 1 4 1 5 4 0 4 0 1 4 1 5 1 7 1 4 1 5 4 0 1 4 1 5 1 8 1 4 1 5 2 4 1 9 2 4 2 1 2 5 2 4 2 1 2 4 2 0 2 5 2 4 2 0 2 …
36.ｺﾈｸﾀBKT(DGWZ)
36.BKT connector(DGWZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 DCWZ0200 1 PLATE ﾌﾟﾚｰﾄ
2 DGWZ0010 1 BKT BKT
3 CSWZ0090 5 BKT, RETAINER BKT 押え
4 DCWZ0220 1 BKT BKT
5 DCWZ0161 1 PLATE ﾌﾟﾚｰﾄ
6 DCWZ0170 1 BKT BKT
7 DCWZ0180 1 BKT BKT
8 DCWZ0190 1 RAIL ﾚｰﾙ
10 H5285A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X5L
11 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L
12 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
13 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L
14 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L
15 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
16 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
17 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
19 DCWZ0100 1 BKT BKT
20 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
21 N1080A
NUT, HEX
ﾅｯﾄ 六角
M4 P=0.7
22 DCWZ0040 1 BKT BKT
23 H52856A
ﾎﾞﾙﾄ 六角穴
M4X6L
24 H5288A
ﾎﾞﾙﾄ 六角穴
M4X10L
25 H5313A ﾎﾞﾙﾄ 六角穴 M5X8L
26 W1014A ﾜｯｼｬ 皿 M-8-H .
PARTS LIST CP-743ME,CP-742ME ver03
36 - 2
36.ｺﾈｸﾀBKT(DGWZ)
36.BKT connector(DGWZ)
1
2
3
4
5
4
0
3
9
3
8
3
7
3
6
6
7
8
1
2
3
4
5
3
9
3
8
3
7
3
6
6
7
8
x10
6
2
7
5
4
3
10
10
1
12
11
14
15
40
40
14
15
17
14
15
40
14
15
18
14
15
24
19
24
21
25
24
21
24
20
25
24
20
25
23
22
2
7
5
4
25
24
21
24
20
25
24
20
25
24
20
25
24
20
30
37
33
32
34
24
20
24
20
31
30
31
25
23
22
28
24
21
27
26
26
27
23
23
24
20
24
20
A
38
23
35
39
24 36
44
4542
47
43
42
23
46
41
46
23
47
A

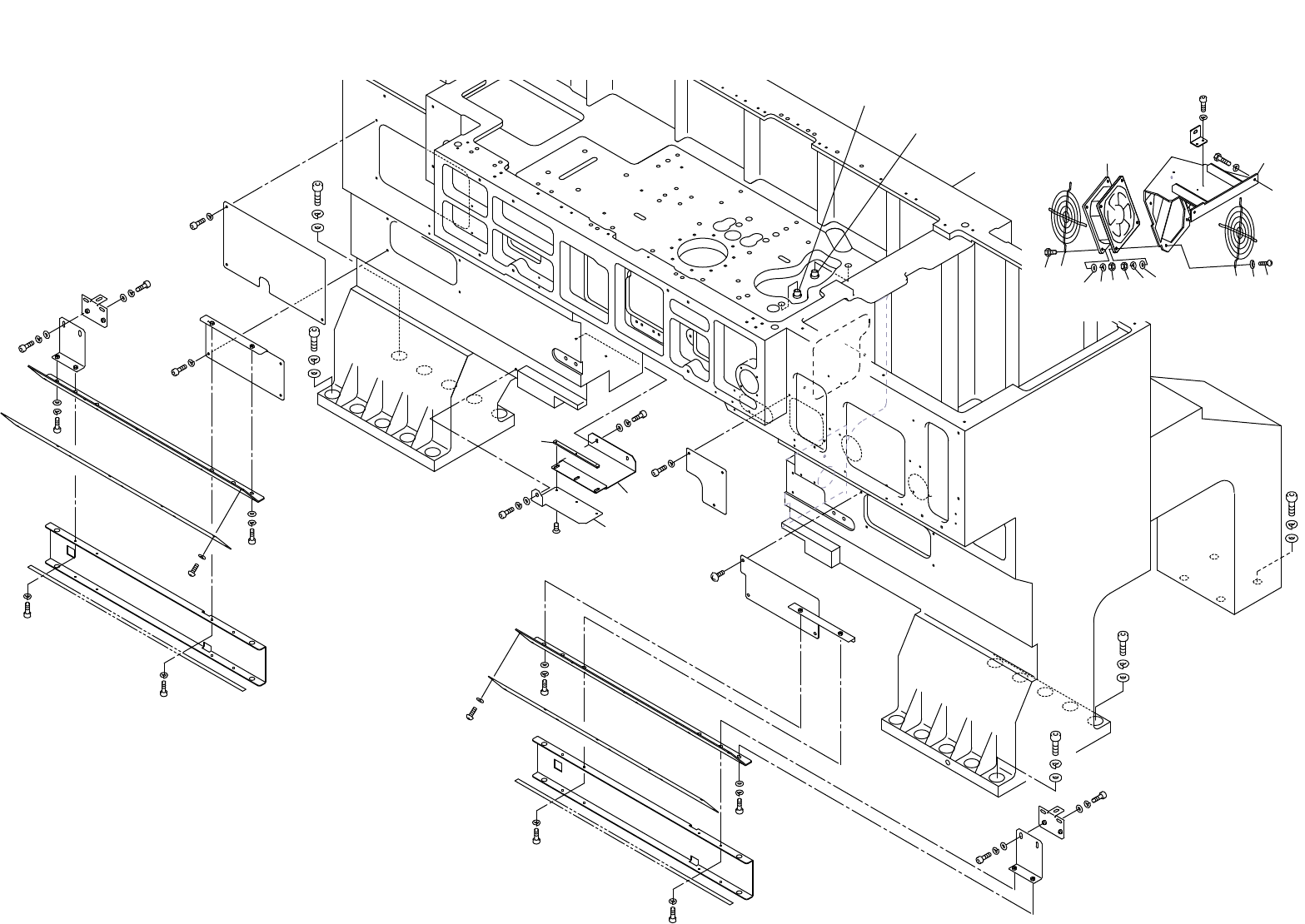

37.イケール(DGAC)
37.Angle rest(DGAC)
37.イケール(DGAC)
37.Angle rest(DGAC)
37 - 1
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
CP-743ME,CP-742ME PARTS LIST ver03
37.ｲｹｰﾙ(DGAC)
37.ANGLE REST(DGAC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 DGAC0014 1 ANGLE REST ｲｹｰﾙ
2 DGAC0020 2 PLATE ﾌﾟﾚｰﾄ
3 DGAC0031 1 BKT BKT
4 DGAC0040 2 MIRROR ﾐﾗｰ
5 DGAC0050 2 BKT BKT
6 DGAC0060 1 BKT BKT
7 DGAC0070 2 BKT BKT
10 DCAC0020 2 SPACER ｽﾍﾟｰｻ
11 DCAC0030 1 PIN ｶﾊﾞｰ
12 DCAC0050 1 COVER ｶﾊﾞｰ
14 W1029A 28
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 16M/M
15 W1058T 28 WASHER, FLAT ﾜｯｼｬ 平 16M/MX3.0X28(ｺｶﾞﾀﾏﾙ)
17 H5418A 5
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M16X60
18 H5417A 8
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M16X55
19 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
20 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
21 H5300A GUIDE ﾎﾞﾙﾄ 六角穴 M5X15L
22 K52565
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M4X6L
23 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
24 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
25 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
26 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
27 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
28 K5215C SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X12L
30 DCAC0101 2 BKT BKT
31 DCAC0110 2 SEAL ｼｰﾙ
32 DCAC0161 1 PLATE ﾌﾟﾚｰﾄ
33 DCAC0171 1 PLATE ﾌﾟﾚｰﾄ
34 DCAC0180 1 PLATE ﾌﾟﾚｰﾄ
35 DCAC0151 1 BKT BKT
36 DGAC5091 1 BKT BKT
37 K5357H
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X5L
38 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L
39 H5177A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X15L
40 H5418T 15 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M16X65L
41 H3012Z 1 FAN ﾌｧﾝ 109P1224H402
42 K1141K 2 GUARD, FIN ｶﾞｰﾄﾞ ﾌｨﾝ 109-019E
43 K5170A BOLT, HEX ﾎﾞﾙﾄ 六角 M4X12L
44 K5191A SCREW, C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M4X12L
45 W10024 1 WASHER ﾜｯｼｬ TL-182-3(1413)
46 N1030A NUT, HEX ﾅｯﾄ 六角 ZM055
47 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) .
PARTS LIST CP-743ME,CP-742ME ver03
37 - 2
37.ｲｹｰﾙ(DGAC)
37.ANGLE REST(DGAC)
