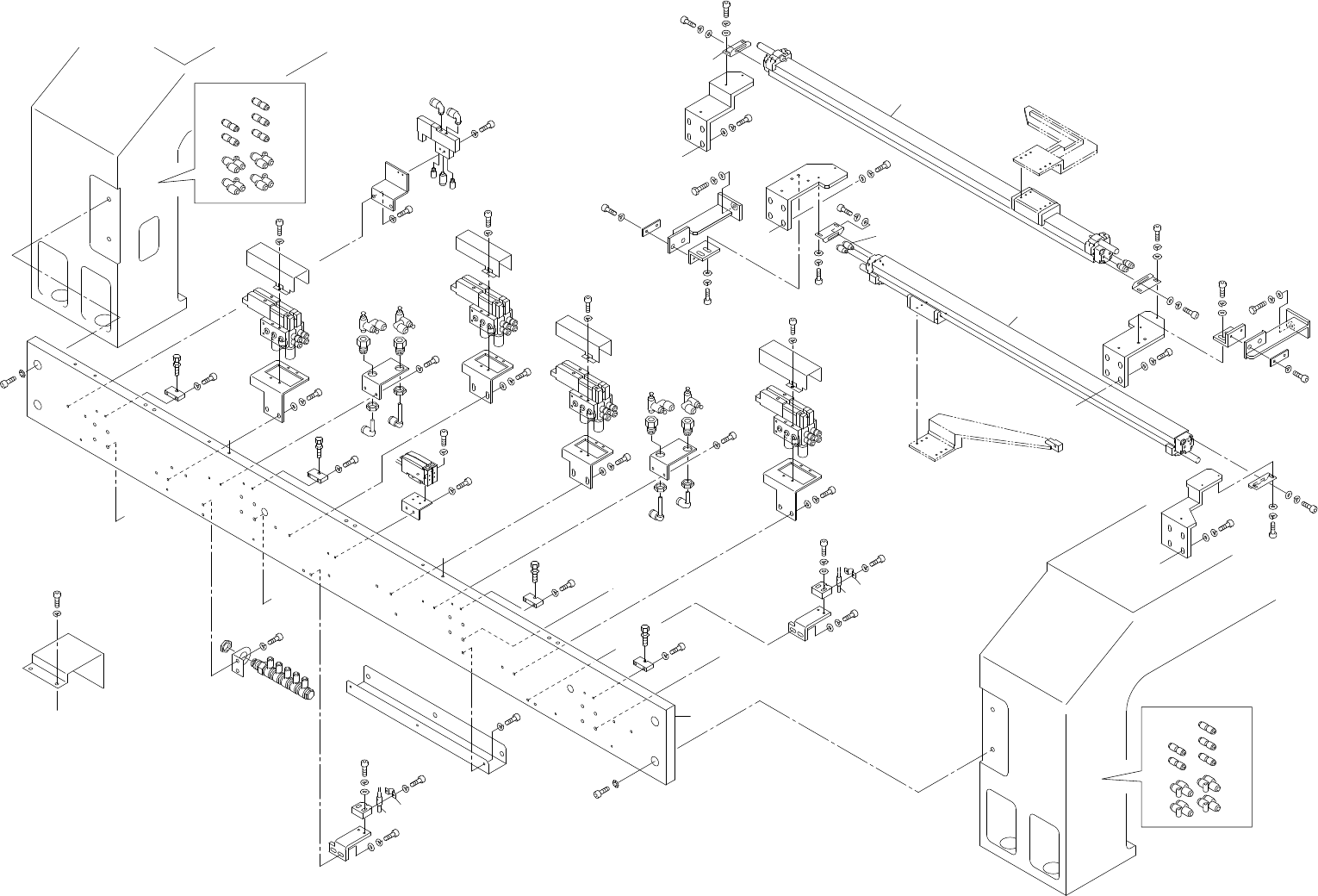

7.基板ﾛｰﾀﾞ(DGQL) 7.Board loading unit(DGQL) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 1 DCQL0020 1 DUCT ﾀﾞｸﾄ 2 DGQL0020 1 CYLINDER, RODLESS ｼﾘﾝﾀﾞ ﾛｯﾄﾞﾚｽ 3 DGQL0030 1 CYLINDER,…
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x8
21
20
43
57
22
15
57
46
69
68
65
66
67
67
56
75
58
47
58
49
57
43
39
55
39
55
64
54
47
58
48
70
70
71
71
71
72
72
72
72
70
70
71
71
71
72
72
72
72
58
62
62
58
48
61
57
43
61
57
43
59
52
50
57
57
50
64
54
56
40
43
57
43
57
57
50
58
62
49
58
62
49
58
62
58
62
49
49
57
46
57
74
73
73
45
57
74
45
41
56
60
41
56
60
60
62
60
56
58
41
76
41
53
59
63
63
59
53
57
42
41
56
60
41
56
60
60
56
41
63
59
53
56
60
41
56
62
58
48
63
59
53
42
57
62
58
48
38
38
D
B
A
D
20
21
29
28
27
27
25
25
17
E
E
E
19
8
26
4
11
19
2
9
26
3
38
38
19
5
19
B
A
20
21
35
34
7
13
31
18
31
18
13
30
30
14
23
12
23
12
22
15
35
34
36
36
33
33
36
36
33
33
7
C
C
1
20
21
6
10
69
62
58
76
7 - 1
CP-743ME,CP-742ME PARTS LIST ver03
7.基板ローダ(DGQL)
7.Board loading unit(DGQL)
7.基板ローダ(DGQL)
7.Board loading unit(DGQL)
7.基板ﾛｰﾀﾞ(DGQL)
7.Board loading unit(DGQL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 DCQL0020 1 DUCT ﾀﾞｸﾄ
2 DGQL0020 1 CYLINDER, RODLESS ｼﾘﾝﾀﾞ ﾛｯﾄﾞﾚｽ
3 DGQL0030 1 CYLINDER, RODLESS ｼﾘﾝﾀﾞ ﾛｯﾄﾞﾚｽ
4 DCQL0050 1 BKT BKT
5 DCQL0060 1 BKT BKT
6 DCQL0070 1 BKT BKT
7 DCQL0120 2 BKT BKT
8 DGQL0040 1 BKT BKT
9 DGQL0050 1 BKT BKT
10 DGQL0010 1 PLATE ﾌﾟﾚｰﾄ
11 DCQL0101 1 BKT BKT
12 DCQL0130 2 BKT BKT
13 DGQL0080 2 BKT, SENSOR BKT ｾﾝｻ
14 DCQL0150 1 BKT BKT
15 DGQL0060 2 BKT BKT
17 DCQL0170 2 COVER ｶﾊﾞｰ
18 CSQL0050 2 FIXTURE 固定具
19 CSQL0171 4 BKT BKT
20 CSQL0210 4 PLATE ﾌﾟﾚｰﾄ
21 CSQL0220 4
BOLT, ADJUSTING
ﾎﾞﾙﾄ ｾﾘ
22 ADGQL8010 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL
23 ACSQL0240 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL
25 CSQL0370 2 BKT, SENSOR BKT ｾﾝｻ
26 CSQL0380 2 BKT BKT
27 CSQL0400 2 PLATE ﾌﾟﾚｰﾄ
28 A4063E 1 ELBOW ｴﾙﾎﾞ QMQ6-5M812
29 H3202X 1 BKT BKT MZB16
30 A1038G 2 AMPLIFIER ｱﾝﾌﾟ E3X-DA11
31 H30011 2 FIBER UNIT ﾌｧｲﾊﾞﾕﾆｯﾄ E32-D32-25
33 Y3066X 4 UNION ﾕﾆｵﾝ KQ2E06-01
34 Y3079H 2 ELBOW ｴﾙﾎﾞ KQ2L06-99
35 Y3081Y 2 ELBOW ｴﾙﾎﾞ KQ2W06-99
36 K5335F 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ ASD330F-01-06S(ｼﾛ)
38 Y3061W 4 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KJS06-M5(ｼﾛ)
39 H5265A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M2X5L
40 H5273A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X5L
41 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
42 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L
43 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X20L
45 H5296A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X40L
46 H5296H
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X55L
47 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L
48 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L
49 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
PARTS LIST CP-743ME,CP-742ME ver03
7 - 2
7.基板ﾛｰﾀﾞ(DGQL)
7.Board loading unit(DGQL)
7.基板ﾛｰﾀﾞ(DGQL)
7.Board loading unit(DGQL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
50 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L
52 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L
53 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L
54 H5360A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M10X25L
55 W1020A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M
56 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
57 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
58 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
59 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
60 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
61 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
62 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
63 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
64 W1015A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-10-H
65 DGQL0070 1 BKT BKT
66 K1066K 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL F10T2-F4-PL3-DC24V
67 Y3077Z 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L04-M5
68 Y3086Y 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2S06-M5
69 S1058A 2 SILENCER ｻｲﾚﾝｻ AN120-M5
70 Y3067A 4 UNION ﾕﾆｵﾝ KQ2H06-00
71 Y30667 6 UNION ﾕﾆｵﾝ KQ2H04-00
72 Y3075A 8 UNION ﾕﾆｵﾝ KQ2U06-00
73 DGQL0090 2 COVER ｶﾊﾞｰ
74 CSQL0460 2 COVER ｶﾊﾞｰ
75 H5278T 2
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X18L ･
76 H5177A BOLT, HEX ﾎﾞﾙﾄ 六角 M5X15L
PARTS LIST CP-743ME,CP-742ME ver03
7 - 3
7.基板ﾛｰﾀﾞ(DGQL)
7.Board loading unit(DGQL)
