8.2.基板ｸﾗﾝﾌﾟ(DGSS)
8.2.Board clamping unit(DGSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
3 DGSS0032 1 GUIDE ｶﾞｲﾄﾞ
11 DGSS0310 1 SPACER ｽﾍﾟｰｻ
17 DGSS0420 1 BKT, SENSOR BKT ｾﾝｻ
18 DGSS0430 1 BKT, SENSOR BKT ｾﾝｻ
19 DGSS0530 1 BKT BKT
35 DGSS0350 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
36 DGSS0360 1 BKT BKT
38 DGSS0111 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ
39 DGSS0370 1 HOLDER ﾎﾙﾀﾞ
41 DGSS0120 1 BKT BKT
44 DGSS0440 2 PIN, LOCATING ﾋﾟﾝ 位置決め φ3
45 DGSS0450 2 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ3
46 DGSS0460 2 PIN, LOCATING ﾋﾟﾝ 位置決め φ4
47 DGSS0470 2 PIN, DIAMOND-SHAPED ﾋﾟﾝ ﾀﾞｲﾔ φ4
49 DCSS0370 1 BKT BKT
51 DCSS0330 1 BKT, RETAINER BKT 押え
65 ACSSS8020 4 DOG ﾄﾞｯｸﾞ
66 CSSS1200 3 PIN, PIVOT ﾋﾟﾝ 支点
67 CSSS1150 2 SLIDER ｽﾗｲﾀﾞ
68 CSSS1180 1 SLIDER ｽﾗｲﾀﾞ
69 CSSS1160 2 LEVER ﾚﾊﾞｰ
70 CSSS1190 1 LEVER ﾚﾊﾞｰ
71 CSSS1170 1 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
72 CSSS1140 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
74 WSS4884 1 CLAMPER ｸﾗﾝﾊﾟ
75 WSS4874 1 CLAMPER ｸﾗﾝﾊﾟ
76 WSS4921 1 COVER 蓋
77 WSS4934 1 COVER 蓋
78 WSS4892 1 BLOCK ﾌﾞﾛｯｸ
79 WSS4742 2 PLATE ﾌﾟﾚｰﾄ
80 WSS4351 2 PLATE, STOPPER ﾌﾟﾚｰﾄ ｽﾄｯﾊﾟ
81 WSS5330 3 SPRING ｽﾌﾟﾘﾝｸﾞ
82 WSS4312 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
83 WSS4302 2 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ
98 H10661 2
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL F15T4-F4-PL3-DC24V
99 Y30491 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJW06-01S
100 Y3049W 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S
101 S1056A 4 SILENCER ｻｲﾚﾝｻ AN101-01
102 H5056M 2 HOLDER ﾎﾙﾀﾞ TM-06
103 K53474 1
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2311F-01-06S(ｼﾛ)
105 H2047A 4 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ ﾟ3X8
108 S4032T 2
SENSOR
ｾﾝｻ UM-T50TV
110 Y3079N 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5
111 Y3086Y 3
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KQ2S06-M5
PARTS LIST CP-743ME,CP-742ME ver03
8 - 6
8.2.基板ｸﾗﾝﾌﾟ(DGSS)
8.2.Board clamping unit(DGSS)
8.2.基板ｸﾗﾝﾌﾟ(DGSS)
8.2.Board clamping unit(DGSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
112 K4150F 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ TKP0130-2B-R18-19L(BKT付)
123 S1021A 3
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-3
124 H1063T 1
VALVE, MECHANICAL
ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ VM133-M5-01
130 K5169X SCREW, C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M2.5X5L
131 K5357H
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X5L
132 K5256A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X8L
133 K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X6L
134 H5283H
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X40L
135 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
136 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
137 H5285A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X5L
138 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
139 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
140 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X25L
141 K5261A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M5X10L
142 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X25L
143 H5326A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X25L
144 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
145 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
146 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L
147 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
148 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
149 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
150 N1085A NUT, HEX ﾅｯﾄ 六角 M6 P=1.0
151 DGSS0500 1 BKT BKT
152 DGSS0510 2 BOLT, ADJUSTING ﾎﾞﾙﾄ ｾﾘ
153 WSS4911 4 COVER ｶﾊﾞｰ
154 DGWM0330 1 NAMEPLATE, SOL 銘板 SOL Japanese(Ref.32-7)
155 DGWM0530 1 NAMEPLATE, SOL 銘板 SOL English(Ref.32-9)
156 DGWM0730 1 NAMEPLATE, SOL 銘板 SOL French(Ref.32-11)
157 K5257A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M4X8L
158 W1041A WASHER, FLAT ﾜｯｼｬ 平 1W-4
159 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
4X12L
160 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
161 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
PARTS LIST CP-743ME,CP-742ME ver03
8 - 7
8.2.基板ｸﾗﾝﾌﾟ(DGSS)
8.2.Board clamping unit(DGSS)
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x9.4
29
34
78
71
33
76
58
57
76
42
42
32
78
71
41
85
43
2
12
67
82
22
14
5
13
76
59
45
91
84
74
84
87
84
89
87
49
36
48
25
83
71
31
76
61
16
88
15
35
77
69
84
87
16
88
15
35
77
69
63
81
17
3
21
21
21
56
85
82
66
83
72
83
71
4
92
73
3
83
72
70
78
40
65
77
8
77
66
70
78
90
90
80
77
67
9
38
78
71
51
51
20
76
59
55
75
39
7
76
60
55
75
39
7
76
60
62
76
26
85
56
27
27
28
82
67
1
83
72
11
79
76
59
37
76
60
11
79
76
60
62
76
60
85
26
50
10
76
59
30
81
60
29
68
77
35
18
19
84
89
87
68
77
35
18
19
24
66
82
46
23
47
6
84
86
52
52

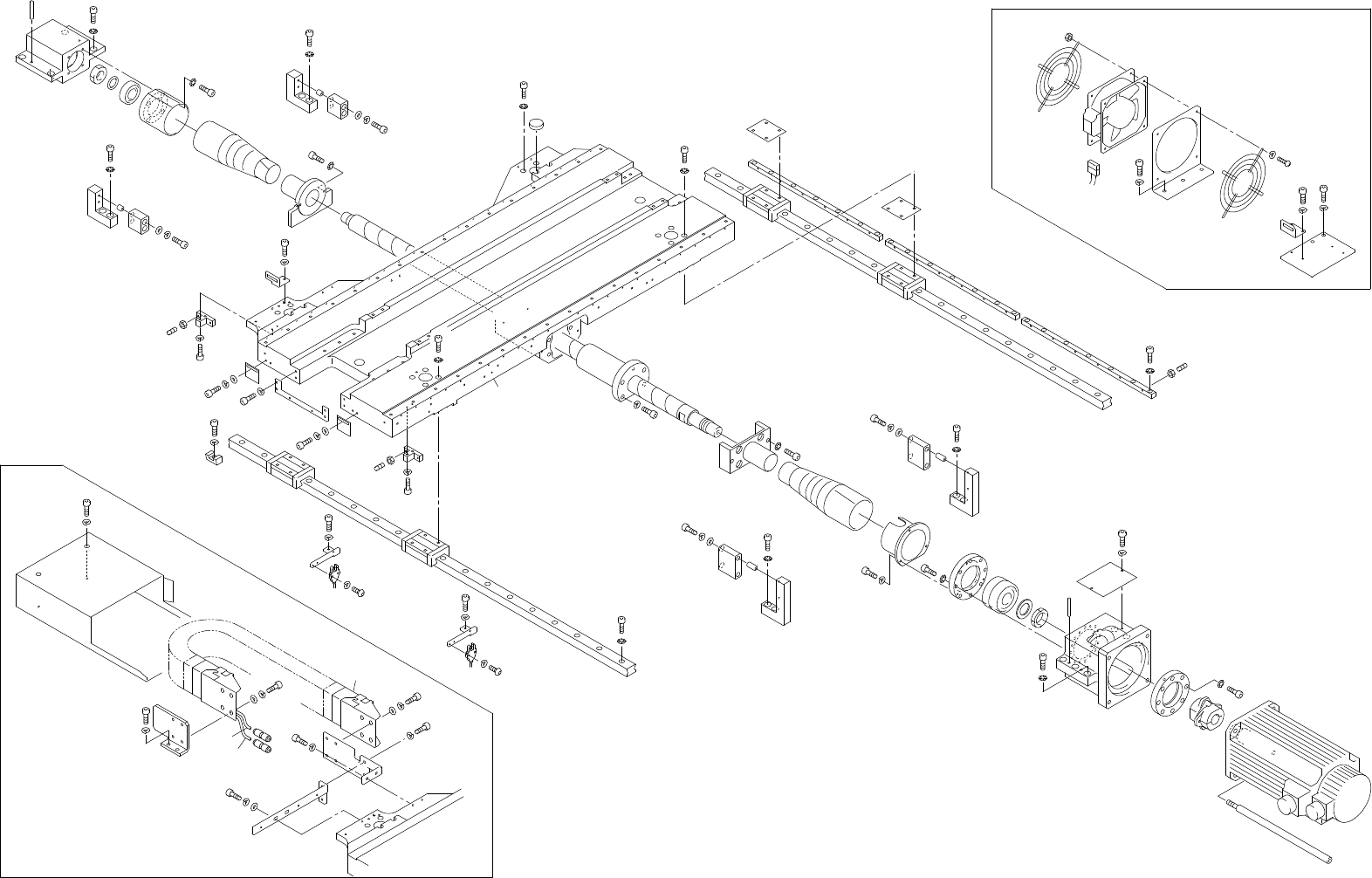

9.Ｘスライド(DGSX)
9.X slide(DGSX)
9.Ｘスライド(DGSX)
9.X slide(DGSX)
9 - 1
CP-743ME,CP-742ME PARTS LIST ver03
