9.Xｽﾗｲﾄﾞ(DGSX) 9.X slide(DGSX) 注1.(仕様選択部品)DGSD0780(t=0.95),DGSD0790(t=1.05),DGSD0810(t=0.975),DGSD0820(t=1.025) Note.1:(Specified part selection)DGSD0780(t=0.95),DGSD0790(t=1.05),DGSD0810(t=0.975),DGSD0820(t=1.025) 注2.(5…

100%1 / 214
9.Xｽﾗｲﾄﾞ(DGSX)
9.X slide(DGSX)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
46 H4206H 1
BEARING
ﾍﾞｱﾘﾝｸﾞ 60/22ZZ
47 N1126A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR20(M20 P=1.0)
48 H4161A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 25TAC62DB
49 N10216 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR25(M25 P=1.5)
50 K2010S 4 CAP ｷｬｯﾌﾟ C16
51 T2061N 1 TUBE ｳﾚﾀﾝ UBS-0640-100-W 0.3
52 Y3067A 2 UNION ﾕﾆｵﾝ KQ2H06-00
55 K5256A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X8L
56 N4035A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M4X20L
57 K5174B SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M4X50L
58 H5286A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X6L
59 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
60 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
61 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
62 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20L
63 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20L
65 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L
66 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
67 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
68 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
69 H5305A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X30L
70 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L
71 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L
72 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X18L
73 H5343A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X30L
74 H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X20L
75 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
76 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
77 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
78 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
79 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
80 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
81 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L
82 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
83 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
84 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-8-H
85 N1080A
NUT, HEX
ﾅｯﾄ 六角         
M4 P=0.7
86 H5340A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X15L
87 H5342A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X25L
88 DGSX0170 2 BKT, STOPPER BKT ｽﾄｯﾊﾟ
89 DGSX0180 2 BKT, STOPPER BKT ｽﾄｯﾊﾟ
90 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
91 H20742 2 PIN, TAPER ﾋﾟﾝ ﾃｰﾊﾟ φ6x25Lﾀｯﾌﾟﾄｵｼ(ﾒﾈｼﾞ)
92 W1025A WASHER ﾜｯｼｬ 8M/M
PARTS LIST CP-743ME,CP-742ME ver03
9 - 3
9.Xｽﾗｲﾄﾞ(DGSX)
9.X slide(DGSX)
9.Xｽﾗｲﾄﾞ(DGSX)
9.X slide(DGSX)
注1.(仕様選択部品)DGSD0780(t=0.95),DGSD0790(t=1.05),DGSD0810(t=0.975),DGSD0820(t=1.025)
Note.1:(Specified part selection)DGSD0780(t=0.95),DGSD0790(t=1.05),DGSD0810(t=0.975),DGSD0820(t=1.025)
注2.(5)BKTﾓｰﾀと(6)BKT支えは組み合わせ部品ですので同時に交換してください｡
Note.2: The bkt motor No.5 and the bkt support No.6 are used as set.
If the replacement of one of the bkt is necessary both must be replaced.
PARTS LIST CP-743ME,CP-742ME ver03
9 - 4
9.Xｽﾗｲﾄﾞ(DGSX)
9.X slide(DGSX)

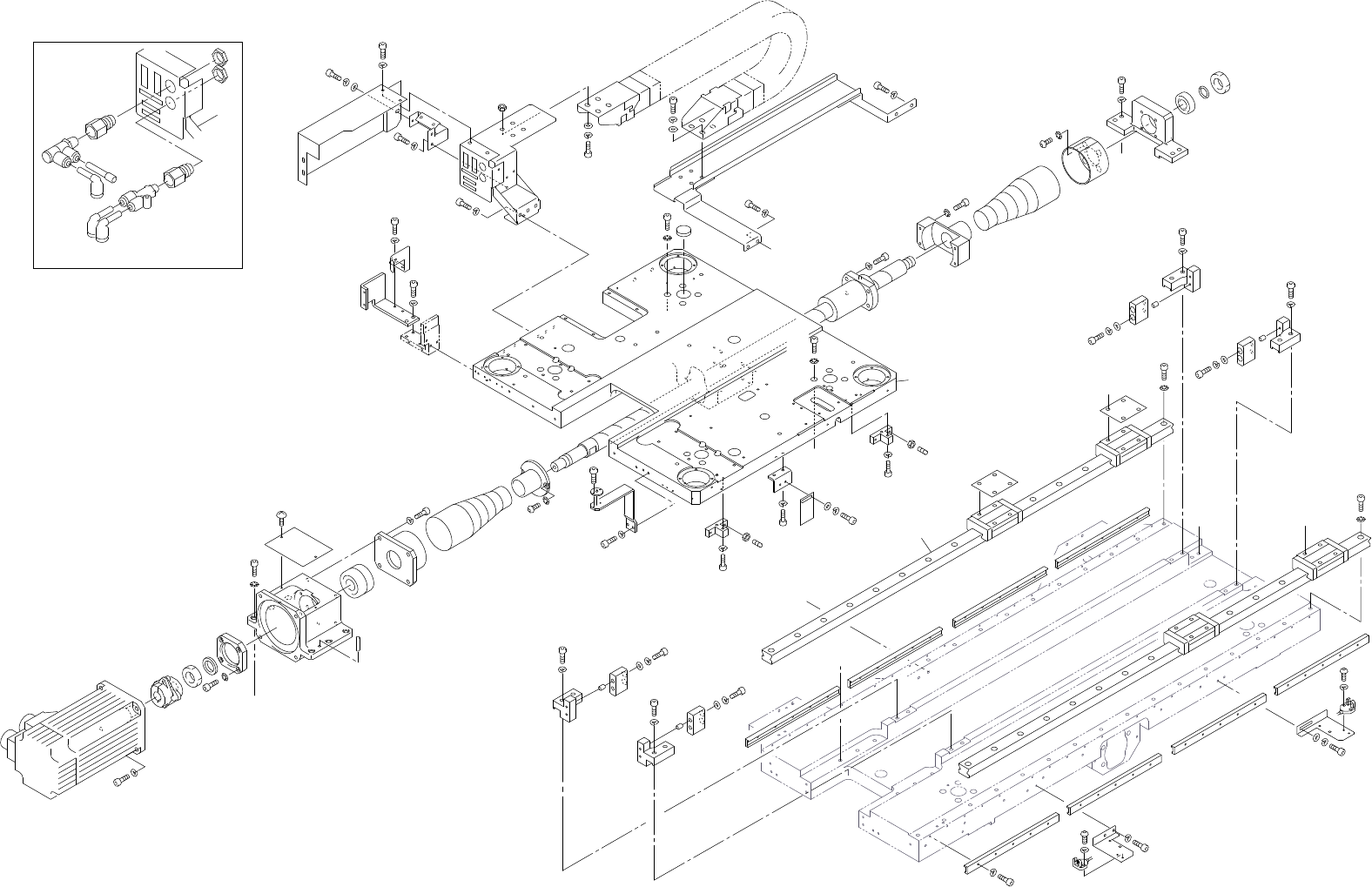

10.Ｙスライド(DGSY)
10.Y slide(DGSY)
10.Ｙスライド(DGSY)
10.Y slide(DGSY)
10 - 1
CP-743ME,CP-742ME PARTS LIST ver03
x8
