19.残ﾃｰﾌﾟｶｯﾀ(DGPK)
19.Waste tape cutter(DGPK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
49 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
50 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
51 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X18L
52 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L
53 H5346A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X45L
54 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
55 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
56 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
57 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
58 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
59 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4)
60 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L
61 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L
62 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-6-H
63 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-8-H
64 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
65 DGPK0230 1 COLLAR ｶﾗｰ
66 DGPK0240 1 HOUSING ﾊｳｼﾞﾝｸﾞ
67 H43785 1
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ RNA6901UU
68 W1019Z 1 WASHER, SPRING ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ WBA0020000A0
69 N1018T NUT, HEX ﾅｯﾄ 六角 M4 P=0.7 3ｼｭ
PARTS LIST CP-743ME,CP-742ME ver03
19 - 3
19.残ﾃｰﾌﾟｶｯﾀ(DGPK)
19.Waste tape cutter(DGPK)

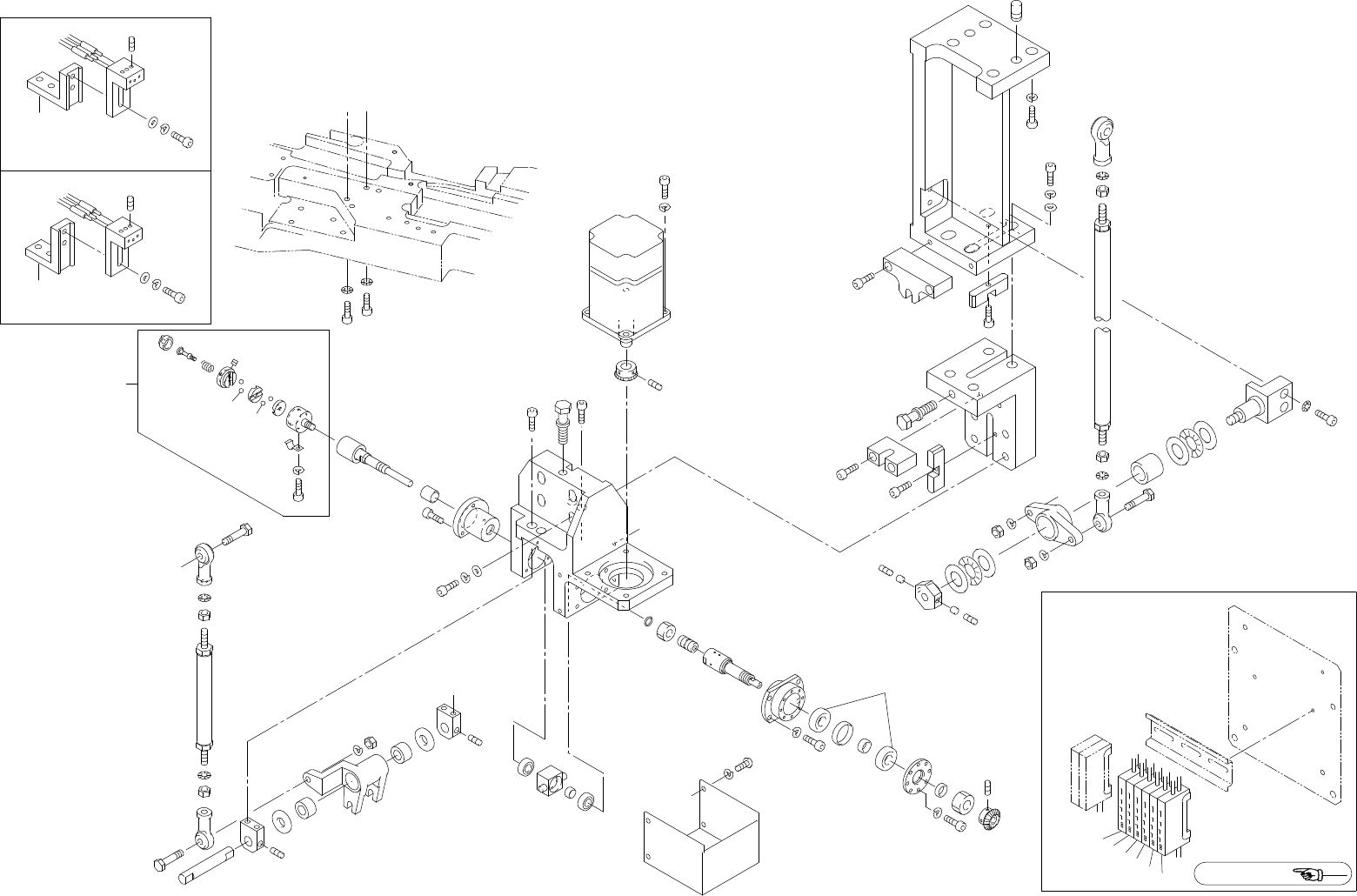

20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
CP-743ME,CP-742ME PARTS LIST ver03
20 - 1
Ref.33-7
Ref.15-1,36-1
55
53
56
81
69
43
39
41
63
42
40
12
12
35
38
68
68
24
31
34
62
36
37
78
44
46
47
90
86
83
75
28
74
21
2
89
82
51
2
21
74
28
20
46
45
89
5
18
19
5
52
17
4
31
30
54
55
3
22
14
15
16
1
27
62
79
65
80
67
80
50
C
B
B
C
A
X4.5
95
96
96
95
93
66
80
85
64
59
E
15ST
77
84
60
60
60
60
66
80
85
57
57
64
59
58
60
60
73
88
29
10
8
8
6
90
48
46
44
49
82
89
82
89
9
7
7
72
61
11
61
72
26
65
71
25
24
32
65
26
70
23
87
92
76
84
33
13
A
Front side
13ST
D
E
D
94
97
88
88
96
96
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
0.5 1 2
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 H4224D 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7900A5DBC7P5
2 H4386T 2
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1010Z
3 N1124A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR10(M10 P=0.75)
4 N1123A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR8(M8 P=0.75)
5 H44512 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1680HH
6 H4391A 1
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1520Z
7 H4296A 2
THRUST, WASHER
ｽﾗｽﾄ ﾜｯｼｬ AS1629
8 H4297A 2
THRUST, WASHER
ｽﾗｽﾄ ﾜｯｼｬ AS1831
9 H4300A 1
BEARING, THRUST
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1629
10 H4301A 1
BEARING, THRUST
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1831
11 GPK0880 1 NUT ﾅｯﾄ
12 H5066A 4
BALL, STEEL
ﾎﾞｰﾙ ｽﾁｰﾙ 4M/M
13 DCPA0070 2 PIN ﾋﾟﾝ
14 DCPM0090 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
15 DCPM0100 1 COLLAR ｶﾗｰ
16 DCPM0110 1 COLLAR ｶﾗｰ
17 DCPM0140 1 COLLAR ｶﾗｰ
18 DCPM0150 1 COLLAR ｶﾗｰ
19 DCPM0160 1 FLANGE ﾌﾗﾝｼﾞ
20 DCPM0220 1 SHAFT ｼｬﾌﾄ
21 DCPM0230 2 COLLAR ｶﾗｰ
22 DCPM0320 1 COLLAR ｶﾗｰ
23 DCPM0330 1 BKT, ADJUSTING BKT 調整
24 DCPM0340 2 SCREW, ADJUSTING ﾈｼﾞ 調整
25 DCPM0350 1 BKT, ADJUSTING BKT 調整
26 DCPM0360 2 KEY, POSITIONING ｷｰ 位置決め
27 DCPM0380 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ
28 DCPM0390 2 BLOCK ﾌﾞﾛｯｸ
29 DCPM0400 1 BKT BKT
30 DCPM0420 1 SHAFT ｼｬﾌﾄ 注1.Note.1
31 DCPM0470 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ 注1.Note.1
32 DCPM0052 1 BKT BKT
33 DGPM0010 1 BKT BKT
34 DCPM0210 1 FLANGE ﾌﾗﾝｼﾞ
35 DCPM0242 1 RING ﾘﾝｸﾞ
36 DCPM0311 4 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板
37 DCPM0370 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴
38 DCPM0291 1 HOLDER ﾎﾙﾀﾞ
39 DCPM0270 1 BOLT ﾎﾞﾙﾄ
40 DCPM0250 1 RING ﾘﾝｸﾞ
41 DCPM0282 1 SPRING ｽﾌﾟﾘﾝｸﾞ
42 DCPM0261 1 HOLDER ﾎﾙﾀﾞ
43 DCPM0300 1 CLUTCH ｸﾗｯﾁ
44 H3181H 2
PLATE, END
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBRL6FN
PARTS LIST CP-743ME,CP-742ME ver03
20 - 2
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
