Adjustment Instructions SIPLACE HS -50 2 Operational Safety Edition 05/00 2.2 Safety Equipment 43 The followi ng va riants may be u sed: Item no 0011682 0-01 SIPLACE g uard for 1 locati on Item no 0011682 1-01 SIPLACE …
2 Operational Safety Adjustment Instructions SIPLACE HS-50
2.2 Safety Equipment Edition 05/00
42
*XDUGRQWKH&RPSRQHQW7DEOH/RFDWLRQV

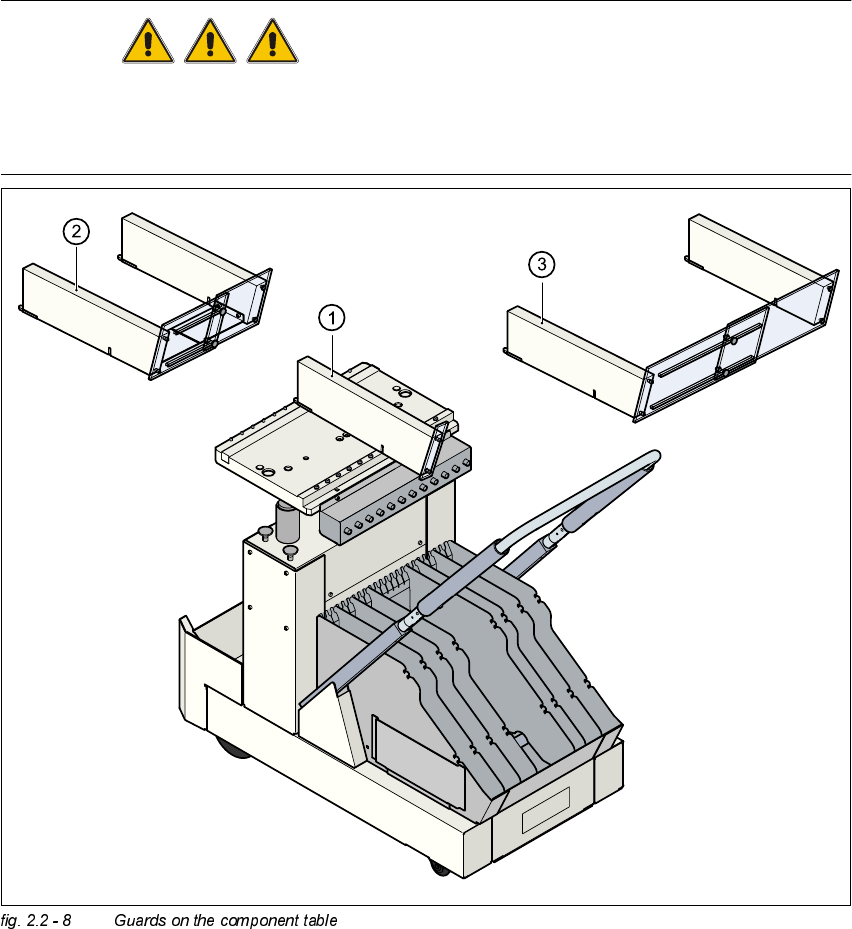

DANGER
All locations must be equipped with feeders in order to guarantee operational reliability. If there
are not enough feeders available, a guard ("feeder dummy") must be fitted in place of the feeder.
The following variants can be used:
.(<
(1) Guard for 1 location
(2) Guards for 6 - 10 locations
(3) Guards for 11 - 20 locations
Adjustment Instructions SIPLACE HS-50 2 Operational Safety
Edition 05/00 2.2 Safety Equipment
43
The following variants may be used:
Item no 00116820-01 SIPLACE guard for 1 location
Item no 00116821-01 SIPLACE guards for 6 - 10 locations
Item no 00116822-01 SIPLACE guards for 11 - 20 locations
2 Operational Safety Adjustment Instructions SIPLACE HS-50
2.3 Residual Voltages in the Servo and Discharge Periods Edition 05/00
44
5HVLGXDO9ROWDJHVLQWKH6HUY RDQG'LVFKDUJH
3HULRGV
When the EMERGENCY STOP button is pressed or the placement system is switched off, the
link voltages 200 V for the gantry axes and 100 V for the star - axes, will quickly discharge to safe
residual voltage levels.
The voltages can be tapped off at test sockets X1 - X4 on the voltmeter unit in the servo unit.
DANGER
The placement system is powered with 3 x 204 VAC (US version) 3 x 230 VAC, 3 x 380 VAC,
3 x 400 VAC respectively 3 x 415 VAC ± 5 %, 50/60 Hz main power voltage. This means that
parts of the system carry potentially lethal voltages - even when the main switch is turned off.
Death, serious injury and considerable damage may result if these placement systems are han-
dled incorrectly.
Å Always follow the applicable accident prevention and DIN regulations. (Particularly EN 60204,
part 1).
Å The guard over the servo unit must ONLY be opened by appropriately qualified and trained
personnel.
