Adjustment Instructions HS-50 9 Calibration of SIPLACE HS-50 (incl. SITEST version 501.xx) Software-Version 5.01 Edition 05/00 9.6 Calibration Collect & Place Head Nozzle Changer 173 …
172
9 Calibration of SIPLACE HS-50 (incl. SITEST version 501.xx) Adjustment Instructions HS-50
9.6 Calibration Collect & Place Head Nozzle Changer Software-Version 5.01 Edition 05/00
NOTE
The pick-up height must be determined for
each magazine.
&DOLEUDWLRQRIWKH&XUUHQW0DJD]LQH
Example: Nozzle changer for C&P Head 1, not completely loaded with all magazines.
6,7(67
Å Select "C&P Heads" ==> "C&P Head 1" ==>
"C&P Head nozzle changer" ==> "Magazine number..." ==> "Type in magazine number and
accept" ==> "Calibrate current magazine".
Å Repeat these instructions with all magazines.
Å Proceed under section "Calibration of Pick-Up Height". (See section 9.6.3).
Adjustment Instructions HS-50 9 Calibration of SIPLACE HS-50 (incl. SITEST version 501.xx)
Software-Version 5.01 Edition 05/00 9.6 Calibration Collect & Place Head Nozzle Changer
173
&DOLEUDWLRQRI3LFN8S+HLJKW
Å Ascertain, that there is a nozzle on the lower segment, and that all garages selected below, are empty.
6,7(67
Å Select "Magazine number..." ==> "Type in magazine number and accept" ==> "Garage number..." ==>
"Type in garage number and accept" ==> "Calibrate pick-up height" ==> "OK".
Å Repeat this procedure for all magazines.
Å Select "Main View" ==> "Save machine data".
NOTE
Each individually determined pick-up
height (z-position) will be displayed in a di-
alogue box, after the calibration.
The z-position of the reject container will
be calculated from the pick-up height
determined for the last magazine.
If you want to test if the calibration was
successful, you should always FIRST
save the determined calibration data
("Main view" ==> "Settings" ==> "Save
machine data"). After saving the data,
return to the display "C&P Head nozzle
changer".
With the help of the functions "Place / Pick-
up" you can test the calibration result.
174
9 Calibration of SIPLACE HS-50 (incl. SITEST version 501.xx) Adjustment Instructions HS-50
9.7 Calibration of Conveyor Width Software-Version 5.01 Edition 05/00
NOTE
Using the functions of the width adjust-
ment, no PCB may be in the conveyor and
the lifting tables must be down.
If the system has a dual conveyor in-
stalled, the conveyor width for conveyor 2
(left - hand conveyor) must get calibrated
as described above.
&DOLEUDWLRQRI&RQYH\RU:LGWK
Example: Conveyor 1 (= right hand conveyor).
6,7(67

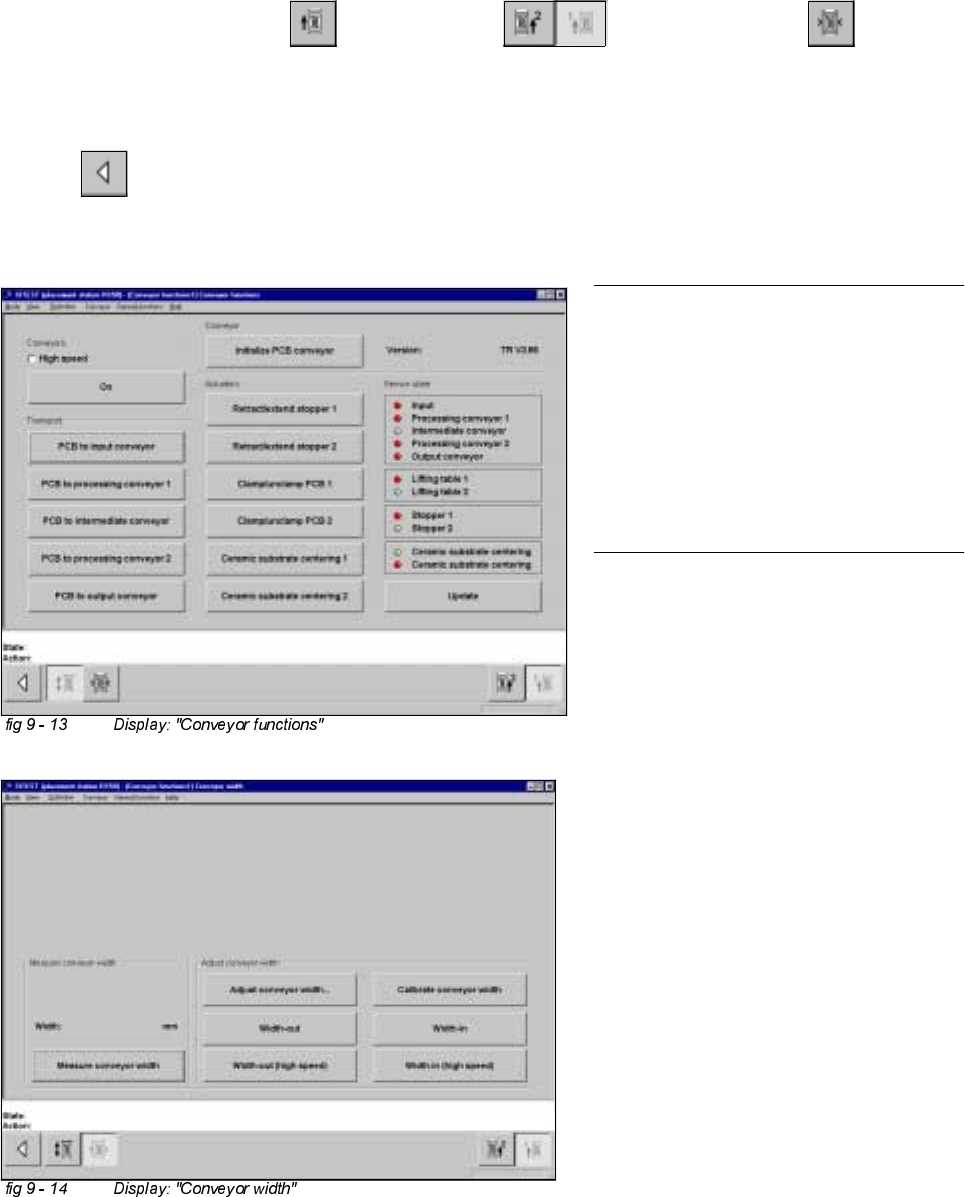

Å Select "Placement conveyor" ==> "Conveyor 1" ==> "Conveyor width" ==>
"Calibrate conveyor width" ==> "Insert a PCB with 100 mm of width into conveyor 1" ==> "With the help of
the functions "wider" / "narrower" (in the dialogue box), adjust to the width of the PCB" ==> "OK" ==>"Main
view" ==> "Save machine data".
