2 Operational Safety Adjustment Instructions SIPLACE HS-50 2.2 Safety Equipment E dition 05/00 32  0DLQ6Z LWFK(0 (5*(1&<672 3%XWWRQV3URWHFWLYH&RYHU6 ZLWFKHV  3RVLWLRQ RI 0 DLQ 6ZLWF…

Adjustment Instructions SIPLACE HS-50 2 Operational Safety

Edition 05/00 2.2 Safety Equipment

 *XDUGRQWKH,QSXW2XWSXW&RQYH\ RU

DANGER

The guard must always be set to the height of the PCB to be processed. Ensure that the gap

between the guard and the safety bar is as small as possible. 

– Guards are fitted on the input and output belts of the PCB conveyor.

Å The height of the guard must be set using the slots so that the processed PCB can travel

through.



.(<

(1) Safety bar (fixed)

(2) Guards (adjustable)

(3) Slots for adjusting the height

(4) Cover

2 Operational Safety Adjustment Instructions SIPLACE HS-50

2.2 Safety Equipment Edition 05/00

 0DLQ6Z LWFK(0 (5*(1&<672 3%XWWRQV3URWHFWLYH&RYHU6ZLWFKHV

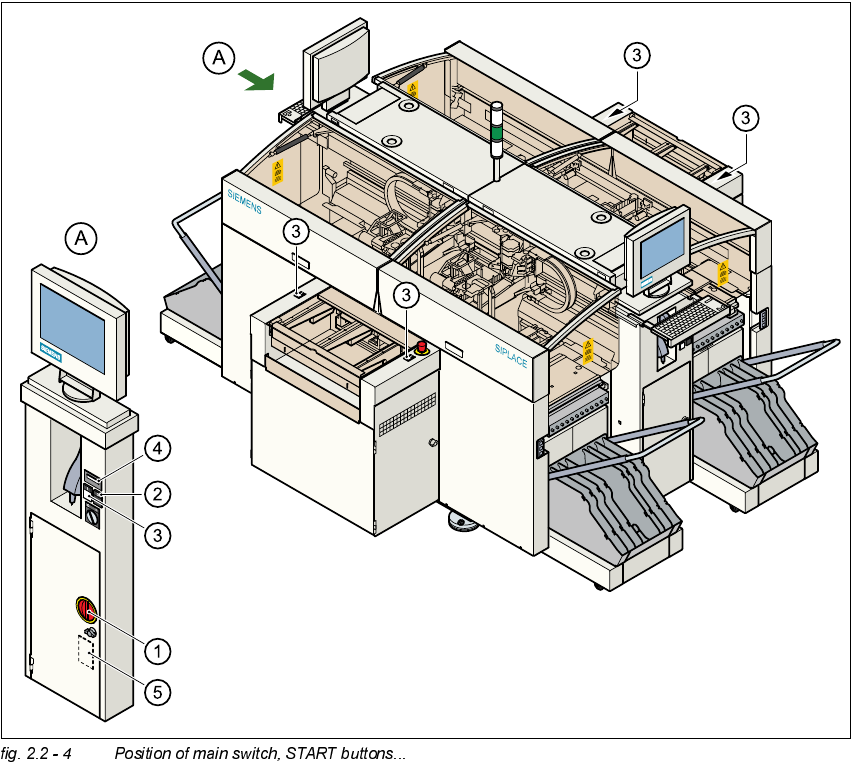

 3RVLWLRQ RI0 DLQ6ZLWF K67$57%XWWRQV RQWKH3ODFHPHQW6\VWHP



(1) Main switch

(2) STOP button (black)

(3) START button (white)

(4) Component counter

(5) Service socket in the power supply unit behind the protective door



Adjustment Instructions SIPLACE HS-50 2 Operational Safety

Edition 05/00 2.2 Safety Equipment

 3RVLWLRQRI(0(5*(1&<6723%XWWRQV6DIHW\6ZLWFKHVHWFRQWKH3ODFHPHQW

6\ VWHP



.(<

(1) EMERGENCY STOP button

(2) Protective cover switches

(3) Protective cover switches over the PCB conveyors

(4) Protective contactor combination (PCC) in the power supply unit behind the safety doors

(5) Key switch

Key switch open position 0 for normal mode

Key switch closed position I for service purposes
