2 Operational Safety Adjustment Instructions SIPLACE HS-50 2.3 Residual Voltages in the S ervo and Discharge Periods Edition 05/00 46  5HV LGXDO9 ROW DJHVDQG'LVFKDUJH3HULRGVD IWHU6ZLWFKLQJ2))WKH0 DLQ …

100%1 / 182
Adjustment Instructions SIPLACE HS-50 2 Operational Safety
Edition 05/00 2.3 Residual Voltages in the Servo and Discharge Periods
45
.(<

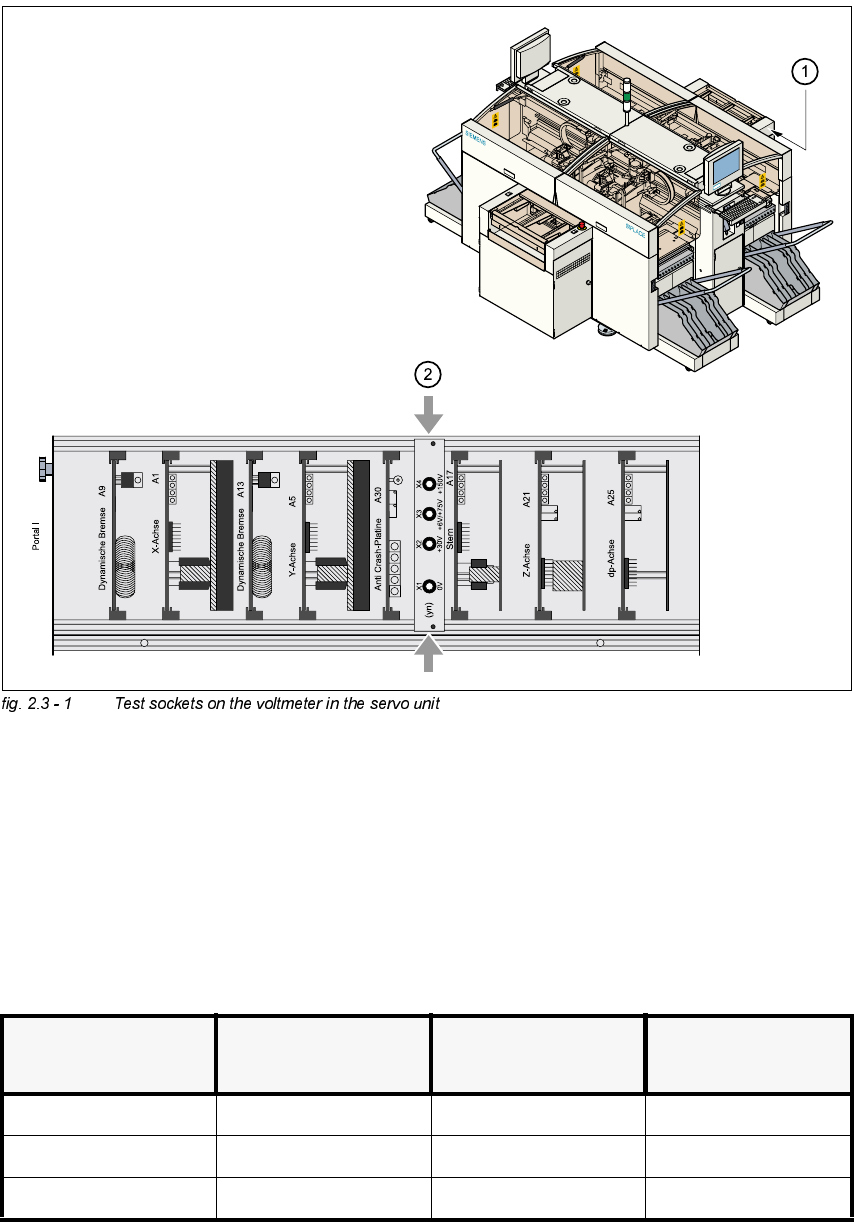

(1) Location of the servo unit
(2) Voltmeter in the servo unit
 5HVLGXDO9ROWDJHVDQG'LVFKDUJH3HULRGVDIWHU3UHVVLQJWKH(0(5*(1&<
6723%XWWRQ
7HVWVRFNHWV;;;
PHDVXUHGDW;*1'
9ROWDJHLQQRUPDOPRGH
5HVLGXDOYROWDJHDIWHU
(0(5*(1&<6723
'LVFKDUJHSHULRGV
X2 + 30 VDC + 30 VDC -
X3 + 100 VDC < 10 VDC 50 sec
X4 + 200 VDC < 10 VDC 7 sec
2 Operational Safety Adjustment Instructions SIPLACE HS-50
2.3 Residual Voltages in the Servo and Discharge Periods Edition 05/00
46
 5HVLGXDO9ROW DJHVDQG'LVFKDUJH3HULRGVDIWHU6ZLWFKLQJ2))WKH0 DLQ
6ZLWFK
CAUTION
To avoid the risk of loosing any data, evaluate the following criteria before you switch off your
automatic placement system (emergencies excluded):
Has the placement system finished transferring machine, set-up and working data?
–Has the placement system finished operation on the PCB?
–Has the placement system completed the run - up phase?
–Has the Windows NT operating system been shut down correctly?
7HVWVRFNHWV;;;
PHDVXUHGDW;*1'
5HVLGXDOYROWDJHZLWKPDLQ
VZLWFKWXUQHGRII
'LVFKDUJHSHULRGV
X2 < 10 VDC < 2 sec
X3 < 10 VDC < 50 sec
X4 < 10 VDC < 7 sec
Adjustment Instructions SIPLACE HS-50 2 Operational Safety
Edition 05/00 2.4 Disabling of Air Supply / Discharging Pressure
47
 'LVDEOLQJRI$LU6XSSO\ 'LVFKDUJLQJ3UHVVXUH
The compressed air working pressure is set to 5.3 bar + 0.2 bar. The position of the compressed
air unit is indicated by item 4 in fig. 2.4 - 1
. The compressed air supply to the machine can be
interrupted using the shut - off valve (item 1 in fig. 2.4 - 1
).
Å Open the protective door.
Å You must remove the cover plate to use the shut - off valve.
Å Turn the lever on the shut - off valve (item 1 in fig. 2.4 - 1) from the vertical to the horizontal
position.
Å Watch the working pressure gauge and the pressure gauge for the compressed air supply of
the stopper (item 2 or 3 in fig. 2.4 - 1
).
– If the automatic placement system is switched on, the pressure discharges to 0 bar within 1
minute.
