3 Test Equipment Adjustment Instructions S IPLACE HS-50 3.1 Axis Test Box and Adapter Board Edition 05/00 62
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 05/00 3.1 Axis Test Box and Adapter Board
61
7HVW(TXLSPHQW

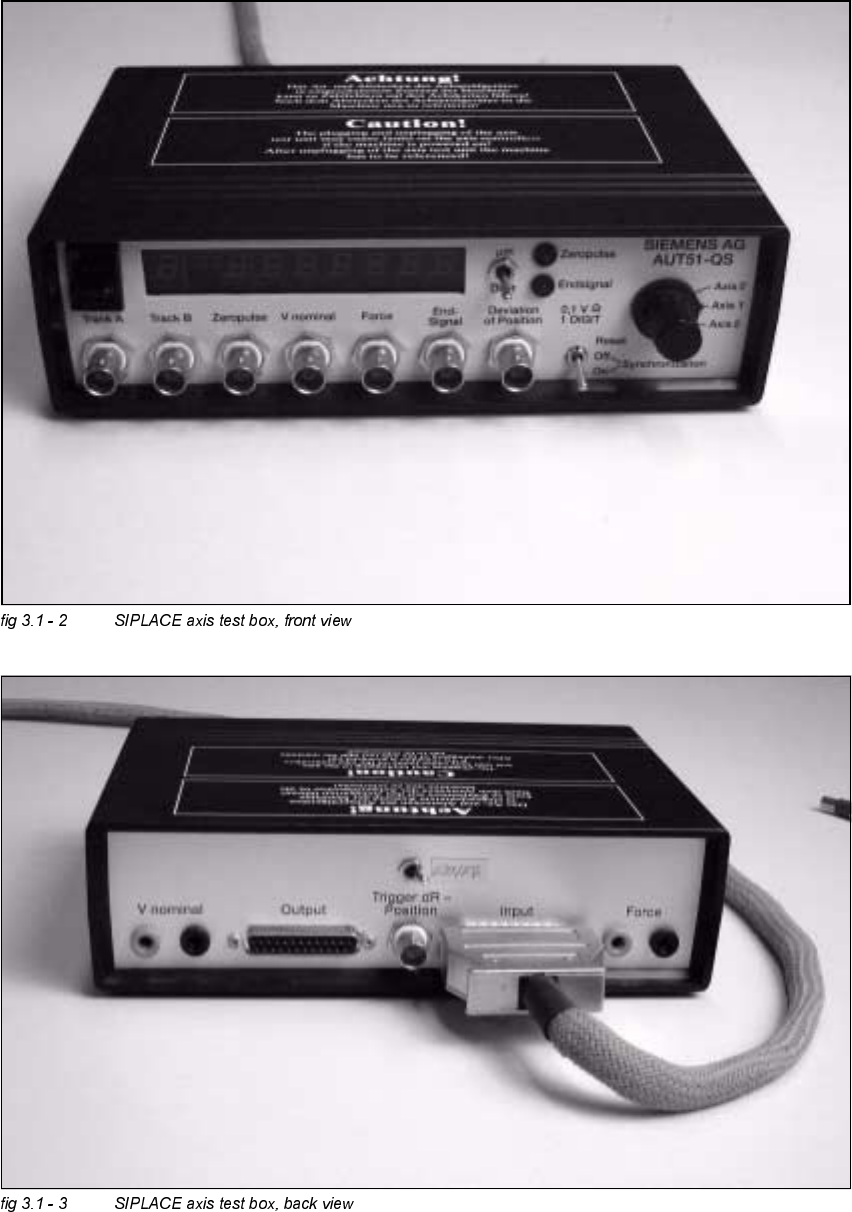

$[LV7HVW%R[DQG$GDSWHU%RDUG
Item no: Axis test box, including adapter board 00303430-06
Item no: Axis test box 00328041-05
Item no: Cable 00304771-03

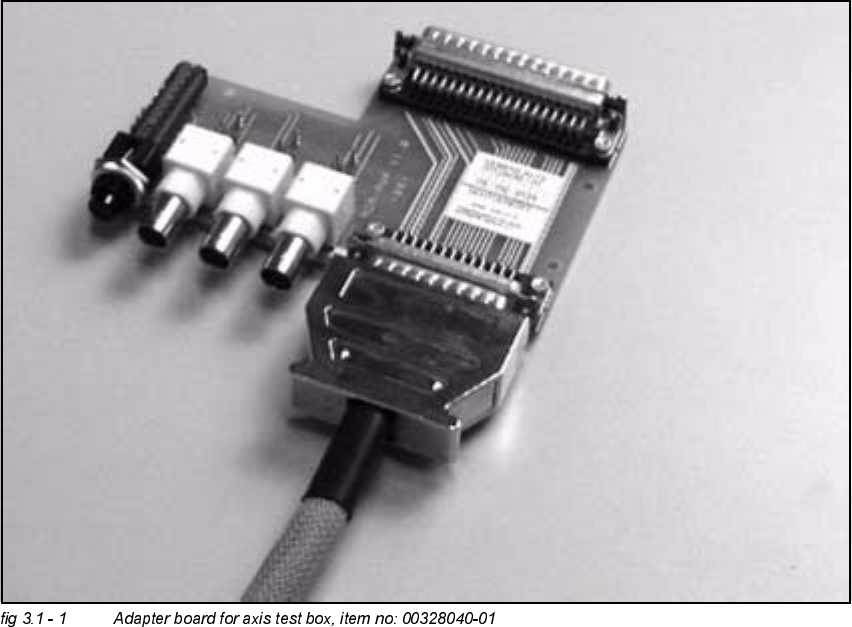

Item no: Adapter board 00328040-01
$SSOLFDWLRQ
The axis test box is used in connection with the test adapter axis, for calibration of the dynamics
of the axes. (Placement head axes and gantry axes).
3 Test Equipment Adjustment Instructions SIPLACE HS-50
3.1 Axis Test Box and Adapter Board Edition 05/00
62
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 05/00 3.2 Track Signal Tester HS-50
63

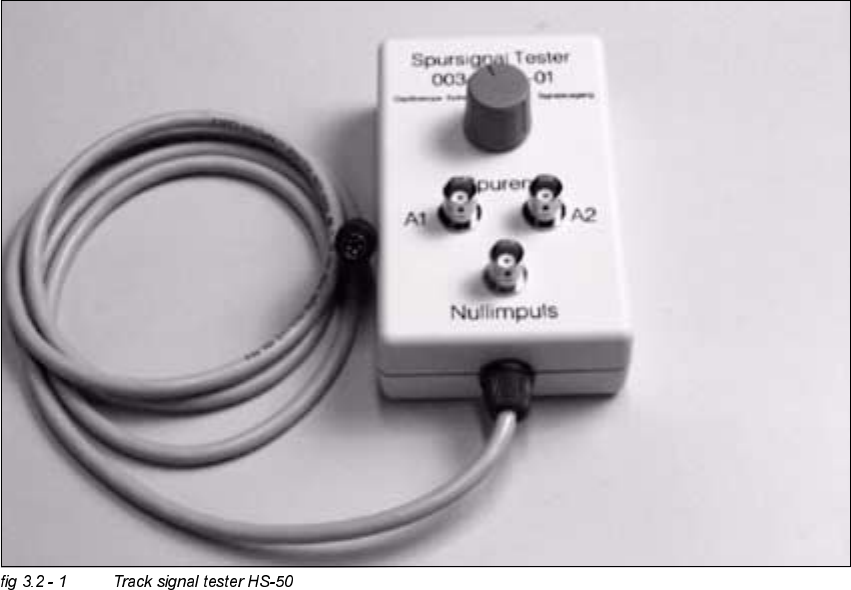

7UD FN6LJQDO7HVWHU+6
$SSOLFDWLRQ
Testing of track signals of incremental measuring systems of gantry axes on HS-50 machines.
