Adjustment Instructions SIPLACE HS -50 3 Test Equipment Edition 05/00 3.6 Feeder Location Test Unit 67 )HHGHU/RFDWLRQ7 HVW8QLW $ SSOLFDWLRQ The feeder l ocation t est unit is used to c heck the con nections o…
3 Test Equipment Adjustment Instructions SIPLACE HS-50
3.5 SIPLACE Compressed Air Tester Edition 05/00
66
6,3/$&(&RPSUHVVHG$LU7HVWHU
$SSOLFDWLRQ
The compressed air tester is used for the adjustment of the blast air on the C&P head.
Compressed air tester, including a cable for SIPLACE 80 S15 / F3: Item no: 00313523-01
Compressed air tester, without cable, for all other SIPLACE systems: Item no: 344807-01
Adjustment Instructions SIPLACE HS-50 3 Test Equipment
Edition 05/00 3.6 Feeder Location Test Unit
67

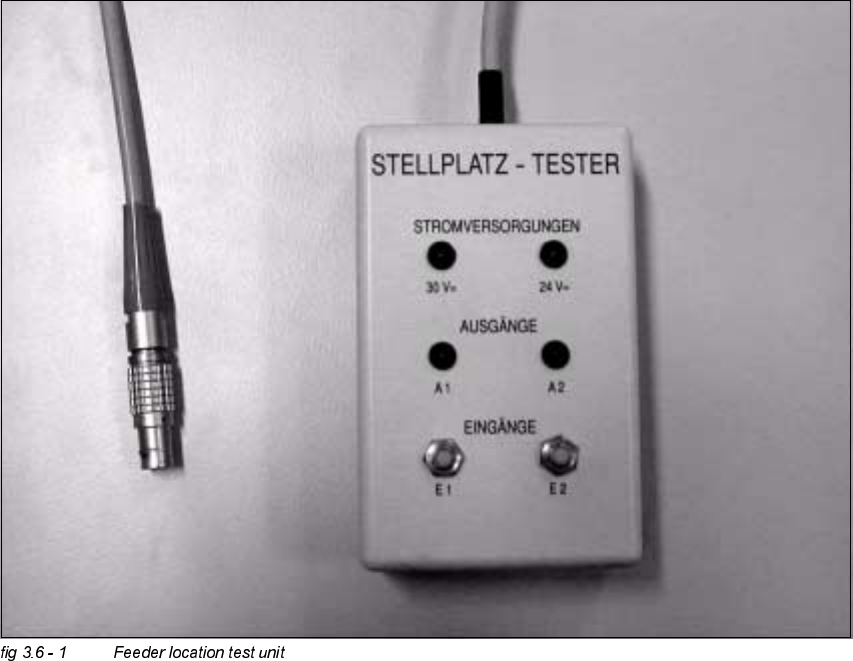

)HHGHU/RFDWLRQ7HVW8QLW
$SSOLFDWLRQ
The feeder location test unit is used to check the connections of the feeders on the communication
unit of the component table.
3 Test Equipment Adjustment Instructions SIPLACE HS-50
3.7 Power Supply for Mounting of the Star. Edition 05/00
68
3RZ HU6XSSO\IRU0RXQWLQJRIWKH6 WDU
$SSOLFDWLRQ
The power supply is used as a calibration tool for mounting the star.
