Adjustment Instructions SIPLACE HS -50 3 Test Equipment Edition 05/00 3.8 Calibration Tool for t he Collect & Place Head 69 &DOLEUDWLRQ7 RROIR UWKH&ROOHFW3ODFH+HDG Gauge for the s tar , it em …
3 Test Equipment Adjustment Instructions SIPLACE HS-50

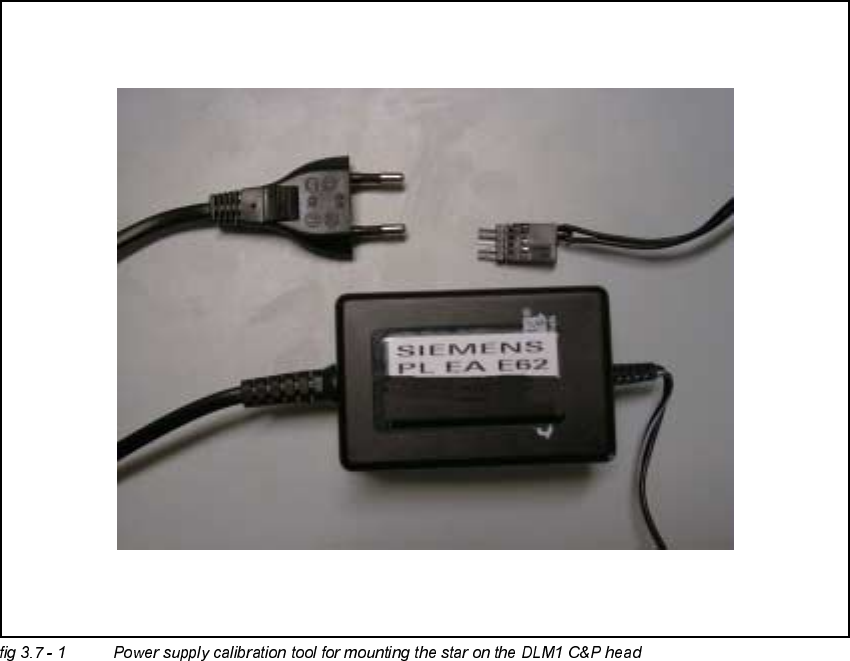

3.7 Power Supply for Mounting of the Star. Edition 05/00
68
3RZ HU6XSSO\IRU0RXQWLQJRIWKH6 WDU
$SSOLFDWLRQ
The power supply is used as a calibration tool for mounting the star.
Adjustment Instructions SIPLACE HS-50 3 Test Equipment

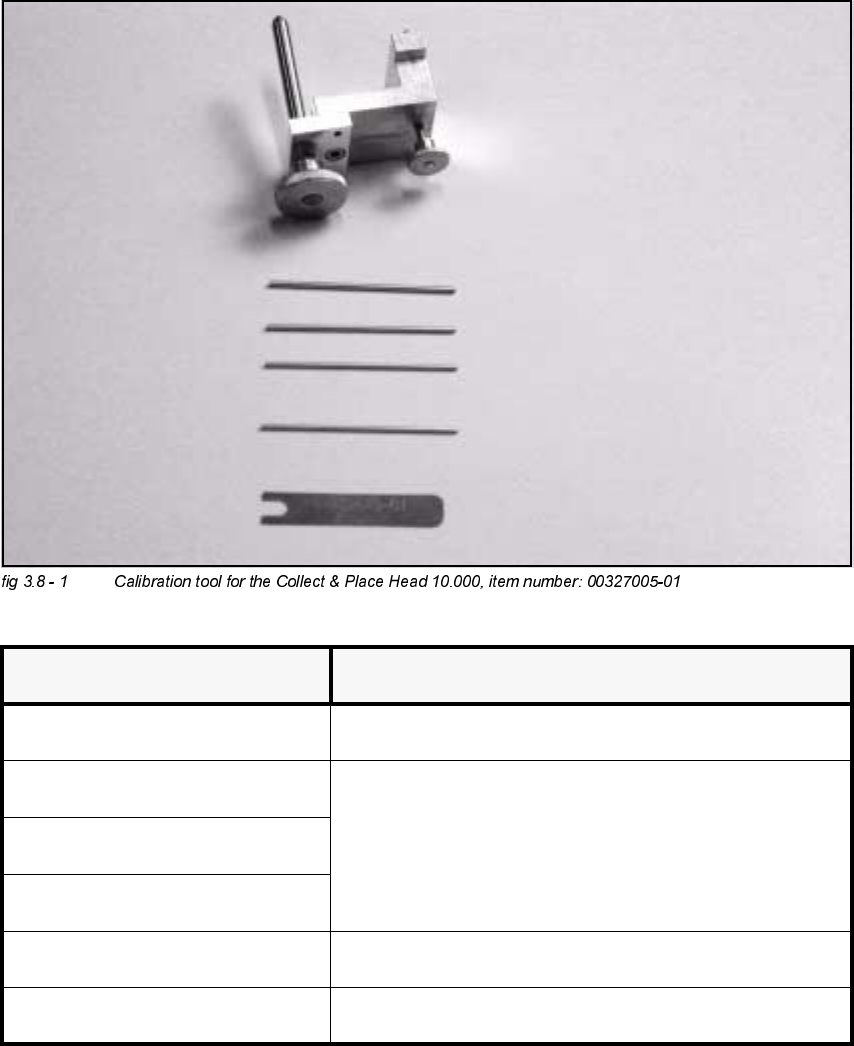

Edition 05/00 3.8 Calibration Tool for the Collect & Place Head
69
&DOLEUDWLRQ7RROIRUWKH&ROOHFW3ODFH+HDG
Gauge for the star, item no: 00326164-01
Parallel pin 1.4 mm, item no: 00326160-01
Parallel pin 1.5 mm, item no: 00326161-01
Parallel pin 1.6 mm, item no: 00326162-01
Parallel pin 1.3 mm item no: 00326163-01
Distance gauge, item no: 00325445-01
0HDVXULQJWRROV 8VDJH
Gauge for the star Adjustment of zero point correction star
Parallel pin 1.4 mm
Adjustment of distance between read head of dp - station to glass
pane of sleeve
Parallel pin 1.5 mm
Parallel pin 1.6 mm
Parallel pin 1.3 mm Adjustment of distance light barrier z-axis bottom to sleeve
Distance gauge Adjustment of the distance between valve plunge and star
3 Test Equipment Adjustment Instructions SIPLACE HS-50

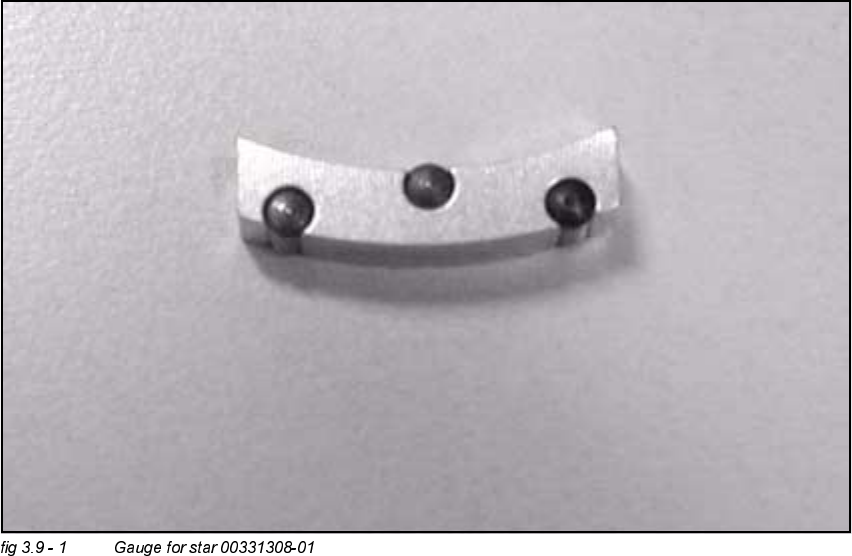

3.9 Gauge for Z-Axis Edition 05/00
70
*DXJHIRU=$[LV
$SSOLFDWLRQ
The gauge is used for the adjustment of the z-axis stop on the top.
