Adjustment Instructions SIPLACE HS -50 5 Single and Dual PCB Conveyor Edition 05/00 5.1 Settings and Illustrations 89  6LQJOHDQG'XDO3&%&RQYH\ RU  6HWWLQJVDQG,OOXVWUDWLRQV  6/,20 RGXOH,20 R…

100%1 / 182
4 Overview Voltages Adjustment Instructions SIPLACE HS-50
4.6 Measuring Voltages of the Power Supply Unit Edition 05/00
88
NOTE
Pin configuration of single connectors can be checked in the detailed circuit diagram, section 3.
Adjustment Instructions SIPLACE HS-50 5 Single and Dual PCB Conveyor
Edition 05/00 5.1 Settings and Illustrations
89
6LQJOHDQG'XDO3&%&RQYH\RU
 6HWWLQJVDQG,OOXVWUDWLRQV
 6/,20RGXOH,20RGXOHVDQG3 &%&RQYH\RU
NOTE
6/,2 = 6erialOinked ,N- / 2 utput

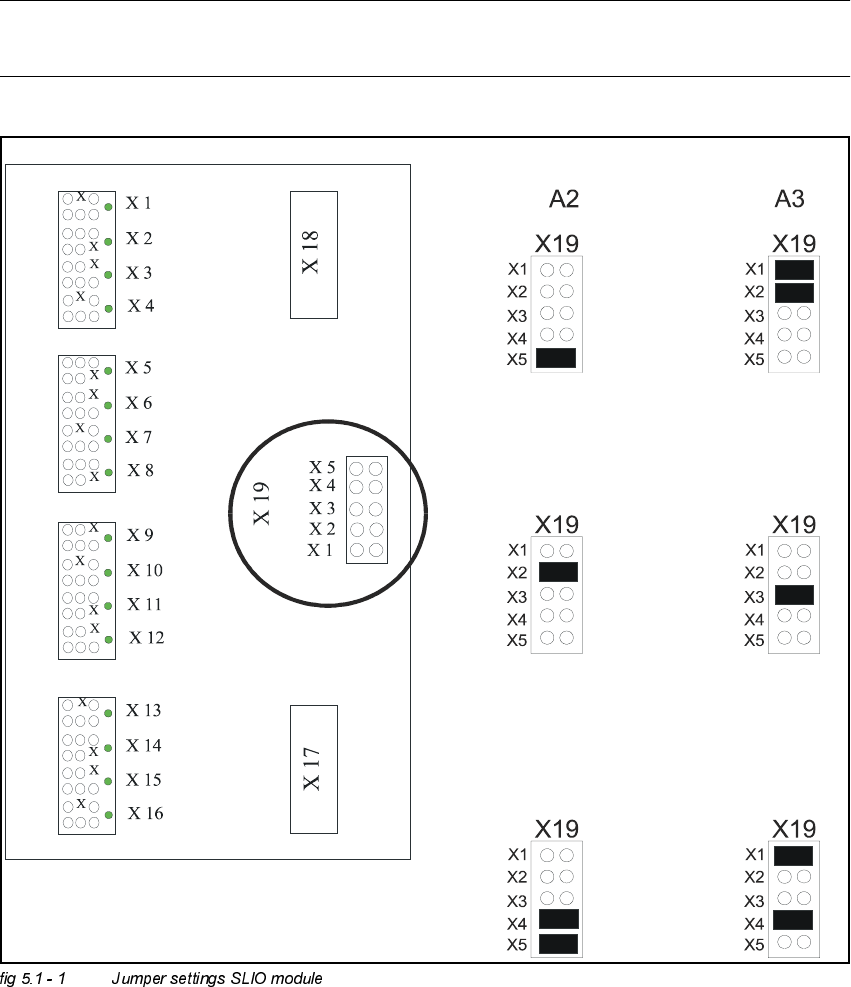

SLIO - Modul 1
SLIO module 1
SLIO - Modul 2
SLIO module 2
SLIO - Modul 3
SLIO module 3
SLIO - Modul
4
SLIO module 4
SLIO - Modul 5
SLIO module 5
SLIO - Modul
6
SLIO module 6
5 Single and Dual PCB Conveyor Adjustment Instructions SIPLACE HS-50
5.1 Settings and Illustrations Edition 05/00
90
.(<
(1) SLIO module 1 = A2
(2) SLIO module 2 = A3
(3) SLIO module 3 = option
(4) SLIO module 4 = option
(5) SLIO module 5 = PCB conveyor 1
(6) SLIO module 6 = PCB conveyor 2 (only with dual conveyor)
 &RQYH\RU&RQWURO

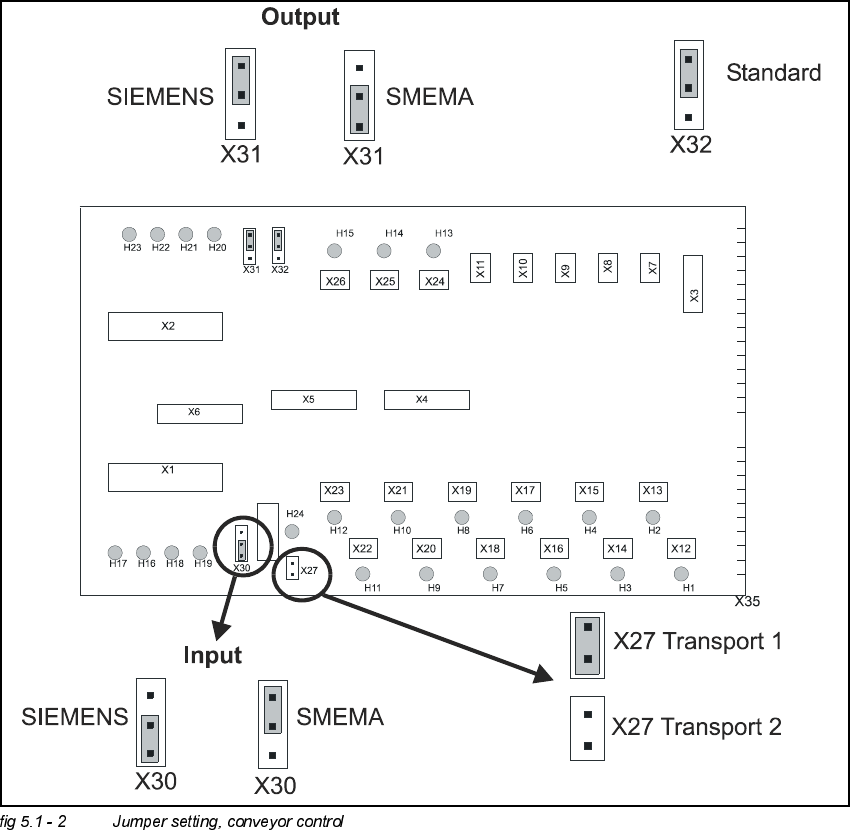

Transportsteuerung / conveyor control
Mat.Nr. / mat. no: 00329219 - 02
/
transport 1
/
transport 2
