Fitting the Vacuum Pump
Converting Placement Heads 3.5.2 Conversion for C&P12
118 Vacuum Pump Vakuumpumpe
Fitting the Vacuum Pump
3.5.2 Conversion for C&P12 Final Work
Vacuum Pump Vakuumpumpe 119
3.6
3.6 Final Work
Final Work
► Fit the cover over the vacuum pump.
► Install the used tape chute.
Compone nt Supply - Manual Tables - Fitting Pr otections - Color Version
► If you have removed the table height adjustment and the calibration tool holder, refit these.
► If you have opened the cover on the cable duct and left it up during the conversion work, close it
again now.
► Refit the center cover on the distributor and fix into place.
► Dock the component trolleys onto the SX machines.
► Re-insert the manual table into DX machines.
► Switch the machine on.
► Open the compressed air shut-off valve.
► Push the pneumatic unit into the machine.
► Close all doors.
► Switch the machine on at the main switch.
Manual tables only:
WARNING!
There is a risk of injury on manual tables without the two
protections.

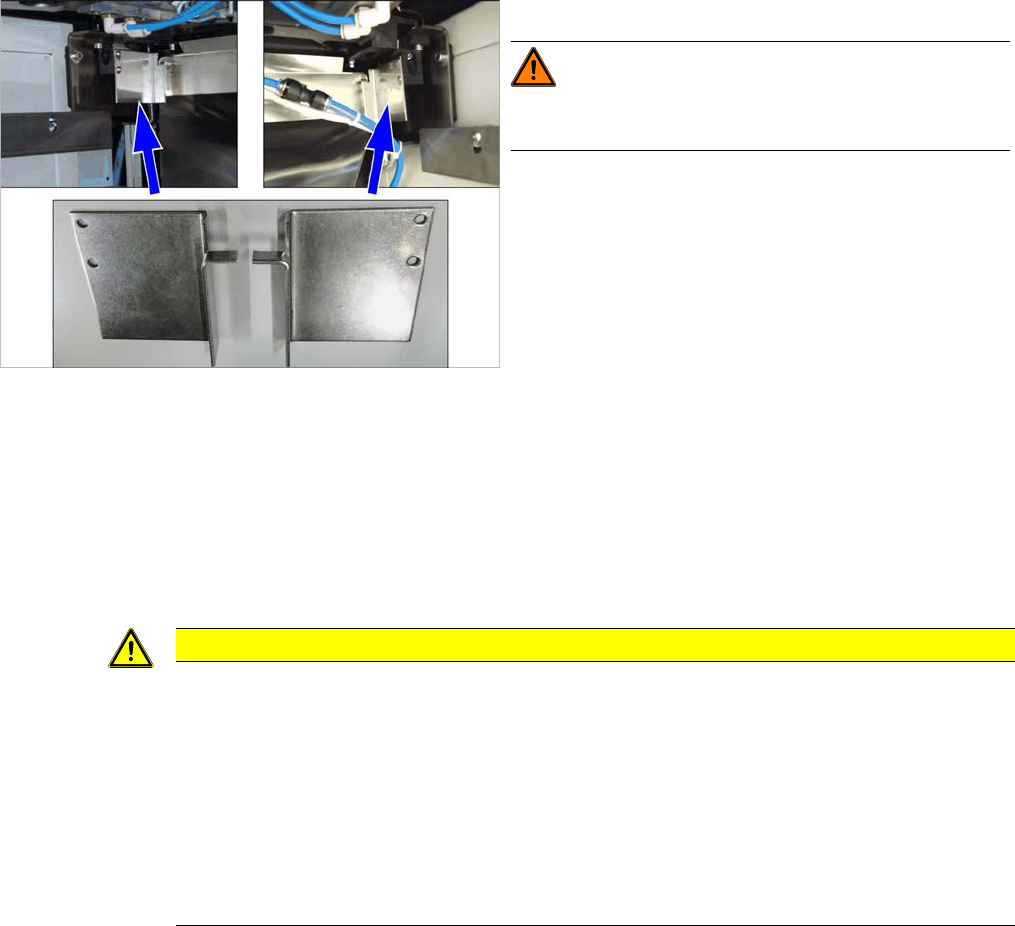

► Fit the two protections:
– Protection waste chute DX1/2 left [03094519-xx]
– Protection waste chute DX1/2 right [03094522-
xx]
CAUTION
Switch-on preconditions
Before switching on, perform the following checks to prevent injuries or serious damage to
property:
Make sure of the following before you switch the compressed air supply back on:
► Check that all hose connections are correctly assigned. Make sure that no compressed air
can get into a vacuum hose.
► Check that all conditions for switch-on of the vacuum pump and connected placement ma-
chine have been fulfilled. Read the corresponding operation manuals for more information.
► Make sure that the vacuum pump is always switched on before the machine.
