sATS30_KMA_mpl - 第15页
KMA-1505 34 34 2 9 9 16 7 26 27 9 31 9 12 26 22 33 12 12 14 3 13 21 26 15 3 12 20 10 11 6 25 11 12 6 31 28 26 22 9 12 6 29 34 5 23 8 24 35 22 9 1 8 6 19 34 8 36 30 32 17 12 8 4 18 12 37 8 34 34 2 9 9 16 7 26 27 9 31 9 12…
KMA-1505
No. Part No. Part Name Q'ty Remarks Rank
Level
No. Part No. Part Name Q'ty Remarks Rank
Level
1
$NK-2N NYLON CLIP
2 39
2
$NK-3N NYLON CLIP
1 40
3
$NK-4N NYLON CLIP
1 41
4
90112-02J010 BOLT HEX,SOCKET HEAD
12 42
5
90947-30JA00 BALL STEEL
8 43
6
90990-01J017 BOLT HEX,SOCKET HEAD
4 44
7
90990-11J003 SCREW, PAN HEAD W/W
2 45
8
91312-03008 BOLT HEX,SOCKET HEAD
14 46
9
91312-04010 BOLT HEX,SOCKET HEAD
10 47
10
KGX-M1783-00 PIN,LOCATE
4 / × 48
11
KGX-M1786-01 BASE,SPRING
4 / × 49
12
KGX-M1787-01 LEAF SPRING
8 A
50
13
KHF-M1785-00 BRACKET,SENSOR
3 / × 51
14
KHF-M178C-00 GUIDE,MAGAGINE
4 A × 52
15
KM5-M7169-00 SCREW
8 /
53
16
KMA-M1781-00 BASE 1,MAGAZINE
2 / × 54
17
KMA-M178J-00 GUIDE 1,HNS.
2 / × 55
18
KMA-M178R-00 BRKT.,SENSOR
2 / × 56
19
KMA-M178S-00 STOPPER,LEVER
2 / × 57
20
KMA-M1791-00 STAY,SENSOR
2 / × 58
21
KMA-M653D-00 SENSOR,MGZ ORG ASSY
1 B × 59
22
KMA-M653E-00 SENSOR,PLT1 ORG ASSY
1 B × 60
23
KMA-M653F-00 SENSOR,MGZ1 SET ASSY
1 B × 61
24
KMA-M653H-00 SENSOR,PLT2 ORG ASSY
1 B × 62
25
KMA-M653J-00 SENSOR,MGZ2 SET ASSY
1 B × 63
26
KMA-M653L-00 SENSOR PLT.SET ASSY
1 B × 64
27
91312-04012 BOLT HEX,SOCKET HEAD
28 65
28
98902-03008 SCREW BINDING HEAD
2 66
29
98902-03012 SCREW BINDING HEAD
1 67
30
98902-04008 SCREW BINDING HEAD
3 68
31
KMA-M17D1-00 BOTTOM PLATE ASSY.
2
without SENSOR
/ × 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
4
2

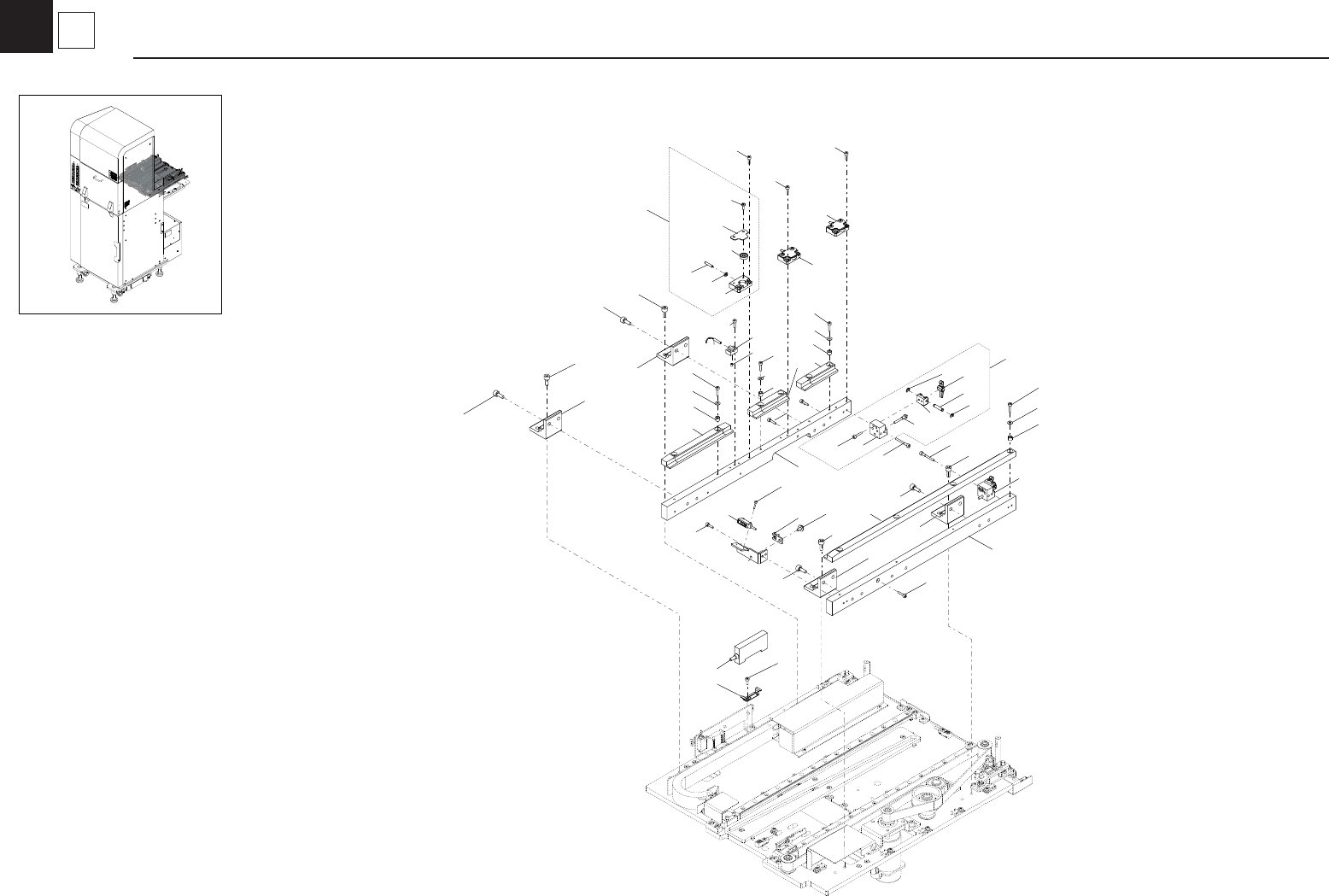

Bottom Plate
Magazine
KMA-1505
34
34
2
9
9
16
7
26
27
9
31
9
12
26
22
33
12
12
14
3
13
21
26
15
3
12
20
10
11
6
25
11
12
6
31
28
26
22
9
12
6
29
34
5
23
8
24
35
22
9
1
8
6
19
34
8
36
30
32
17
12
8
4
18
12
37
8
34
34
2
9
9
16
7
26
27
9
31
9
12
26
22
33
12
12
14
3
13
21
26
15
3
12
20
10
11
6
25
11
12
6
31
28
26
22
9
12
6
29
34
5
23
8
24
35
22
9
1
8
6
19
34
8
36
30
32
17
12
8
4
18
12
37
8
5
1
Hook guide
Hook
KMA-1505
No. Part No. Part Name Q'ty Remarks Rank
Level
No. Part No. Part Name Q'ty Remarks Rank
Level
1 $CTAM1 ANCHOR MOUNT 1 39
2 90112-02J010 BOLT HEX,SOCKET HEAD 2 40
3 90440-01J030 CIRCLIP 4 41
4 90933-02J604 BEARING 3 42
5 90990-11J003 SCREW, PAN HEAD W/W 1 43
6 90990-41J182 COLLAR 10 44
7 91312-03008 BOLT HEX,SOCKET HEAD 2 45
8 91312-03010 BOLT HEX,SOCKET HEAD 10 46
9 91312-03012 BOLT HEX,SOCKET HEAD 13 47
10 91312-03014 BOLT HEX,SOCKET HEAD 4 48
11 91312-03025 BOLT HEX,SOCKET HEAD 4 49
12 91312-05012 BOLT HEX,SOCKET HEAD 16 50
13 KGT-M9227-01 BASE,CLAMP 2 / × 51
14 KGT-M9228-01 HEAD,CLAMP 2 A × 52
15 KGT-M922F-00 SHAFT 2 2 / × 53
16 KGX-M181K-00 COVER,SENSOR 1 / × 54
17 KGX-M1841-02 BASE PLUNGER 3 /
55
18 KGX-M1842-00 COVER PLUNGER 3 /
56
19 KGX-M1843-00 PLUNGER 3 A
57
20 KGX-M1851-00 BRACKET,SPG. 2 / × 58
21 KGX-M1852-00 PLUNGER 2
A × 59
22 KGX-M18A3-02 PLUNGER ASSY. 3 A
60
23 KH5-M655A-02 FIBER 1 FIBER / × 61
24 KLX-M1802-00 FRAME,GUIDE 1 1 / × 62
25 KLX-M1803-00 FRAME,GUIDE 2 1 / × 63
26 KLX-M1804-00 BRKT.,GUIDE 4 / × 64
27 KLX-M1805-00 GUIDE,HOOK 1 1 A × 65
28 KLX-M1806-00 GUIDE,HOOK 2 2 A × 66
29 KLX-M1807-00 GUIDE,HOOK 3 1 A × 67
30 KLX-M1819-00 BRKT.,SENSOR 1 / × 68
31 KLX-M18C0-00 STOPPER ASSY. 2 A × 69
32 KLX-M653L-00 SEN.MGZ PLT CHK ASSY 1 B × 70
33 KLX-M653M-00 SEN.STG PLT CHK ASSY 1 FIBER+AMP B × 71
34 92902-03200 WASHER,PLAIN 10 72
35 92A08-03304 SCREW SET 1 73
36 95302-03700 NUT HEXAGON 3 74
37 98902-03008 SCREW BINDING HEAD 6 75
38 76
5
1
Hook guide
Hook
