80S15贴片机电路图 - 第147页

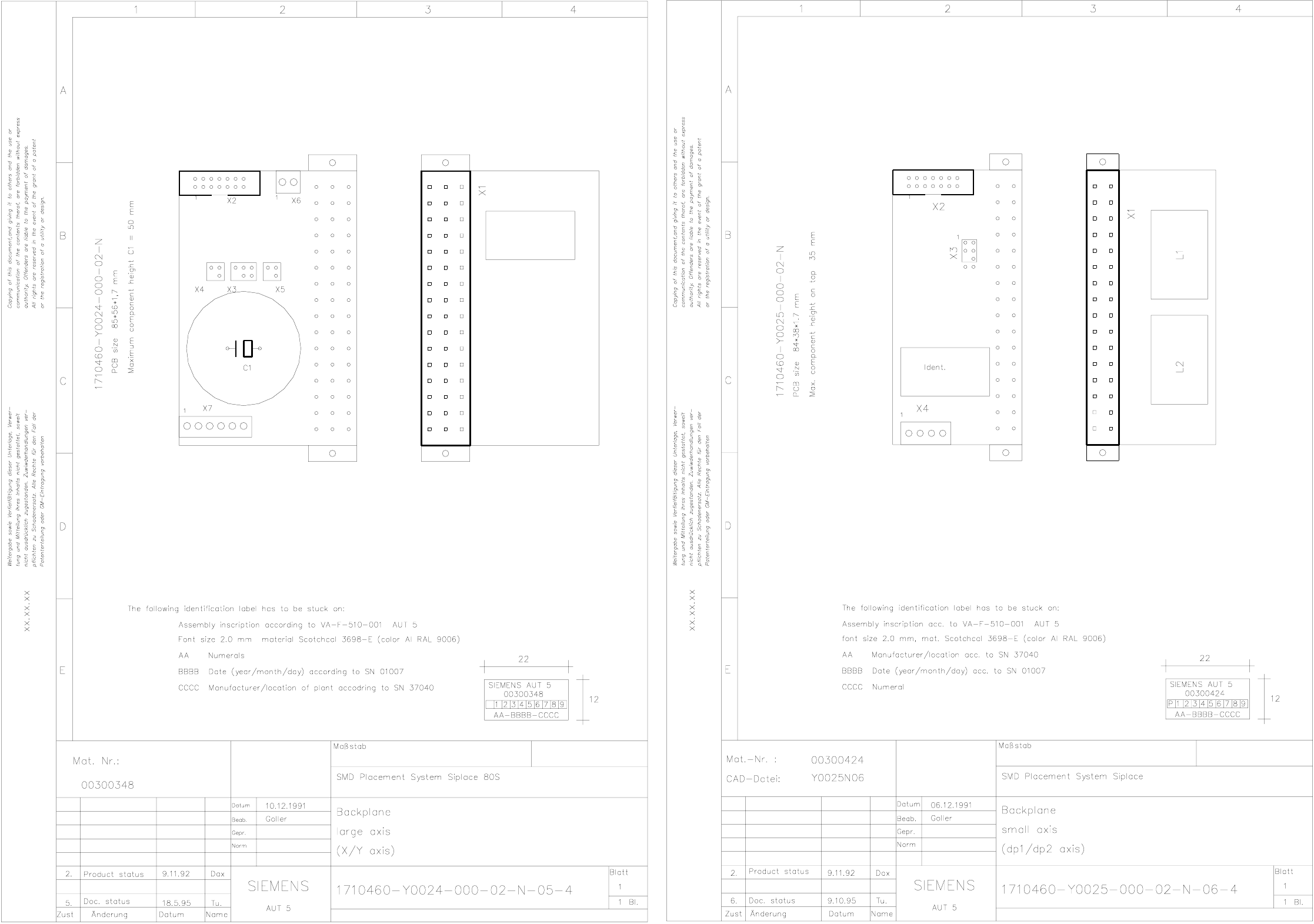

4 - 11 1710460- Y0024- 000-0 2-N-05-4 Backplane, large axis (X/ Y axis) 1710460- Y0025- 000-02-N- 06-4 Backplane, sma ll axis (dp1/dp2 axis)
4 - 10

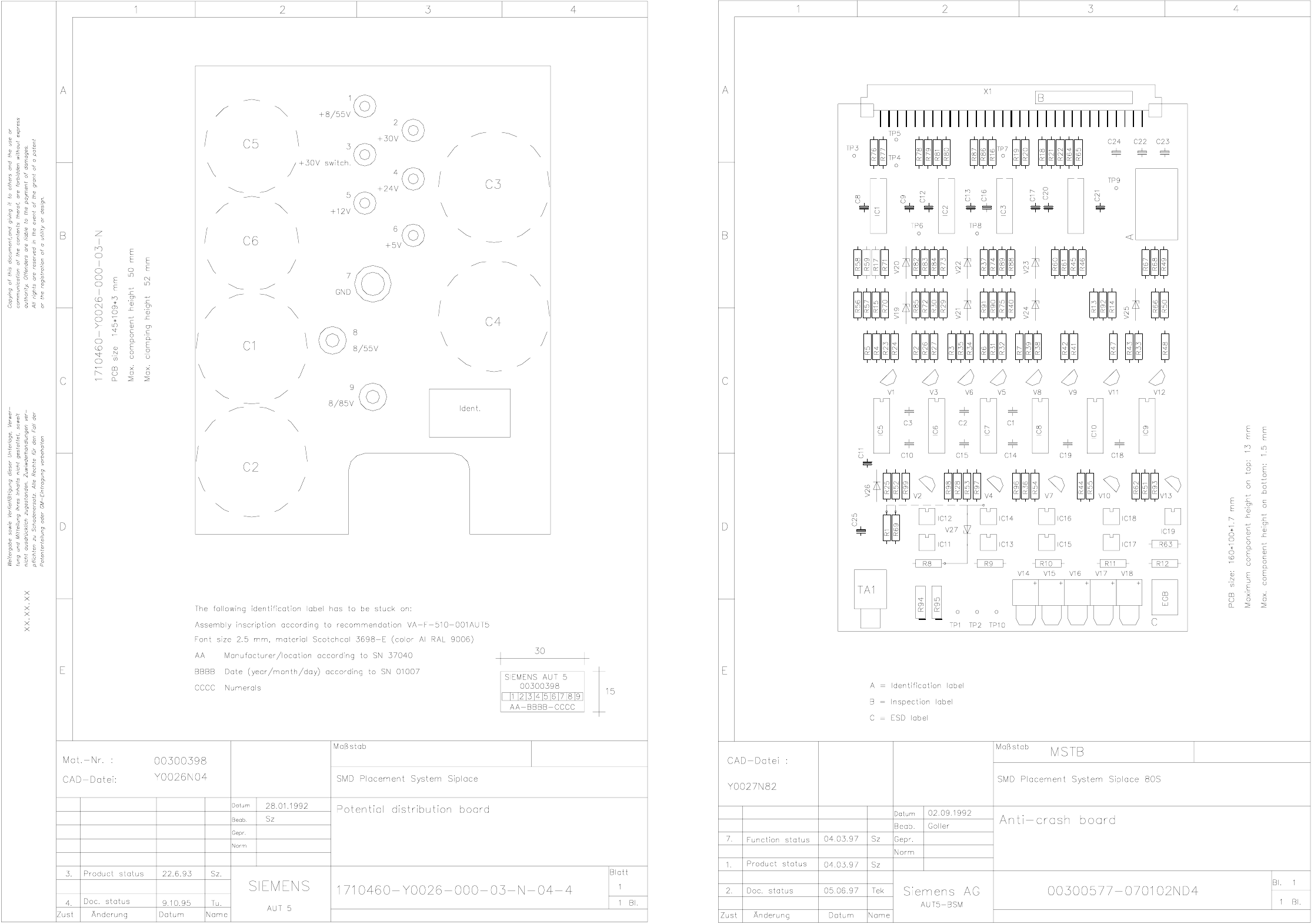

1710460-Y0026-000-03-N-04-4 Potential distribution board
00300577-070101ND4 Anti-crash board
4 - 11
1710460-Y0024-000-02-N-05-4 Backplane, large axis (X/Y axis)
1710460-Y0025-000-02-N-06-4 Backplane, small axis (dp1/dp2 axis)
4 - 12
1710460-Y0023-000-02-N-06-4 Backplane, small axis (star/z axis)
1710460-Y0010-000-01-N-03-4 Step motor control
