Symbols and Draw ing Nu mbering Sy stem SIPLAC E 80-S15/O PTIO NS Detail ed Circuit Diag rams Editi on 05/ 98 0 - 12 SIPLACE 80S-15/OPTI O NS
SIPLACE 80S-15/OPTIONS 0 - 11
SIPLACE 80-S15/OPTIONS Detailed Circuit Diagrams Symbols and Drawing Numbering System
Edition 05/98

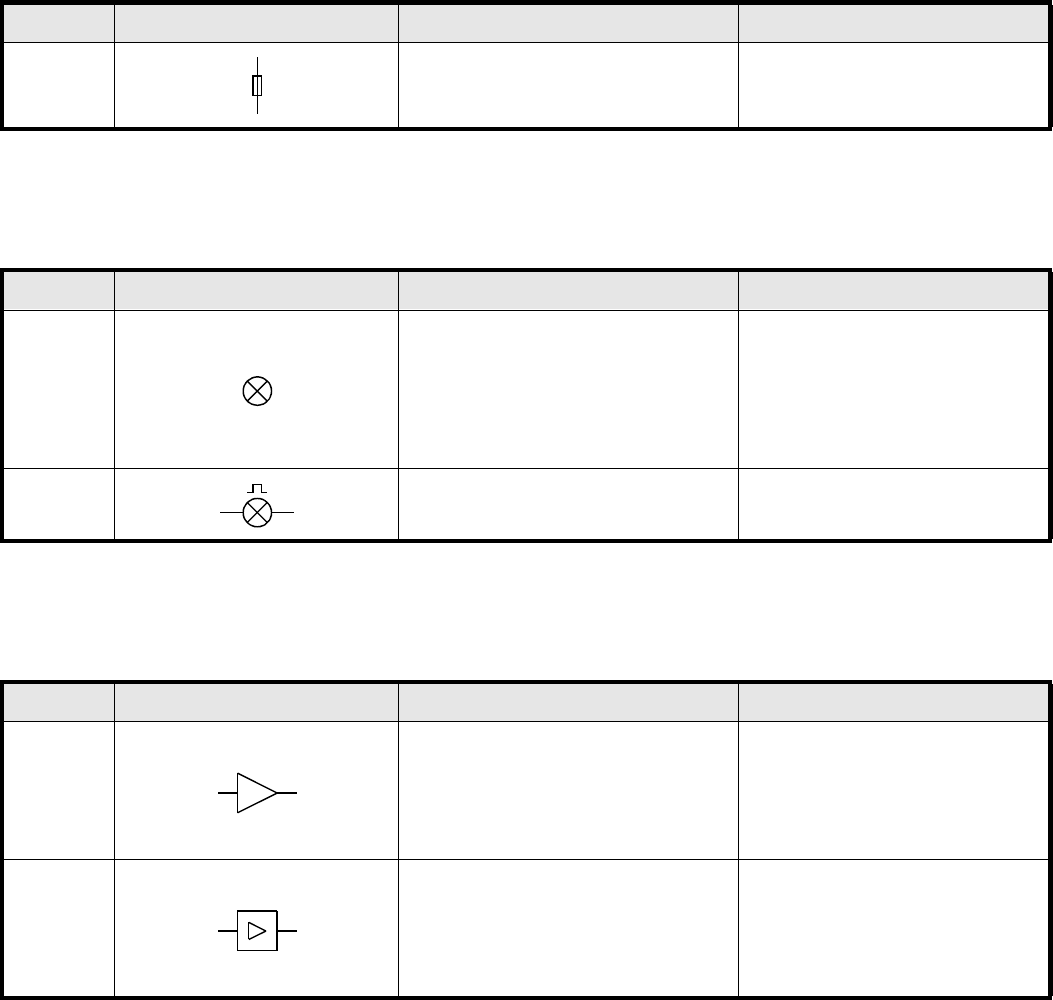

0.1.26 Sicherungen und Sicherungsschalter / Fuses and fuse-switches
0.1.27 Leuchtmelder und Signaleinrichtungen / Lamps and signalling devices
0.1.28 Verstärker / Amplifiers
Nr./No. Schaltzeichen/Symbol Beschreibung Description
07-21-01 Sicherung, allgemein Fuse, general symbol
Nr./No. Schaltzeichen/Symbol Beschreibung Description
08-10-01
Lampe, allgemein
Leuchtmelder, allgemein
RD rot
YE gelb
GN grün
BU blau
WH weiß
Lamp, general symbol
Signal lamp, general symbol
RD = red
YE = yellow
GN = green
BU = blue
WH = white
08-10-02 Leuchtmelder, blinkend Signal lamp, flashing type
Nr./No. Schaltzeichen/Symbol Beschreibung Description
10-15-01
Verstärker, allgemein
dargestellt mit Ein- und Ausgang
Anmerkung:
Die Spitze des Dreiecks muß in die
Übertragungsrichtung zeigen.
Amplifier, general symbol
Repeater, general symbol
shown with input and output
Note:
The triangle is pointed in the direc-
tion of transmission.
10-15-02
Verstärker, allgemein
dargestellt mit Ein- und Ausgang
Anmerkung:
Die Spitze des Dreiecks muß in die
Übertragungsrichtung zeigen.
Amplifier, general symbol
Repeater, general symbol
shown with input and output
Note:
The triangle is pointed in the direc-
tion of transmission.
Symbols and Drawing Numbering System SIPLACE 80-S15/OPTIONS Detailed Circuit Diagrams
Edition 05/98
0 - 12 SIPLACE 80S-15/OPTIONS
SIPLACE 80S-15/OPTIONS 0 - 13
SIPLACE 80-S15/OPTIONS Detailed Circuit Diagrams Symbols and Drawing Numbering System
Edition 05/98
0.2 Structure of the New Technical Numbering System
Document number
A document number consists of an item number, product status, document status, document type, language and for-
mat.
Item number
An item number consists of master number and function status
Function status (FS) = versions relevant to function
All documents pertaining to an item number have the same functions status. The versions of a product relevant to func-
tion are determined by the totality of the features describing the function and documented in the corresponding docu-
mentation.
Product status (PS)
The versions of a product not relevant to function are determined by the totality of the remaining features (no features
with relevance to function) and documented in the corresponding documentation.
Document status (DS)
The status of the contents of a technical document.
Document number
Item number
Example 00324139 - 02 01 04 Z D 3
Pattern
NNNNNNNN
-
NN NN NN
AAN
Main number S FS PS DS DT L F
Separator = - for standard part
Separator = S for service part
Function status as per SN 10370, Part 1
Product status as per SN 10370, Part 1
Document status as per SN 10370, Part 1
Document type
Language
Format
N = Numerical counting position
A = Alphabetic counting position
