80S15贴片机电路图 - 第33页

1 - 13 DP21-S 15 Revolver head/d p2 axis, g antry 1 SI PLACE 8 0S15 See p age 4 - 8 See pa ge 2 - 25 See p age 2 - 1 7 See pag e 2 - 17 See page 4 - 20 See p age 4 - 22 See pa ge 4 - 16 See page 4 - 17 See p age 2 - 3 8 …

1 - 12

DP12-S15 Revolver head/dp1 axis, gantry 2, SIPLACE 80S15

See page 4 - 8

See page 2 - 25

See page 4 - 20

See page 4 - 22

See page 2 - 17

See page 2 - 38

See page 1 - 19

See page 4 - 11

See page 4 - 17

1 - 13

DP21-S15 Revolver head/dp2 axis, gantry 1 SIPLACE 80S15

See page 4 - 8

See page 2 - 25

See page 2 - 17

See page 4 - 20

See page 4 - 22

See page 4 - 16

See page 4 - 17

See page 2 - 38

See page 1 - 19

See page 4 - 11

1 - 14

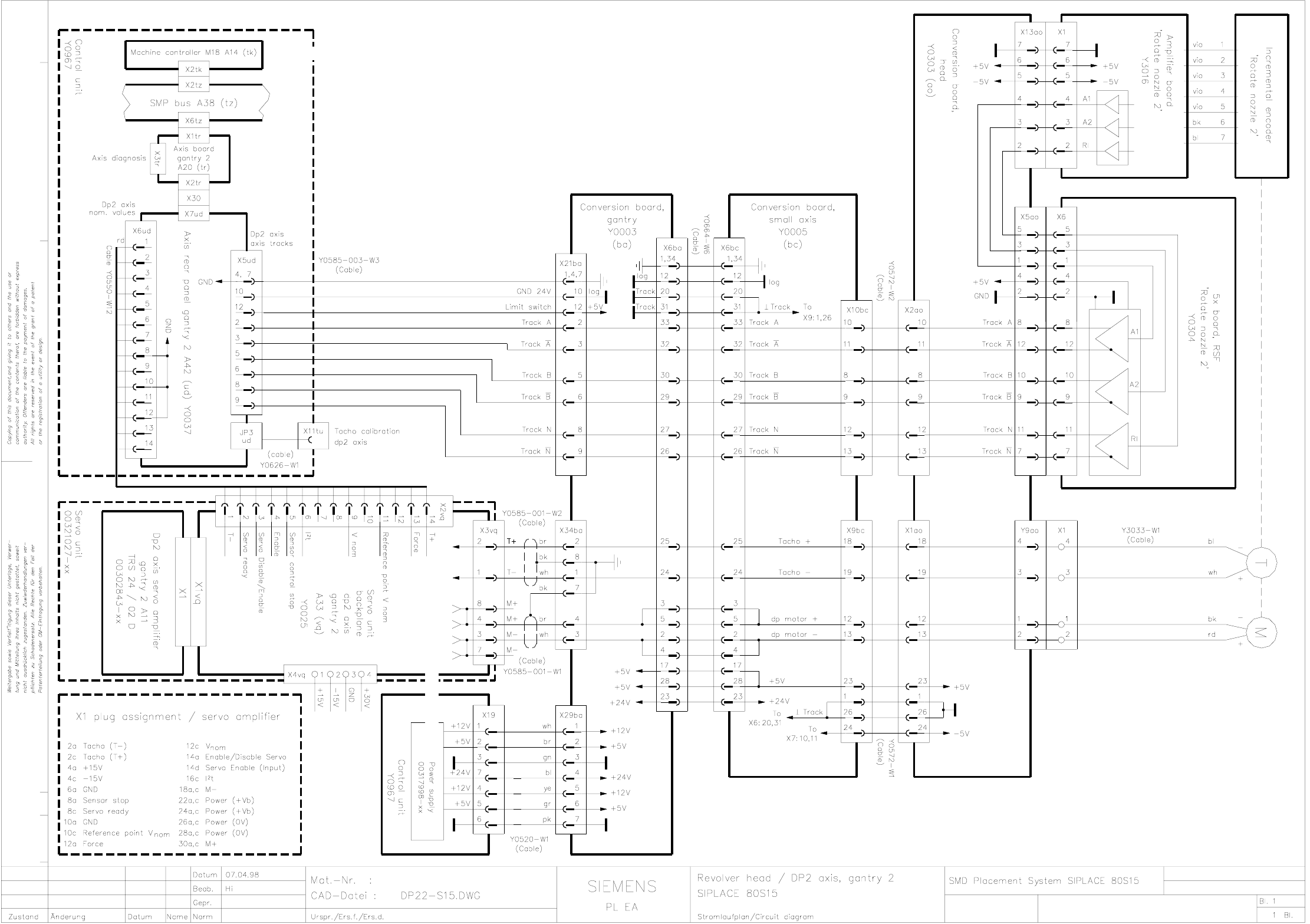

DP22-S15 Revolver head/dp2 axis, gantry 2, SIPLACE 80S15

See page 4 - 8

See page 2 - 25

See page 4 - 20

See page 4 - 22

See page 2 - 17

See page 4 - 16

See page 4 - 17

See page 2 - 38

See page 1 - 19

See page 4 - 11
