1 - 17 S15MOT1 Revolver h ead, screwd rivers 1/2, feed moto rs 1/2, centerin g station, g antry 1 , SIPLACE 8 0S15 See page 4 - 9 See p age 4 - 20 See pa ge 4 - 22 See page 4 - 16

1 - 16

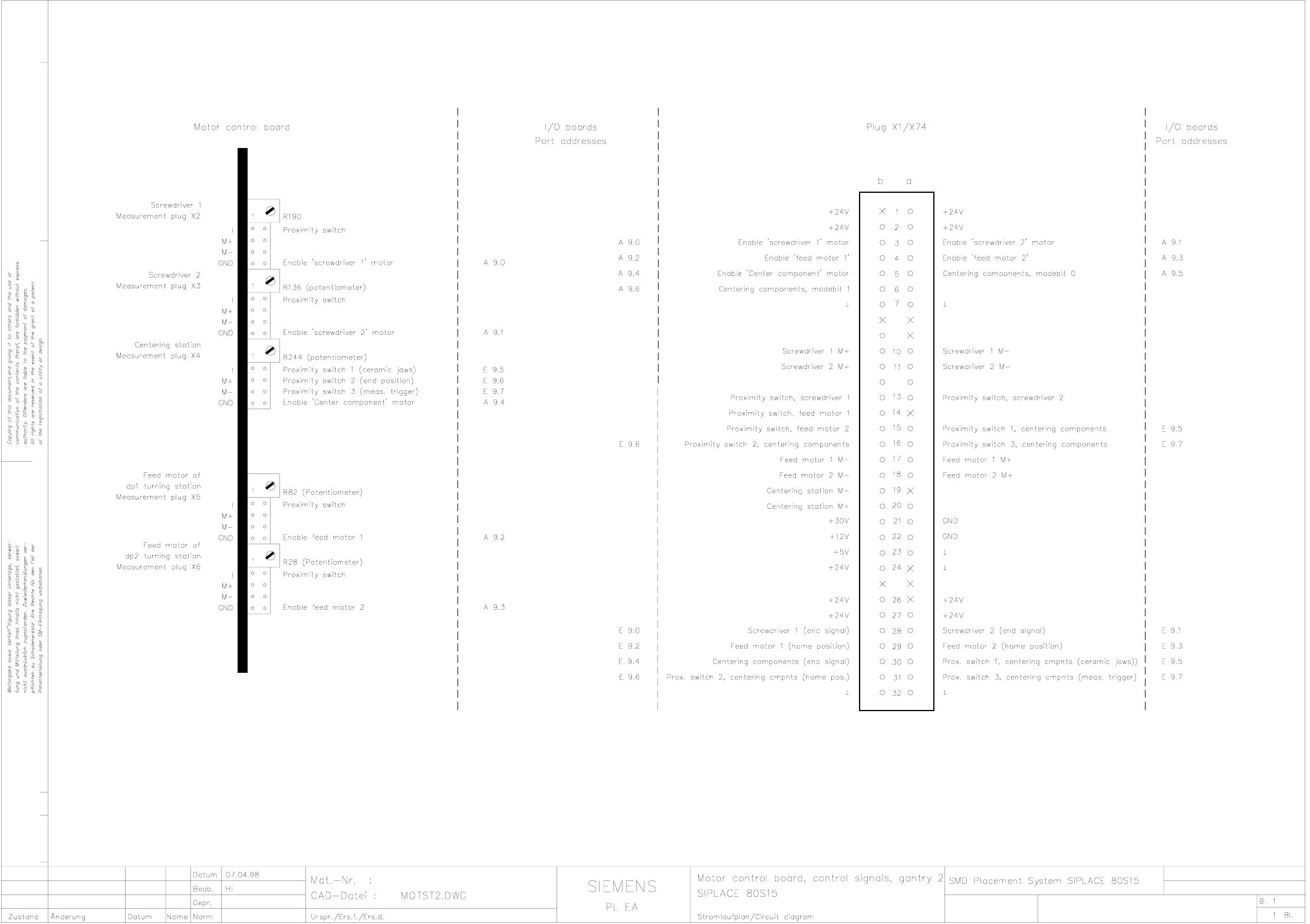

MOTST2 Motor control board, control signals, gantry 2, SIPLACE 80S15

See page 4 - 9

See page 2 - 39

1 - 17

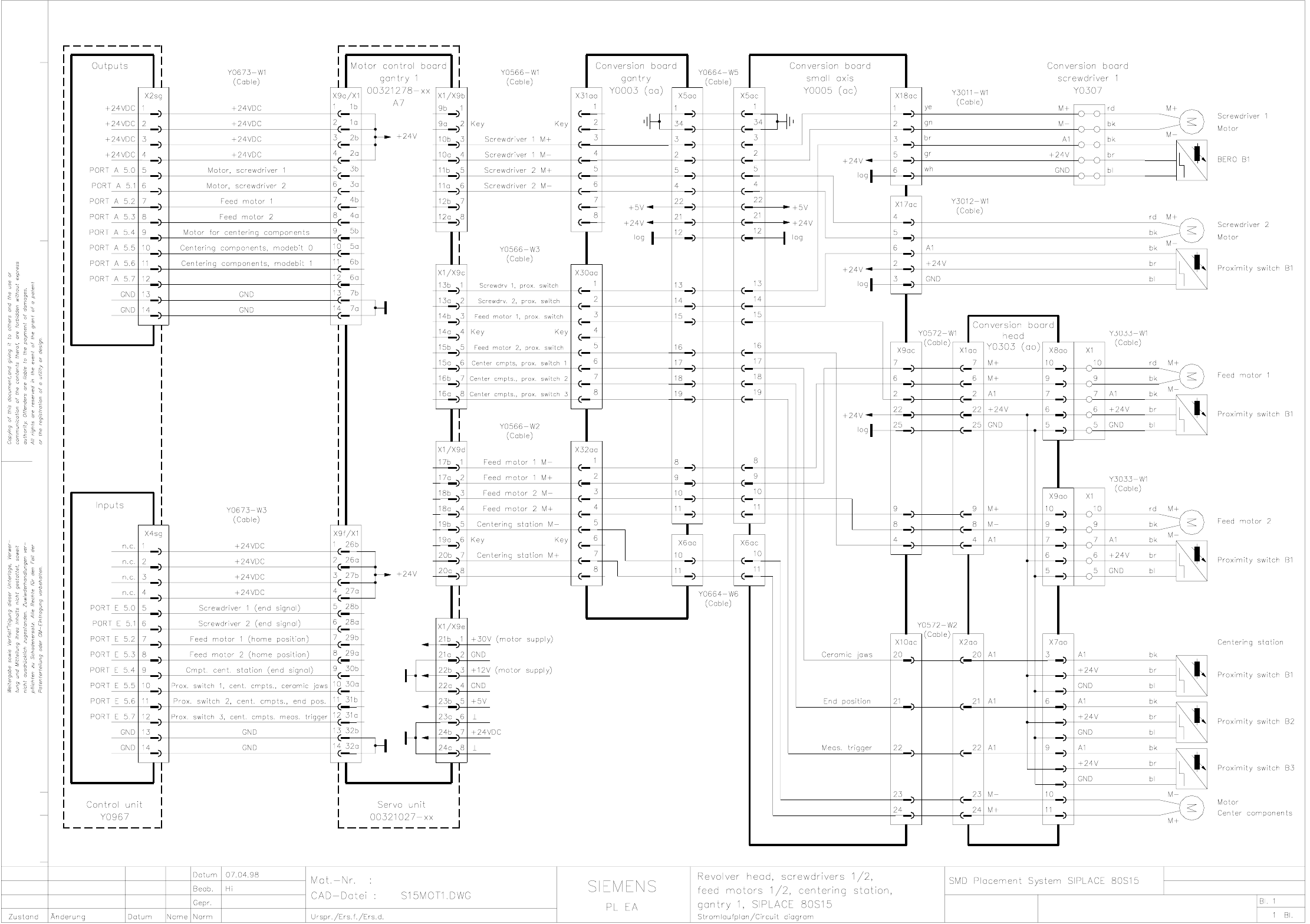

S15MOT1 Revolver head, screwdrivers 1/2, feed motors 1/2,

centering station, gantry 1, SIPLACE 80S15

See page 4 - 9

See page 4 - 20

See page 4 - 22

See page 4 - 16

1 - 18

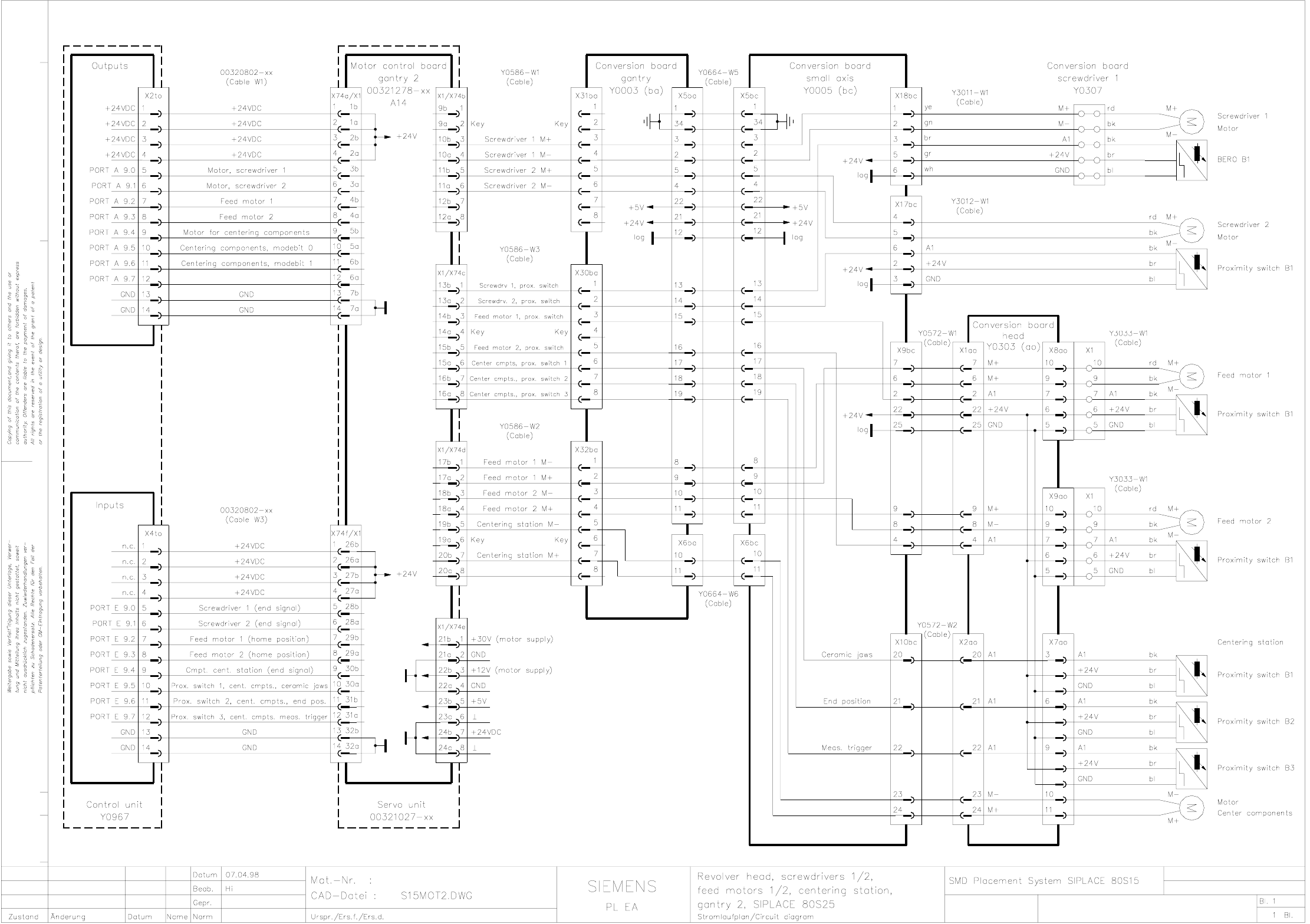

S15MOT2 Revolver head, screwdrivers 1/2, feed motors 1/2,

centering station, gantry 2, SIPLACE 80S25

See page 4 - 9

See page 4 - 20

See page 4 - 22

See page 4 - 16
