80S15贴片机电路图 - 第52页
2 - 8 1710460- Y0952- 000-0 5-L-07-3 Power sup ply (Sh. 1 of 2)
2 - 7

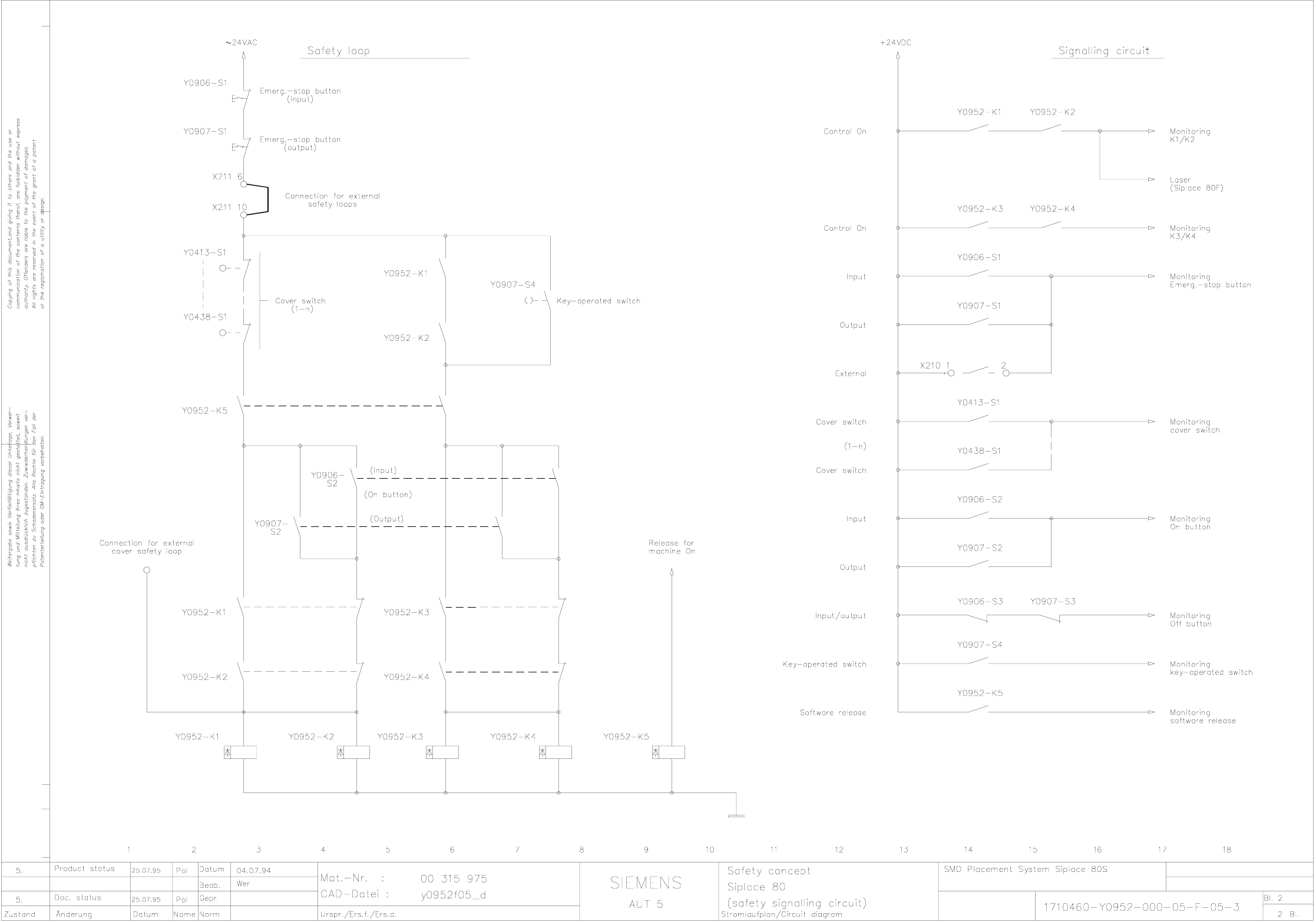

1710460-Y0952-000-05-F-05-3 Safety concept Siplace 80 (safety signalling circuit) (Sh. 2 of 2)
2 - 8

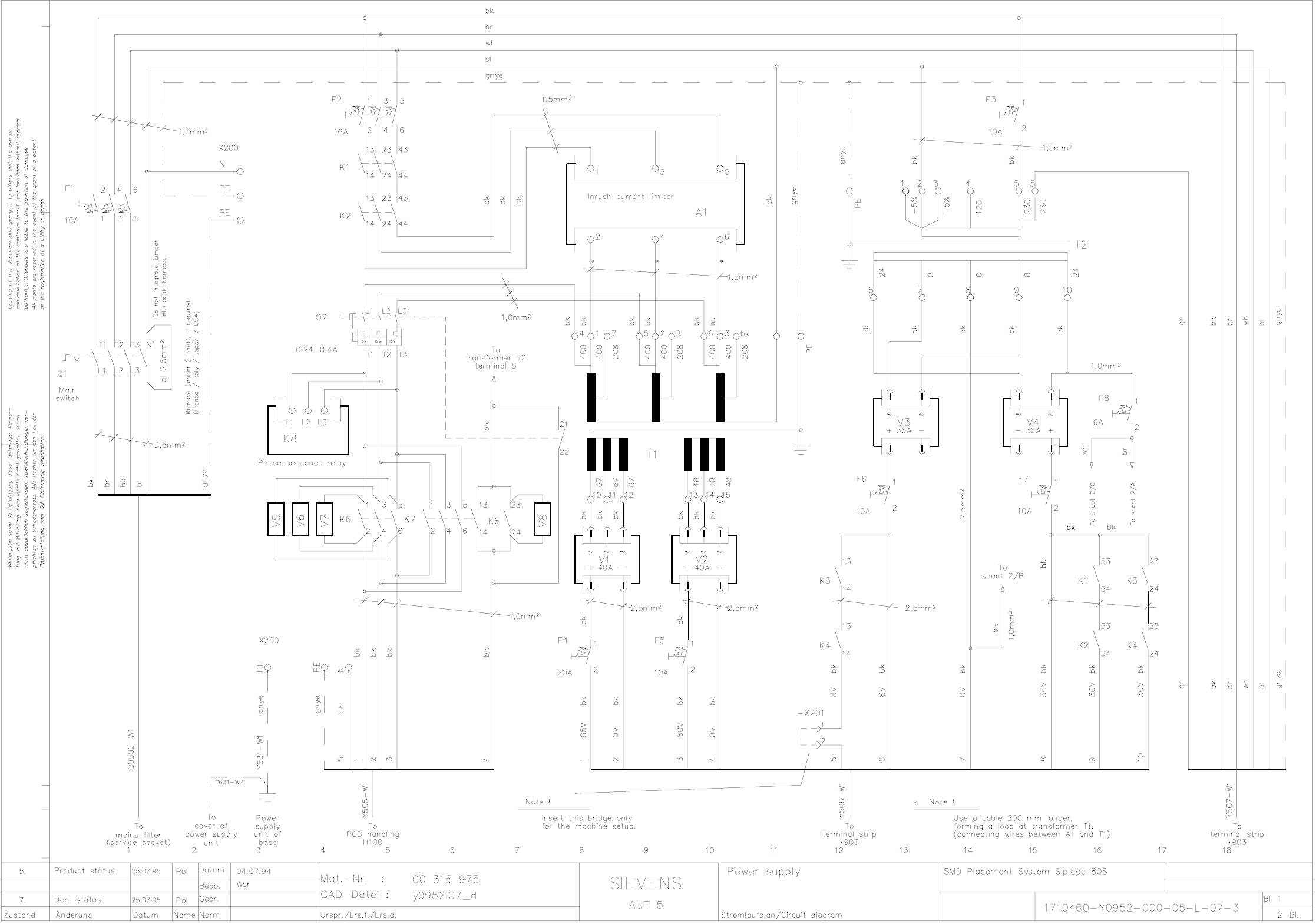

1710460-Y0952-000-05-L-07-3 Power supply (Sh. 1 of 2)
2 - 9

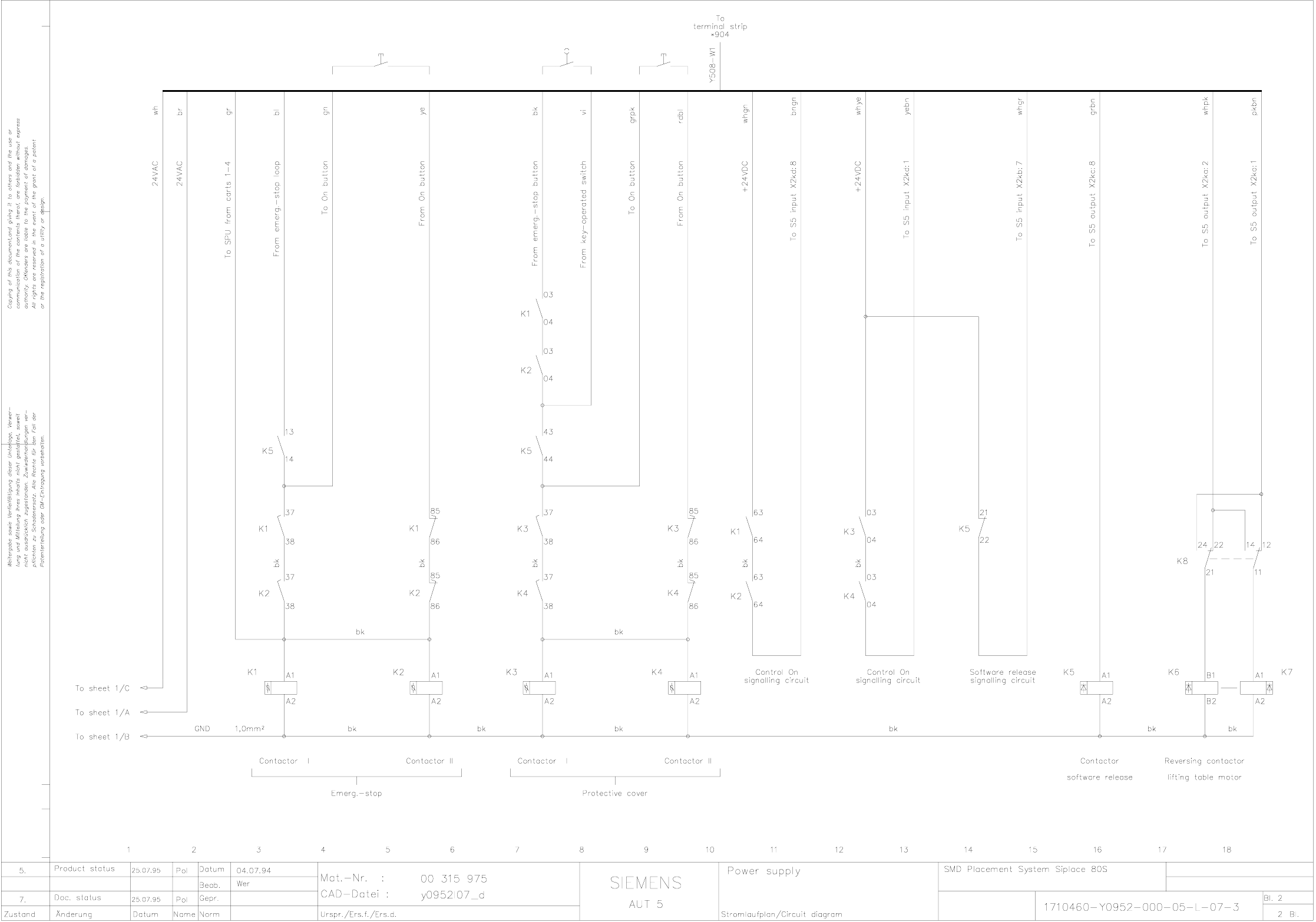

1710460-Y0952-000-05-L-07-3 Power supply (Sh. 2 of 2)
