2 - 46 1710460- Y0903- 000-0 8-L-13-3 T ermina l strip, r ighthan d side ( voltage rectificati on)
2 - 45

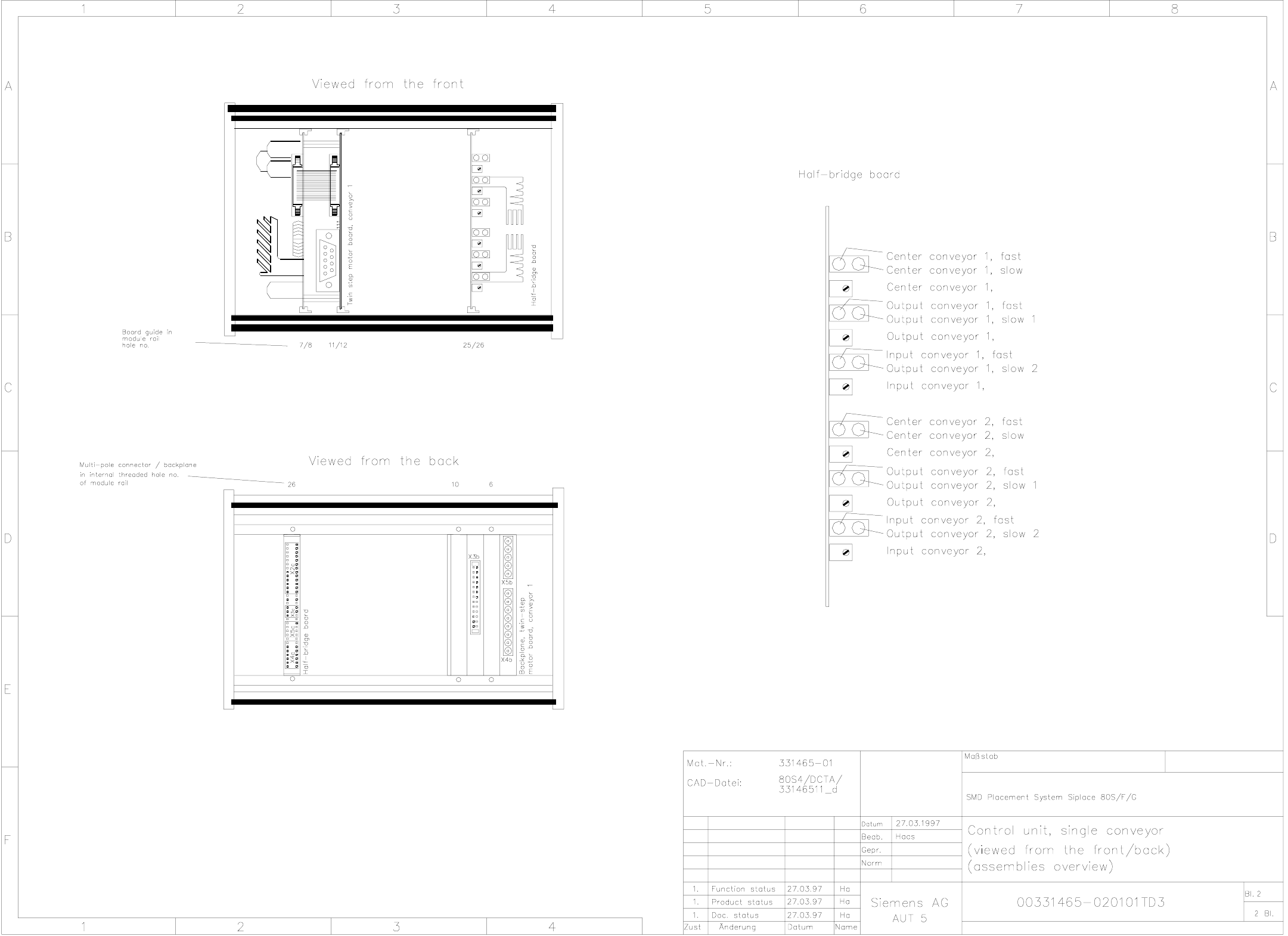

00331465-010101TD3 Control unit, single conveyor (viewed from the front/back),
assemblies overview (Sh. 2 of 2)
2 - 46

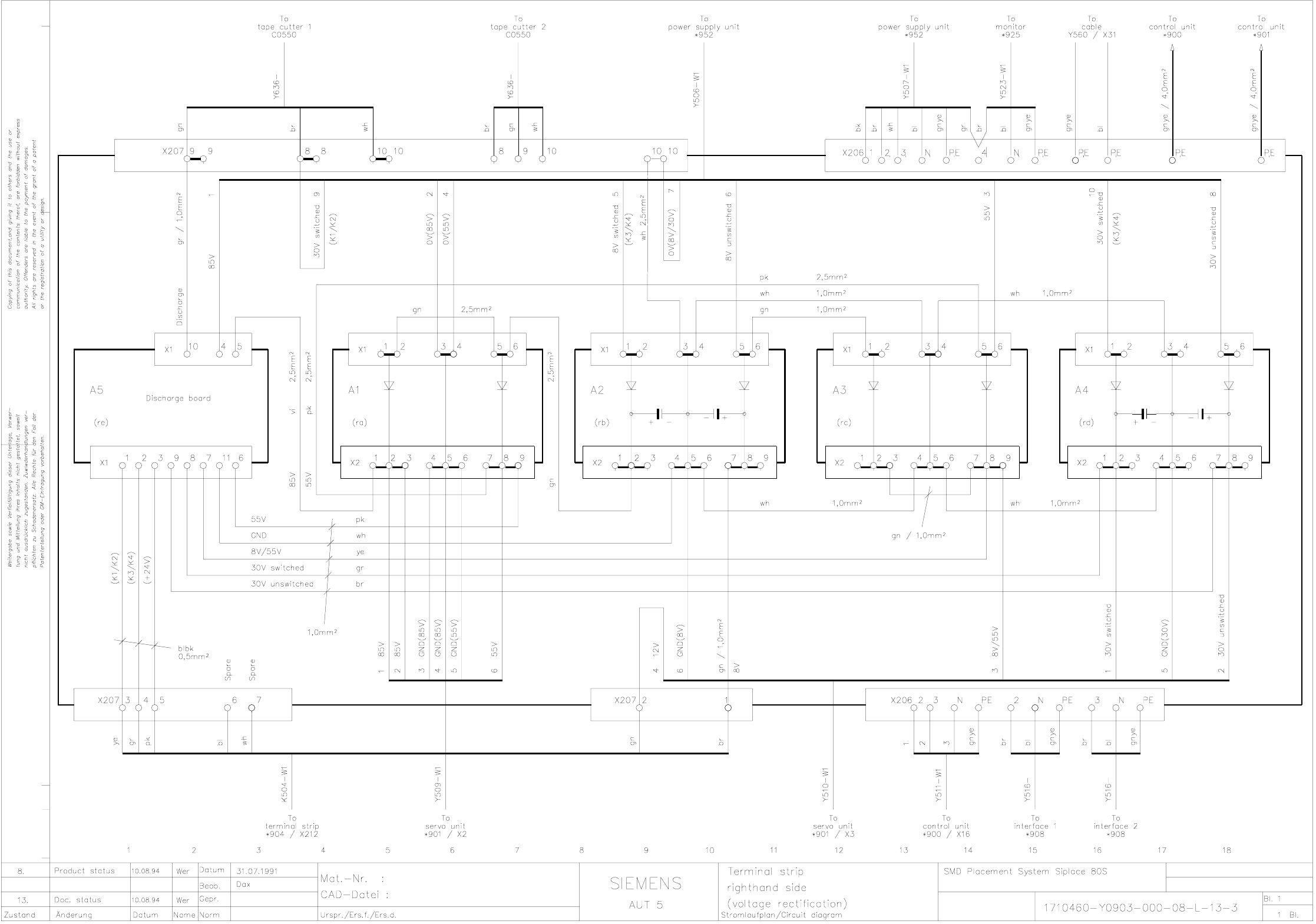

1710460-Y0903-000-08-L-13-3 Terminal strip, righthand side (voltage rectification)
2 - 47

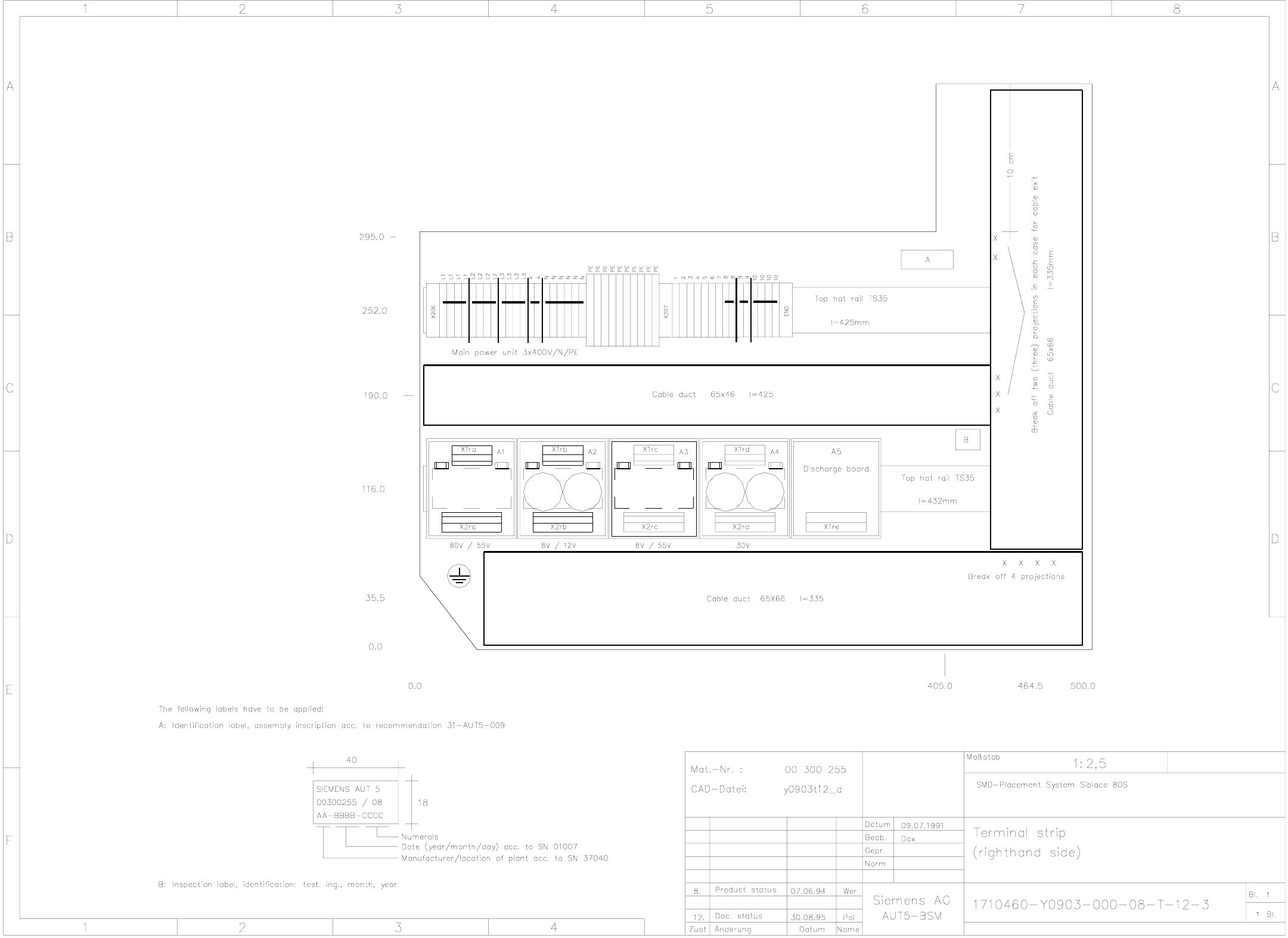

1710460-Y0903-000-08-T-12-3 Terminal strip (righthand side)
