09.01.2018 Page 23 SIPLACE Smart Pin Support for X Series S

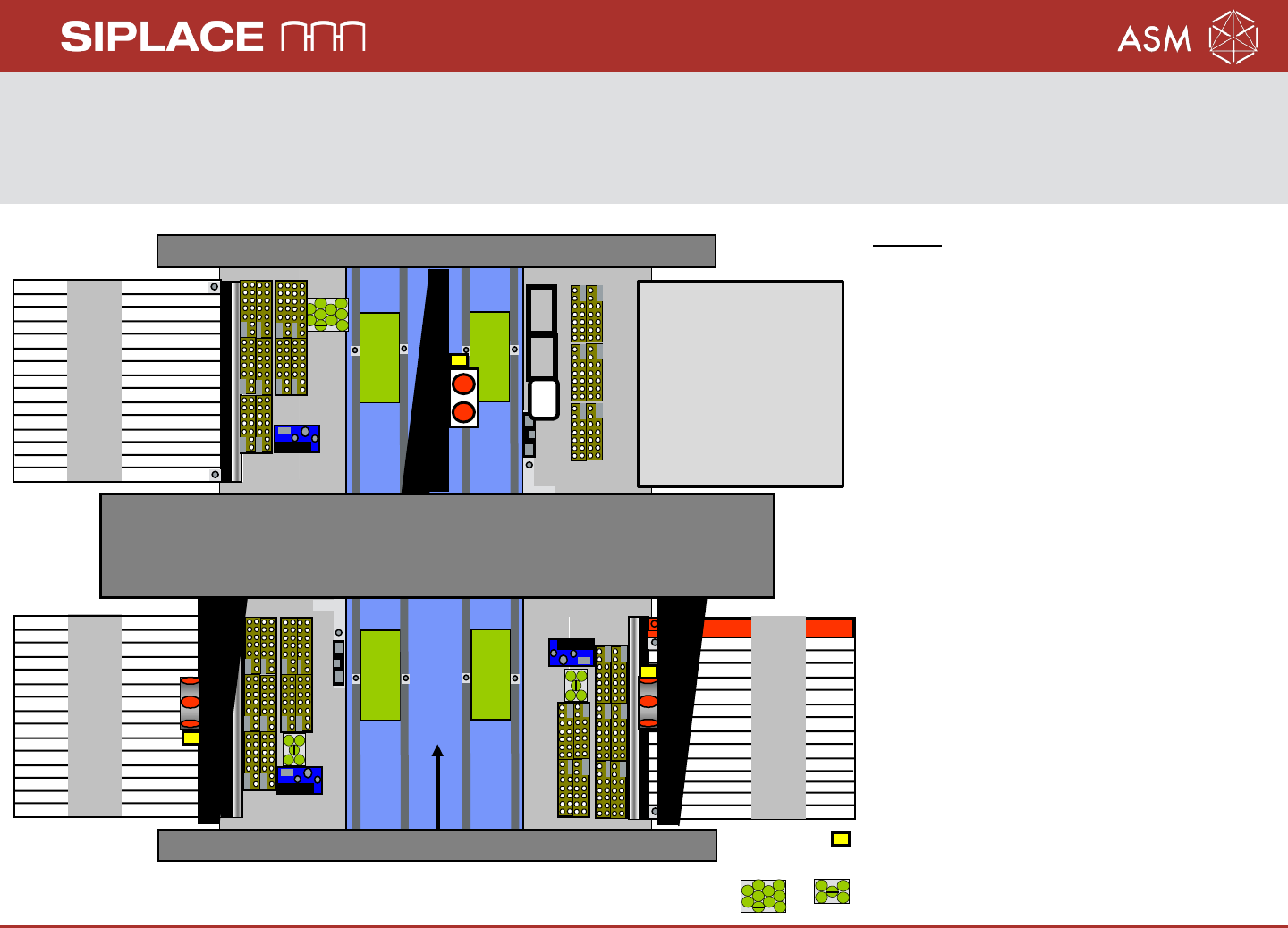

Configuration 4 - SPS on X3 S with MTC2
Note:
- 3 tracks on location 1 are
not reachable because of
the Pin Picker
- Dummy Feeder with Fiducial
- Table position 3
- Gantry 1 Pin Picker left
- Gantry 3/4 Pin Picker right
- one SPS magazine W5 PA1
- Max two rows nozzle changer
in PA1
- SPS Pin Picker (Left/Right)
- SPS magazine Q10/W5
Siplace X3 S
Location 3
Location 1
Gantry 1
Location 4
Gantry 4
Gantry 3
Location 2
MTC2
FC/3D
SST33
Reject
Bin
09.01.2018 Page 24 SIPLACE Smart Pin Support for X Series S
Parts for Configuration 4 SPS – X3 S
SPS package for X4 S include 2x PinPicker right, 2x PinPicker left and 20 pins
1x Sales-Article No.: 00119999-01 Smart Pin Support Pin Picker X3 S
1x 03089903-xx SPS PinPicker left
2x 03089904-xx SPS PinPicker right
4x 00119995-xx SmartPinSupport set 5 Pins
Additional parts:
2x 00119998-xx Smart Pin Support Pin magazine W5
1x 03098557-xx Pin magazine Q10 cpl. SPS (set incl. Holder)
2x 03094012-xx Spacer f. SPS (bumper for x axis 1/3 at the gantry root)
1x 00519876-xx COT-X Filling with fidcuial 2 Slots (1x per machine for location 1)
2x 03089888-xx Basic assembly PPW 2 array/W5 magazine (For second nozzle changer rows and W5
magazines)
1x 03099054-xx IC camera adaptor assembly SX4a (Adapter for magazin holder Q10
magazine)
