YS24X_mpl_je - 第19页
KKT -1 101 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. …
KKT-1101
22
26
27
27
43
49
41
47
36
28
35
38
30
31
44
53
52
8
4
49
21
46
2
41
47
9
10
51
32
36
32
29
35
23
38
50
47
40
47
40
3
51
14
19
6
16
35
42
45
24
1
37
25
39
42
17
18
15
49
48
35
45
33
34
50
7
47
41
46
21
35
20
20
43
5
54
11
12
13
35
3
3

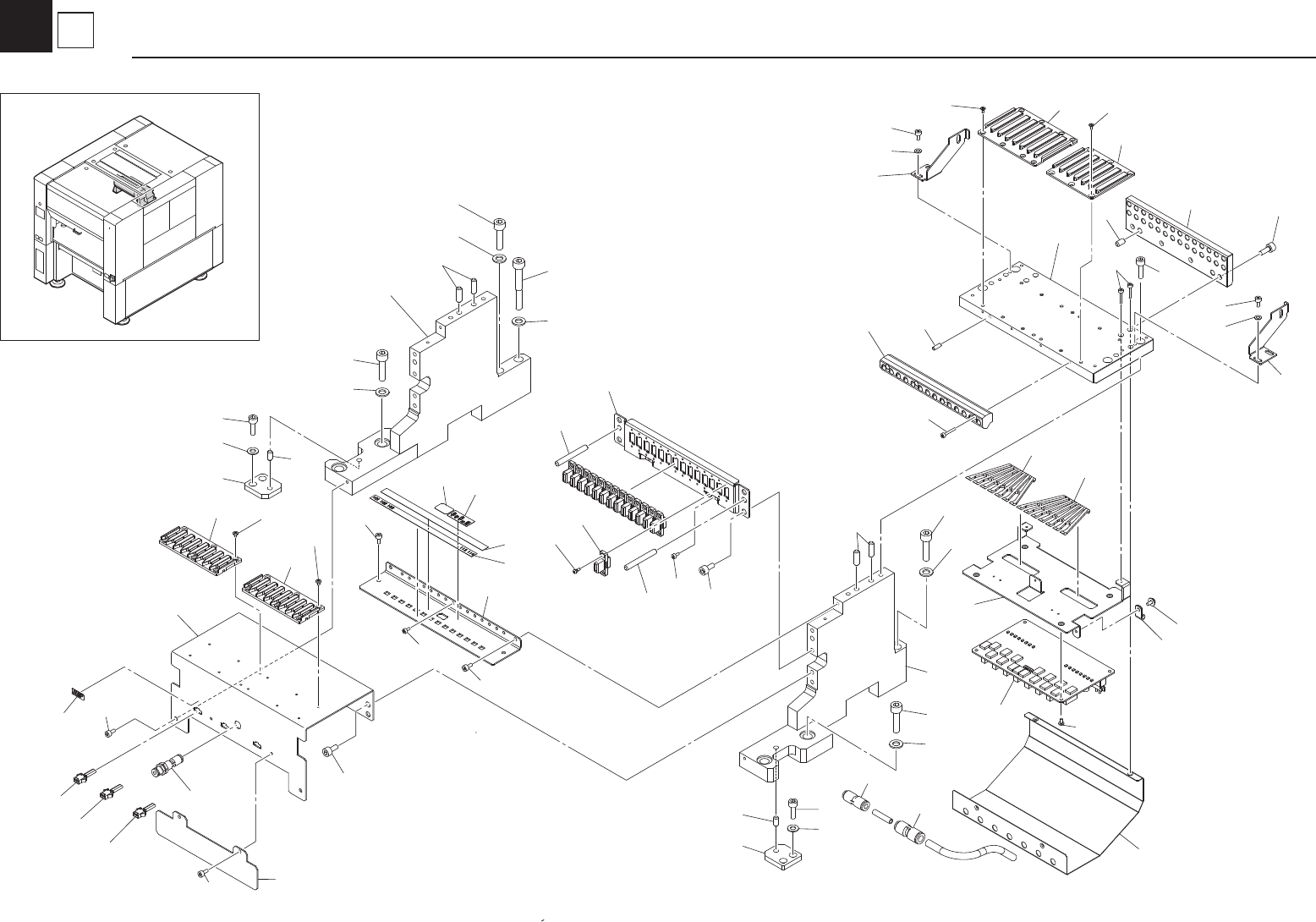

Feeder Holder Fix 14
Feeder Holder
KKT-1101
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KKT-M3401-00 PLATE,FEEDER 12-14 1 /
Í
39
91312-06020 BOLT HEX.SOCKET HEAD 4 M6X20
2
KKT-M3405-00 STAND 1
1
/
Í
40
91312-08030 BOLT HEX.SOCKET HEAD
4
M8X30
3
KKT-M3406-00 STAND 2 1 /
Í
41
91312-08060 BOLT HEX.SOCKET HEAD 3 M8X60
4
KKT-M340F-00 BRACKET,BOARD 1 /
Í
42
98702-03006 SCREW FLAT HEAD 14 M3X6
5
KKT-M340H-00 PLATE,INDICATOR 1 /
Í
43
98902-03004 SCREW BINDING HEAD 12 M3X4
6
KKT-M340J-00 PLATE,CONNECTOR 1 /
Í
44
98902-03006 SCREW BINDING HEAD 4 M3X6
7
KKT-M340N-00 COVER,BOARD 1 /
Í
45
92902-04600 WASHER PLAIN 4
8
KKT-M4476-00 FDR.CTRL.BOARD ASSY 1 B
Í
46
92902-06200 WASHER PLAIN 4
9
KHY-M37E1-10 LIGHT GUIDE,L 1 /
Í
47
92902-08600 WASHER PLAIN 7
10
KHY-M37E1-20 LIGHT GUIDE,R 1 /
Í
48
99480-04012 PIN,PARALLEL 1
11
KHY-M349J-40 LABEL,INDICATOR 1 /
49
99480-06012 PIN,PARALLEL 3
12
KHY-M379K-10 LABEL,LED POSI. 1 /
50
99480-06020 PIN PARALLEL 4
13
KHY-M379L-00 LABEL,LED 1 /
51
99480-06050 PIN PARALLEL 2
14
KHY-M66TE-00 HNS,F.CTRL - FDR 14 C
Í
52
$NK-3N NYLON CLIP 2 /
15
KKT-M340C-00 PLATE,FRONT 1 /
Í
53
90990-11J003 SCREW,PAN HEAD W/W 2
16
KKT-M340G-00 SHAFT GUIDE 1 /
Í
54
KHY-M3430-00 LABEL,FEEDER 1 /
17
KKG-M371R-00 RAIL GUIDE 12P 1 /
55
18
KKT-M340E-00 RAIL GUIDE 12P 1 /
56
19
KHY-M372M-00 SCREW,STAD 28 /
Í
57
20
KKG-M372R-00 GUIDE,FEEDER UNDER 2 /
58
21
KHY-M34J1-00
PLATE,FEEDER POSI. 2 /
Í
59
22
KV8-M3758-00 SEAL(DUMP) 1 /
60
23
KKT-M340K-11 BRACKET 2,MANIFOLD 1
/
Í
61
24
KKT-M3T0X-00 STAY L 1 /
Í
62
25
KKT-M3T0X-10 STAY R 1 /
Í
63
26
KKT-M66RL-01 HNS,FDR DI FIX 1 /
64
27
KKT-M66RM-00 HNS,FDR DO FIX 1 S-ATS /
65
28
KKT-M340M-00 COVER,PLATE 1 1 /
66
29
90990-42J047 JOINT 1 /
67
30
$USD6-4 JOINT 1
/
68
31
$USD8-6 JOINT 1 /
69
32
91312-03006 BOLT HEX.SOCKET HEAD 3 M3X6
70
33
91312-03016 BOLT,HEX.SOCKET HEAD 4 M3X16
71
34
91312-03018 BOLT HEX.SOCKET HEAD 4 M3X18
72
35
91312-04008 BOLT HEX.SOCKET HEAD 12 M4X8
73
36
91312-06012 BOLT HEX.SOCKET HEAD 8 M6X12
74
37
91312-06014 BOLT HEX.SOCKET HEAD 4 M6X14
75
38
91312-06018 BOLT HEX.SOCKET HEAD 4 M6X18
76
3
3
Feeder Holder Fix 14
Feeder Holder
KKT-1101
53
26
57
25
57
61
24
46
23
52
54
54
55
54
55
55
9
43
59
59
44
44
48
48
12
58
58
16
21
46
47
58
4
51
51
59
33
56
42
32
44
49
57
51
28
29
22
10
14
14
28
60
57
29
22
20
3
34
35
57
51
51
57
24
31
41
41
40
51
59
59
49
2
45
39
65
44
38
65
44
19
67
5
7
27
30
13
50
17
66
62
66
20
47
21
46
58
15
45
8
58
46
10
25
26
53
44
32
58
11
52
23
54
55
6
5
18
27
30
1
45
59
50
57
36
37
57
64
64
63
59
44
48
48
44
F2, R2
F2, R2
F1, R1
3
4

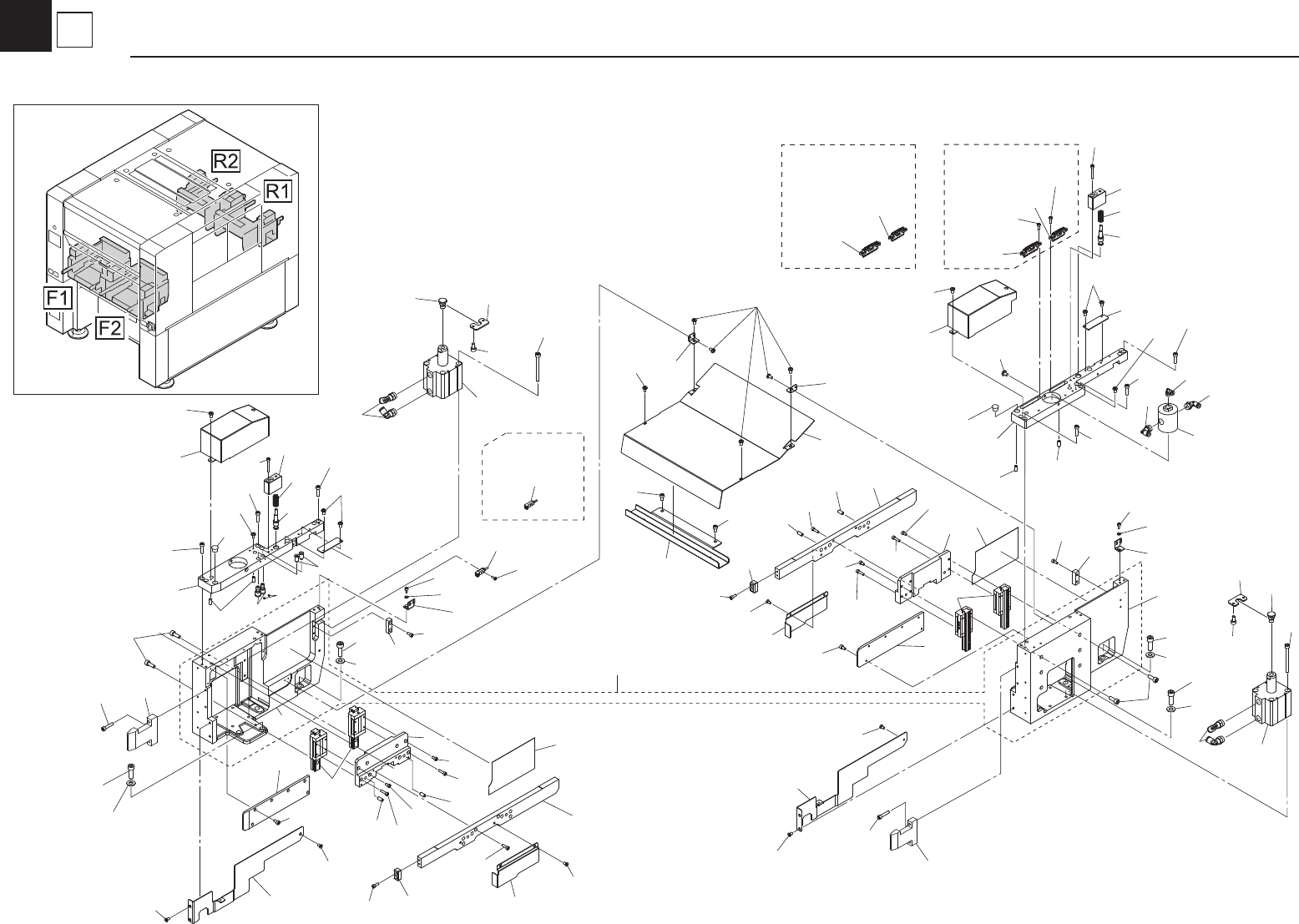

Clamp Unit
Feeder Holder
