YS24X_mpl_je - 第51页

KKT -1 101 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. …

100%1 / 100
KKT-1101
3
28
30
30
18
31
14
30
8
30
8
17
26
6
14
31
8
30
18
30
8
30
14
31
30
20
10
12
2
25
28
5
23
29
29
24
15
32
23
9
15
32
16
19
4
21
32
13
17
25
2
12
1
16
10
20
11
7
8
30
7
8
30
14
31
35
33
33
21
21
34
27
22
29
L>R
L>R
(R>L)
7
6

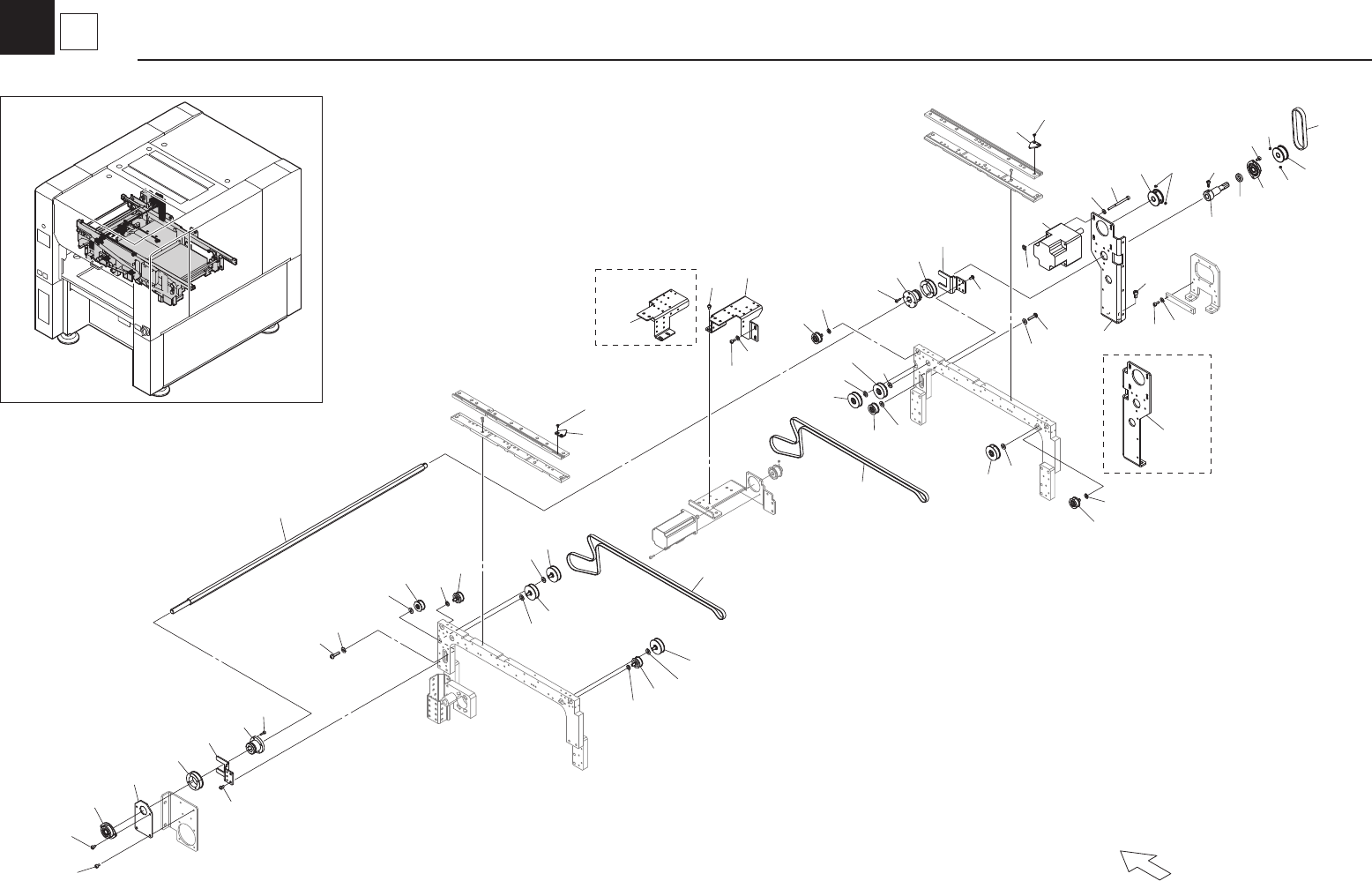

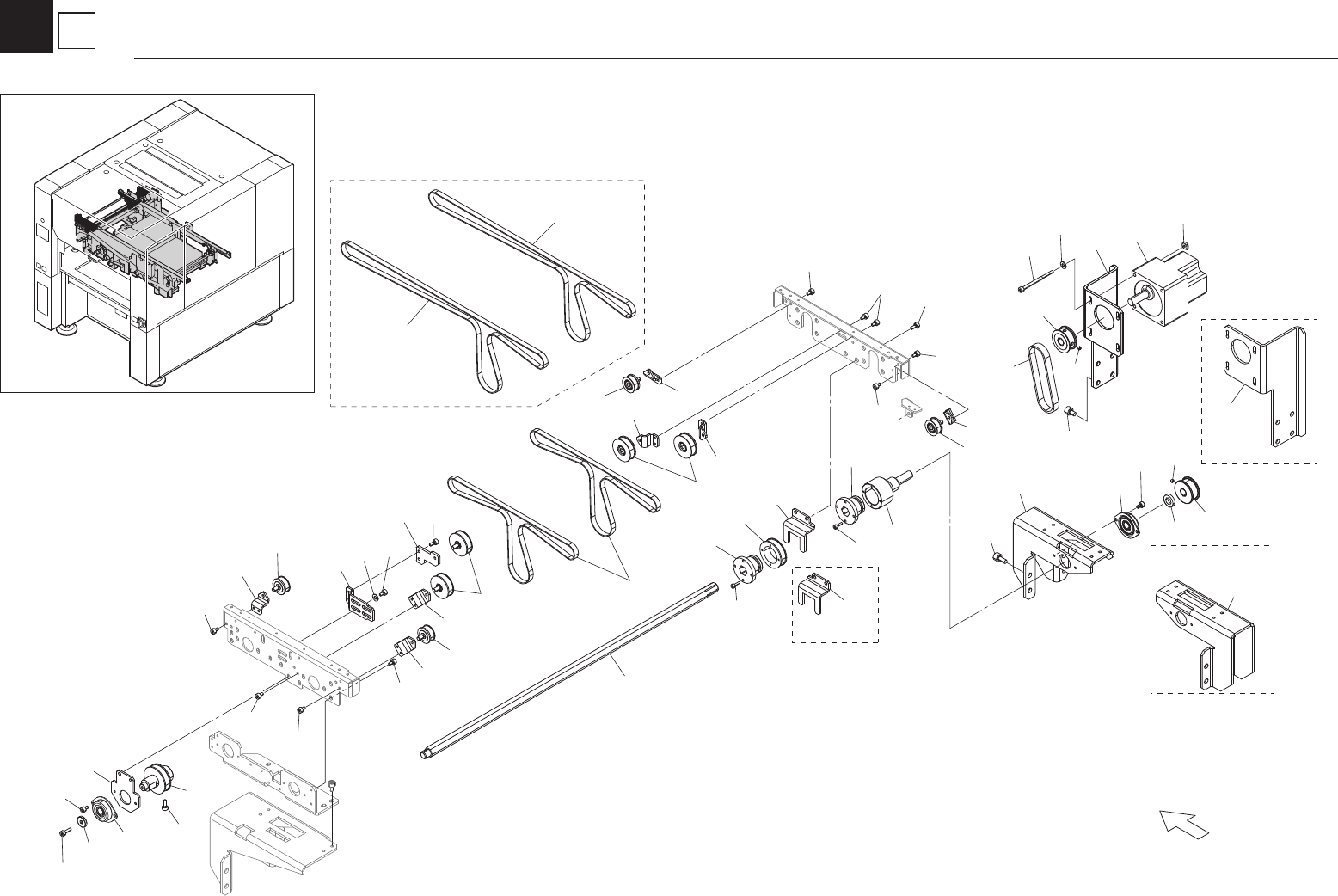

Main Conveyor Sub Assy B
Conveyor Unit (Dual Stage)
KKT-1101
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KKE-M918L-00 BRKT. 1, SPLINE
1 /
Í
39
2
KKE-M918N-00
BRACKET 1, COLLAR
2 /
Í
40
3
KKE-M918X-00 SPLINE 1
1 /
Í
41
4
KKE-M918Y-00 SHAFT
1 /
Í
42
5
KKE-M9196-00 BRKT., CONV. MOTOR
1 /
Í
43
6
KKE-M919D-01 GUIDE, HNS.
1 /
Í
44
7
KKE-M919R-00 BELT, CONVEYOR
2
A
45
8
KKE-M9119-A0 PULLEY CONV. ASSY.
6
/
46
9
KKE-M9128-00 BELT 222-3GT-9
1
/
Í
47
10
KG2-M9108-11 COLLAR CONVEYOR
2 /
Í
48
11
KGK-M9170-00 DC MOTOR ASSY.
1 B
Í
49
12
KGT-M9135-00 PULLEY 1, SPLINE
2 /
Í
50
13
KGT-M9193-00 NUT PLATE
4 /
Í
51
14
KGY-M9140-A0 PULLEY,CONV. ASSY
4 /
Í
52
15
KH2-M9105-11 PULLEY, MOTOR:P30-3GT
2 /
Í
53
16
KH2-M9121-00 BEARING
2 /
Í
54
17
KKE-M9135-00 PLATE, EDGE 2
8 /
55
18
KV7-M9140-A0 PULLEY CONV. ASSY
2
/
56
19
90990-41J006 COLLAR
1
57
20
91312-03010 BOLT HEX. SOCKET HEAD
8
58
21
91312-04006 BOLT HEX. SOCKET HEAD
6 59
22
91312-04008 BOLT HEX. SOCKET HEAD
2 60
23
91312-04010 BOLT HEX. SOCKET HEAD
3 61
24
91312-04055 BOLT HEX. SOCKET HEAD
4 62
25
91312-04008 BOLT HEX. SOCKET HEAD
4 63
26
92012-04006 BOLT, BUTTON HEAD
2 64
27
91312-05010 BOLT HEX. SOCKET HEAD
2 65
28
91312-05020 BOLT HEX. SOCKET HEAD
2 66
29
92902-04200 WASHER, PLAIN
8 67
30
92902-05200 WASHER, PLAIN
10 68
31
92902-05600 WASHER, PLAIN
4 69
32
92A08-04303 SCREW, SET
4 70
33
98702-03005 SCREW, FLAT HEAD
16 71
34
KKE-M9196-10 BRKT., CONV. MOTOR
1
L>R
/
Í
72
35
KKE-M919D-11 GUIDE, HNS.
1
L>R
/
Í
73
36 74
37 75
38 76
7
6
Main Conveyor Sub Assy B
Conveyor Unit (Dual Stage)
KKT-100514
21
21
21
21
11
11
15
3
8
22
11
11
21
21
21
4
23
1
18
24
21
21
11
7
6
15
15
23
26
11
8
11
15
27
16
19
17
10
20
28
2
13
10
20
29
29
5
16
27
25
9
12
30
31
14
22
26
32
L>R
L>R
1540mm
This llustration shows 1250mm
(R>L)
34
33
35
36
L>R
34
21
7
7
Main Conveyor Sub Assy C
Conveyor Unit (Dual Stage)
