YS24X_mpl_je - 第88页

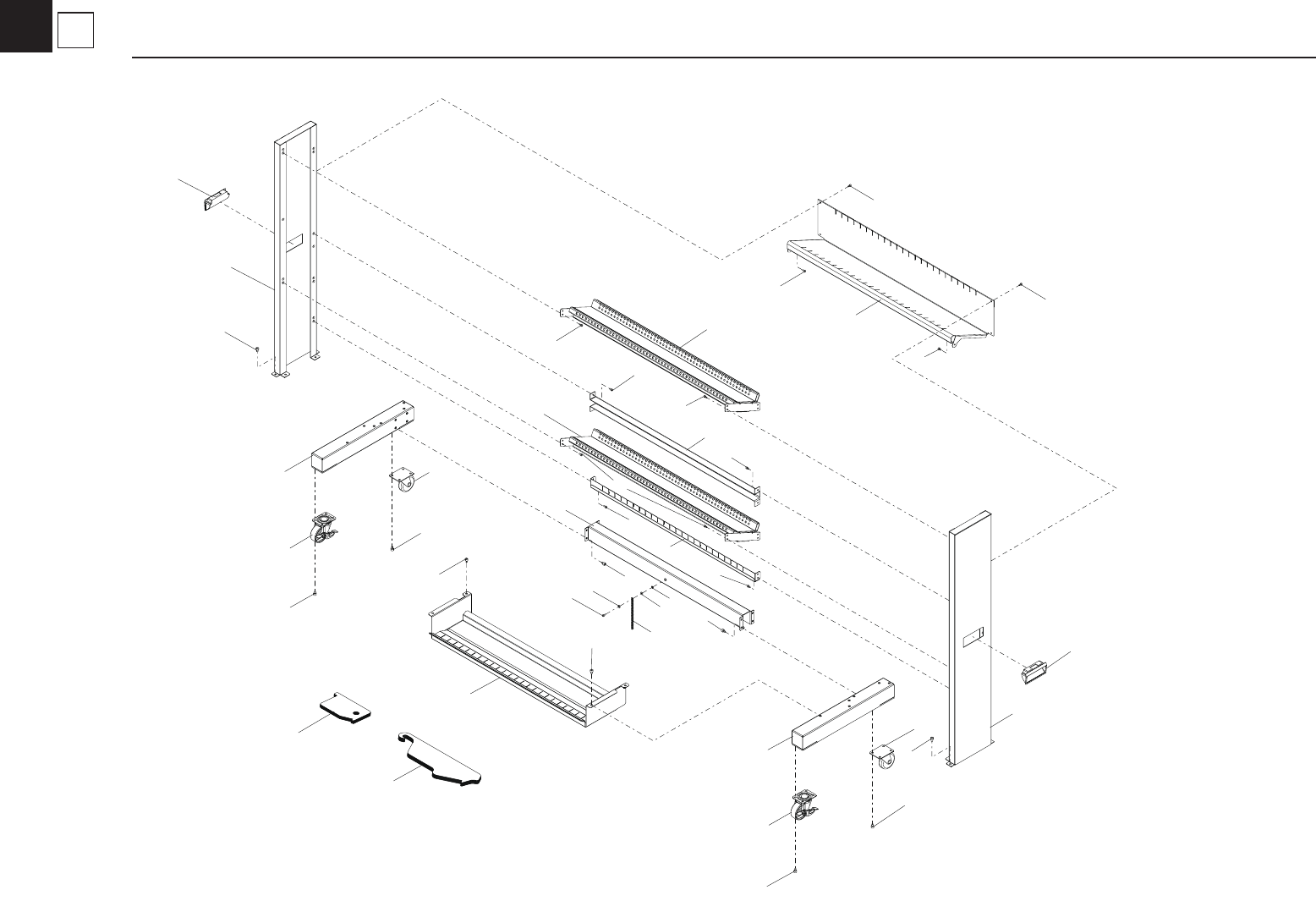

KKT -1204 20 5 3 15 3 3 13 18 11 2 2 3 9 2 8 2 2 5 1 17 4 7 4 3 2 2 3 3 2 14 20 6 2 3 2 2 16 18 3 2 10 19 12 3 15 11 3 F.S.Type100 FDR
KKT-100514
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1
KHJ-MD201-00 FEEDER PLATE
1 /
38
98902-04006 SCREW BINDING HEAD 10
2
KHJ-MD202-00 SIDE PLATE, L
1
/
39
98702-03006 SCREW FLAT HEAD
8
3
KHJ-MD203-00 SIDE PLATE, R
1 /
40
91312-03006 BOLT HEX. SOCKET HEAD 3 M3X8
4
KHJ-MD204-00 CLAMP PLATE
1 /
41
91312-03008 BOLT HEX. SOCKET HEAD 4 M3X7
5
KHJ-MD205-00 FEEDER STOPPER
1 /
42
90990-11J003 SCREW, PAN HEAD W/W 16
6
KHJ-MD206-00 CONNECTOR PLATE
1 /
43
$NK-3N NYLON CLIP 12
7
KHJ-MD207-00 UNDER COVER
1
/
44
8
KHJ-MD208-00 BACK COVER
1
/
45
9
KHJ-MD209-00 BASE PLATE
1
/
46
10
KHJ-MD210-00
FOOT
4 /
47
11
KJJ-M371R-000 RAIL GUIDE 16P
1 /
48
12
KHJ-MD212-00 BKT. SWITCH
1 /
49
13
KHJ-MD213-00 REEL HOLDER, FIX.
1 /
50
14
KHJ-MD214-00 REEL HOLDER, MOVE
1 /
51
15
KHJ-MD110-00 LABEL, PITCH
1 /
52
16
KHJ-M4484-02 FDR. ST. BOARD ASSY
1 /
Í
53
17
KHJ-M4486-00 PITCH LED BOARD ASSY
1 /
Í
54
18
KJ3-M6511-00 CIRCUIT PROTECTOR, 1
1
/
Í
55
19
KHJ-M537A-00 NOISE FILTER
1
/
Í
56
20
KHJ-M6561-10 POWER SUPPLY 1
1
/
Í
57
21
KHJ-M661B-01 HNS, AC IN 2
1 /
Í
58
22
KHJ-M662A-00 HNS, CP DC24V
1 /
Í
59
23
KHJ-M662B-00 HNS, LAMP
1 /
Í
60
24
KHJ-M662C-000 HNS, BRD.PWR
1 /
Í
61
25
KHJ-M663C-00 HNS, PITCH UP
1 /
Í
62
26
KHJ-M663D-00 HNS, PITCH DOWN
1 /
Í
63
27
KHJ-M663E-00 HNS, PITCH SET
1 /
Í
64
28
KHY-M66TE-00 HNS, F. CTRL-FDR.
1 /
Í
65
29
KJ3-M662A-00 HNS, AC IN 1
1
Abroad parts
/
66
KJ3-M661A-00 HNS, AC IN 1
1
Domestis parts
/
67
30
KHJ-MD215-001 LABEL, SERIAL
1 /
68
31
KHA-M5184-11 SEAL, LABEL
1 /
69
32
KHY-M6417-00 SEAL, CE
1 /
70
33
KHY-M372M-00 SCREW, STAD
2 /
71
34
90563-03J100 SPACER BOLT
4 72
35
92902-03200 WASHER PLAIN
4 73
36
98902-03004 SCREW BINDING HEAD
4 74
37
98902-03005 SCREW BINDING HEAD
28 75
11
2
FDR Power ST
FDR
KKT-1204
20
5
3
15
3
3
13
18
11
2
2
3
9
2
8
2
2
5
1
17
4
7
4
3
2
2
3
3
2
14
20
6
2
3
2
2
16
18
3
2
10
19
12
3
15
11
3
F.S.Type100
FDR
KKT-1204
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90172-00J040 WASHER, EXTL, TOOTHED 1 39
2 91312-04008 BOLT HEX,SOCKET HEAD 31 40
3 91312-06008 BOLT HEX,SOCKET HEAD 36 41
4 92902-04200 WASHER,PLAIN 2 42
5 KHJ-MK002-20 FEEDER-50 PLATE 2 /
43
6 KHJ-MK010-20 FRAME,REEL STAND 1 1 /
44
7 KHJ-MK011-20 GUIDE,PARTITION 2 1 /
45
8 KHJ-MK012-20 FRAME,REEL STAND 2 1 /
46
9 KHJ-MK013-20 MAIN FRAME 1 1 /
47
10 KHJ-MK014-20 MAIN FRAME 2 1 /
48
11 KHJ-MK015-20 MAIN FRAME 3 1 /
49
12 KHJ-MK016-20 MAIN FRAME 4 1 /
50
13 KHJ-MK017-20 MAIN FRAME 5 1 /
51
14 KHJ-MK018-20 MAIN FRAME 6 1 /
52
15 KHJ-MK019-20 PULL 2 /
53
16 KHJ-MK020-20 PARTITION 2 12 /
54
17 KHY-M373C-10 CHAIN 1 /
55
18 KHY-M374C-00 CASTER 2 /
56
19 KHY-M3R16-00 PARTITION 12 /
57
20 KM0-M3741-00 CASTER 63 2 /
58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
11
3
F.S.Type100
FDR
