R e f . 3 3 - 7 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 8 9 1 4 1 3 9 0 9 0 8 9 8 9 8 9 8 7 8 7 9 0 8 7 8 8 1 0 1 0 9 0 1 0 8 6 8 2 9 1 8 4 1 6 5 9 6 3 1 2 6 2 4 1 5 8 2 8 3 2 4 9 1 1 2 7 2 3 7 0 …
26.1.ｶﾑﾎﾞｯｸｽ3(CSPA)
26.1.Cam box 3(CSPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
78 Y3049A 2 ELBOW ｴﾙﾎﾞ KQL06-M5 OT
79 K5075A 1 CONNECTOR ｺﾈｸﾀ KQU06-00 OT
80 Y3050A 1 ELBOW ｴﾙﾎﾞ KQL06-01S OT
87 S2010F 1 LAMP (Select parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (50HZ) 注1. Note.1 OT
88 MPA3540 1 PLATE, RETAINER ﾌﾟﾚｰﾄ 押え 注1. Note.1 FE
89 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L 注1. Note.1 FE
90 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L 注1. Note.1 FE
91 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M 注1. Note.1 FE
92 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M 注1. Note.1 FE
93 K5209A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X8L 注1. Note.1 FE
94 MPA3531 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ 注1. Note.1 PL
95 S2010K 1 LAMP (Select parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (60HZ) 注1. Note.1 OT
96 S2010F 1 LAMP (Select parts) ﾗﾝﾌﾟ(選択部品) FT-11001 (50HZ) 注1. Note.1 OT
97 CSWZ0080 3 BKT BKT FE
98 CSWZ0090 3 BKT, RETAINER BKT 押え FE
99 S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A ｹｰﾌﾞﾙ2M OT
100 K5178T SCREW, C/R PAN 小ﾈｼﾞ十穴鍋 M3X12L FE
101 K5042Z 1 CONNECTOR ｺﾈｸﾀ PC08-01 . OT
注1.防音ｶﾊﾞｰ取付時２個使用
Note.1 : QTY is 2,when the noise reduction cover is attached.
CP-643E PARTS LIST
26 - 4
26.1.ｶﾑﾎﾞｯｸｽ3(CSPA)
26.1.Cam box 3(CSPA)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
89
14
13
90
90
89
89
89
87
87
90
87
88
10
10
90
10
86
82
91
84
16
59
63
1
26
24
15
82
83
24
9
11
27
23
70
69
69
70
71
72
73
71
73
71
17
49
19
7
22
12
11
27
4
19
21
8
27
11
11
27
18
5
20
22
6
3
12
53
62
2
A
A
x10
26 - 5

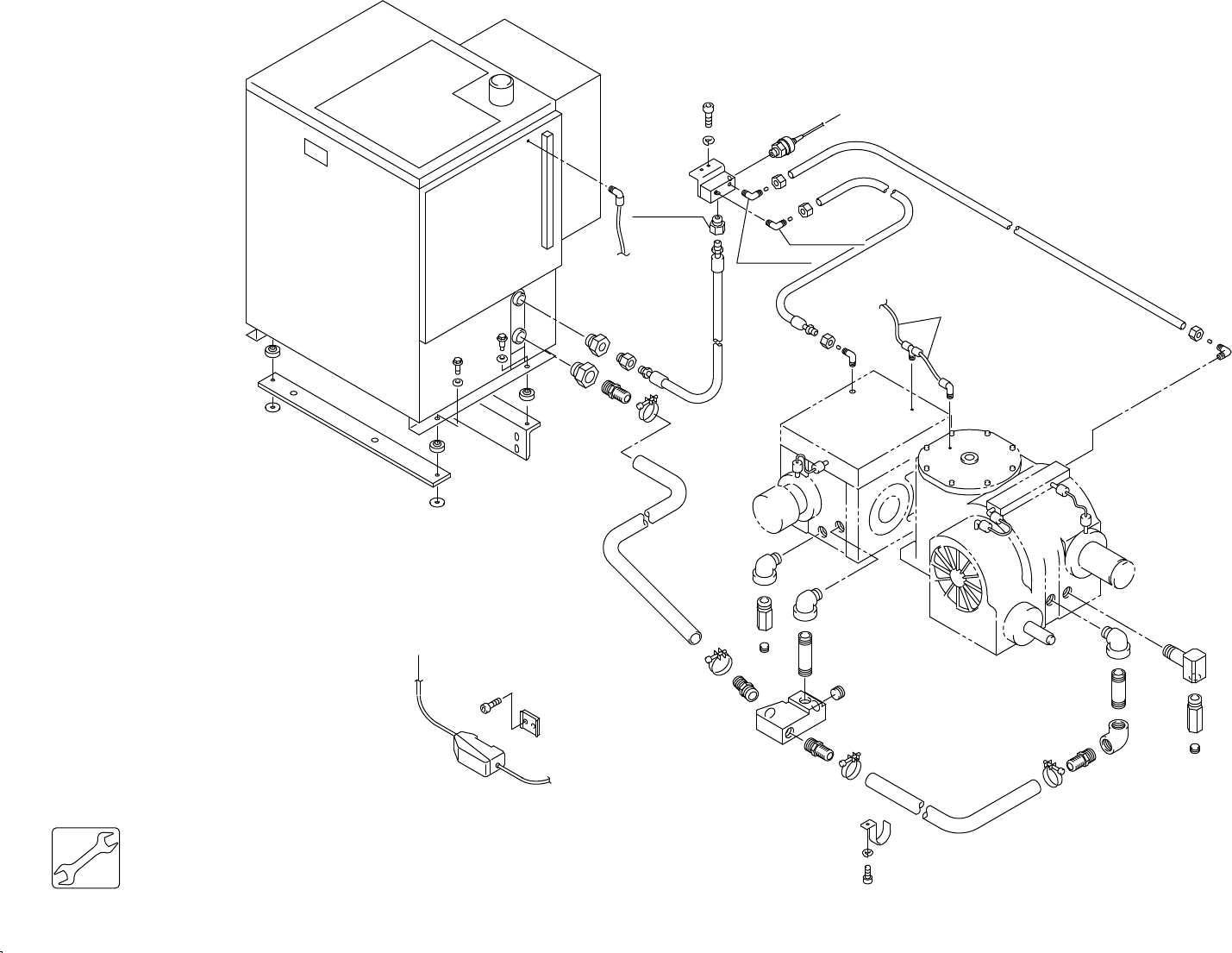

26.2.カムボックス 3(CSPA)
26.2.Cam box 3(CSPA)
26.2.カムボックス 3(CSPA)
26.2.Cam box 3(CSPA)
CP-643E PARTS LIST
A
A
x10
26 - 6
26.2.カムボックス 3(CSPA)
26.2.Cam box 3(CSPA)
26.2.カムボックス 3(CSPA)
26.2.Cam box 3(CSPA)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE572
LOCTITE572
LOCTITE572
