2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ,ﾄﾞﾗﾑ(CSPH) 2.Placing head,Drum(CSPH) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 WPH0010 1 CAM, CYLINDRICAL ｶﾑ 円筒 FE 2 WPH0063 1 SLIDER ｽﾗｲﾀﾞ FE …

100%1 / 247
Note.1
注.1
A
B
A
B
CP-643E PARTS LIST
2 - 2

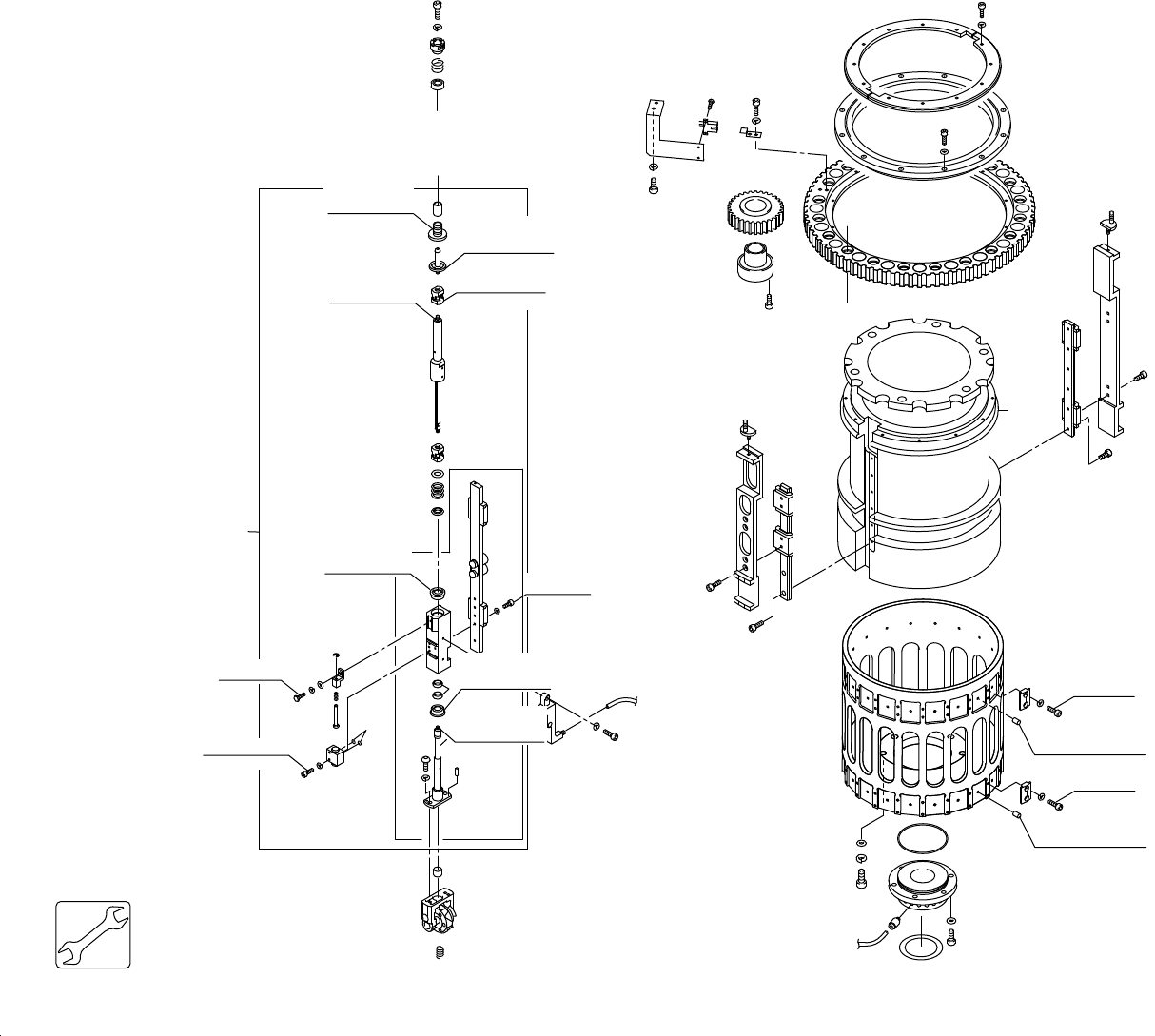

2.プレーシングヘッド，ドラム(WPH)
2.Placing head,Drum(WPH)
2.プレーシングヘッド，ドラム(WPH)
2.Placing head,Drum(WPH)
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE7471
LOCTITE601
1.96N･m
3.92N･m
LOCTITE7649
LOCTITE262
4.41N･m
LOCTITE7649
4.41N･m
LOCTITE7649
LOCTITE262
LOCTITE7649
LOCTITE601
1.96N･m
LOCTITE7649
LOCTITE601
1.47N･m
LOCTITE7649
LOCTITE262
LOCTITE222
1.47N･m
ThreeBond1373B
ThreeBond1390F
ThreeBond1373B
ThreeBond1390F
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ,ﾄﾞﾗﾑ(CSPH)
2.Placing head,Drum(CSPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WPH0010 1 CAM, CYLINDRICAL ｶﾑ 円筒 FE
2 WPH0063 1 SLIDER ｽﾗｲﾀﾞ FE
3 WPH0053 1 SLIDER ｽﾗｲﾀﾞ FE
4 WPH0091 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ FE
5 WPH5030 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
6 WPH1320 2 JOINT ｼﾞｮｲﾝﾄ FE
7 WPH5076 20 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ 注1. Note.1 OT
8 H4118H 20 BEARING ﾍﾞｱﾘﾝｸﾞ SST-1680 FE
9 WPH0412 20 SPRING ｽﾌﾟﾘﾝｸﾞ FE
10 WPH0385 20 CLUTCH ｸﾗｯﾁ FE
11 H4452C 20 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ BK81015A FE
12 WPH0924 20 SLEEVE ｽﾘｰﾌﾞ FE
13 WPH1284 20 SHAFT ｼｬﾌﾄ FE
14 K1005Z 40 COUPLING ｶｯﾌﾟﾘﾝｸﾞ CPU-26-A-T1 OT
18 H4113A 40 BEARING ﾍﾞｱﾘﾝｸﾞ LF-1910ZZ FE
19 WPH2097 20 HOLDER ﾎﾙﾀﾞ 注1. Note.1 AL
20 H1164H 40 PACKING ﾊﾟｯｷﾝ MY-10A OT
21 WPH0870 20 BKT BKT FE
22 WPH2130 20 SPRING ｽﾌﾟﾘﾝｸﾞ FE
23 WPH2120 20 PIN ﾋﾟﾝ FE
24 S1021A 20 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-3 FE
25 WPH1182 20 VALVE, MECHANICAL ﾊﾞﾙﾌﾞ ﾒｶﾆｶﾙ OT
27 WPH2102 20 SHAFT ｼｬﾌﾄ 注1. Note.1 FE
28 AWPH3115 20 HOLDER ﾎﾙﾀﾞ OT
39 WPH0335 20 CLAMPER ｸﾗﾝﾊﾟ FE
40 WPH0081 1 RETAINER, BARING 押え ﾍﾞｱﾘﾝｸﾞ FE
41 WPH5012 1 BEARING, ROLLER ﾍﾞｱﾘﾝｸﾞ ﾛｰﾗ OT
42 WPH1012 1 DRUM ﾄﾞﾗﾑ AL
43 WPH0212 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ AL
44 S2147A 20 JOINT ｼﾞｮｲﾝﾄ BF6 OT
45 WPH1060 20 PIN ﾋﾟﾝ OT
46 WPH1050 20 PIN ﾋﾟﾝ OT
47 WPH0112 1 DOG ﾄﾞｯｸﾞ FE
49 WPH0101 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ FE
50 R2060K 1 RING, LOCKING ﾘﾝｸﾞ 締結 RL025X034TF OT
51 WPH1350 20 HOSE, AIR ﾎｰｽ ｴｱｰ OT
55 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
56 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
57 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
58 W1040A WASHER, FLAT ﾜｯｼｬ 平 3M/MX0.5X7 FE
59 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L FE
60 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
61 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L FE
CP-643E PARTS LIST
2 - 3
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ,ﾄﾞﾗﾑ(CSPH)
2.Placing head,Drum(CSPH)
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ,ﾄﾞﾗﾑ(CSPH)
2.Placing head,Drum(CSPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
62 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
63 K5261H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X12L FE
64 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
65 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
66 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
67 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L FE
68 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L FE
70 H5165A BOLT, HEX ﾎﾞﾙﾄ 六角 M3X10L FE
71 K5261H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M5X12L FE
72 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
73 H5361A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X30L FE
74 A5139Z 1 O RING O ﾘﾝｸﾞ S63 OT
75 R5012A 20 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ3X9.8 OT
77 WPH2175 20 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ PL
79 WPH0780 20 WASHER ﾜｯｼｬ FE
80 W1019T 60 WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ BBY0062611AO OT
81 WPH0790 20 WASHER ﾜｯｼｬ FE
83 WPQ0651 1 BKT, SENSOR BKT ｾﾝｻ FE
84 S4040X 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
85 . SCREW, C/R PAN ﾈｼﾞ 十穴鍋 M3X8L FE
86 WPH1025 20 CLAMPER ｸﾗﾝﾊﾟ FE
90 A5129A 60 O RING O ﾘﾝｸﾞ S4 OT
92 WPH2030 20 FILTER ﾌｨﾙﾀ OT
93 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X6L FE
94 H5278T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X18L FE
96 AWPH3088 20 SHAFT ｼｬﾌﾄ OT
97 AWPH3120 20 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ OT
98 WPH1163 120 SPRING ｽﾌﾟﾘﾝｸﾞ FE
99 W1055A WASHER, FLAT ﾜｯｼｬ 平 10M/MX2.0X21 FE
100 WWM0250 1 SEAL ｼｰﾙ PL .
注1.(19)ﾎﾙﾀﾞ､(27)ｼｬﾌﾄ､(7)ｶﾞｲﾄﾞﾚｰﾙを含めたASSYでの供給となります。
  2-1ﾍﾟｰｼﾞのｲﾗｽﾄを参照して下さい。
Note.1 : The holder (No.19) the shaft (No.27) and the guide rail (No.7) are supplied as a set.
Refer to the figure on page 2-1.
