25.ｶﾑﾎﾞｯｸｽ 2(CSPA)
25.Cam box 2(CSPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
84 WPL0232 2 NUT ﾅｯﾄ FE
86 W1036T 32 WASHER, THRUST ﾜｯｼｬ ｽﾗｽﾄ AS2542 FE
87 WPU0331 1 JOINT (For CUTTER) ｼﾞｮｲﾝﾄ (ｶｯﾀ用) FE
88 WPM0310 1 JOINT (For Station 18) ｼﾞｮｲﾝﾄ (18st用) AL
89 WPL0433 2 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
91 N1082A NUT, HEX ﾅｯﾄ 六角 M5 P=0.8 FE
92 A4042A 7 ELBOW ｴﾙﾎﾞ PL6-M5M OT
93 WPQ0784 4 HOLDER ﾎﾙﾀﾞ FE
94 W1008T WASHER, TOOTHED CONICAL ﾜｯｼｬ ｷﾞｻﾞ付皿 WW-12 FE
95 H4118T 8 BEARING ﾍﾞｱﾘﾝｸﾞ SST-1810DSG FE
96 WPQ0760 4 COLLAR ｶﾗｰ FE
97 WPQ0771 4 NUT ﾅｯﾄ FE
98 WPQ0791 4 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
99 H42726 4 BEARING, SPHERICAL ﾍﾞｱﾘﾝｸﾞ 球面 NB-5 FE
100 WPQ0850 4 PIN ﾋﾟﾝ FE
101 WPQ0811 4 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
102 H2025A 4 PIN, SNAP ﾋﾟﾝ ｽﾅｯﾌﾟ SSP-5 FE
103 K5203A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X6L FE
104 WPA1781 4 WASHER, THRUST ﾜｯｼｬ ｽﾗｽﾄ OT
105 . SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止め M6X6L FE
106 CSPA0011 2 DOG ﾄﾞｯｸﾞ FE
107 CSPA0031 1 BKT, SENSOR BKT ｾﾝｻ FE
108 CSPA0040 2 BKT, SENSOR BKT ｾﾝｻ FE
109 CSPA0052 2 BKT BKT FE
110 S4040X 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX306-W2A OT
111 S4040W 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX305-W2A OT
112 K5178T SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X12L FE
113 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
114 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X15L FE
115 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
116 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
117 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
119 W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10 FE
120 WPH1320 2 JOINT ｼﾞｮｲﾝﾄ FE
121 AWPL8012 2 JOINT ｼﾞｮｲﾝﾄ OT
122 WPA5152 7 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ OT
123 H1156T 8 PACKING ﾊﾟｯｷﾝ MYP-25 OT
124 H2050A 2 PIN, SPRING ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 3ﾟX15L FE
125 S2176B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01 OT
126 H1156Z 4 PACKING ﾊﾟｯｷﾝ MYR-10A ･ OT
CP-643E PARTS LIST
25 - 5
25.ｶﾑﾎﾞｯｸｽ 2(CSPA)
25.Cam box 2(CSPA)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
100
60
99
97
62
55
51
61
98
55
62
98
97
55
62
62
55
51
61
98
97
47
Used only when the noise reduction cover is attached
防音カバー取付時のみ
51
61
28,96
29
55
62
68
67
54
62
30
31
62
57
58
63
32
34
47
45
43
56
62
89
91
87,95
88
92
90
94
93
39
62
53
74
62
53
49
60
42
38
53
62
47
52
61
40
46
41
46
41
37
53
62
44
48
80
45
56
64
101
101
45
58
63
33
77
60
76
78
75
62
53
78
79
41
35
53
62
52
61
40
46
46
41
65
53
62
A
B
B
A
x10
26 - 1

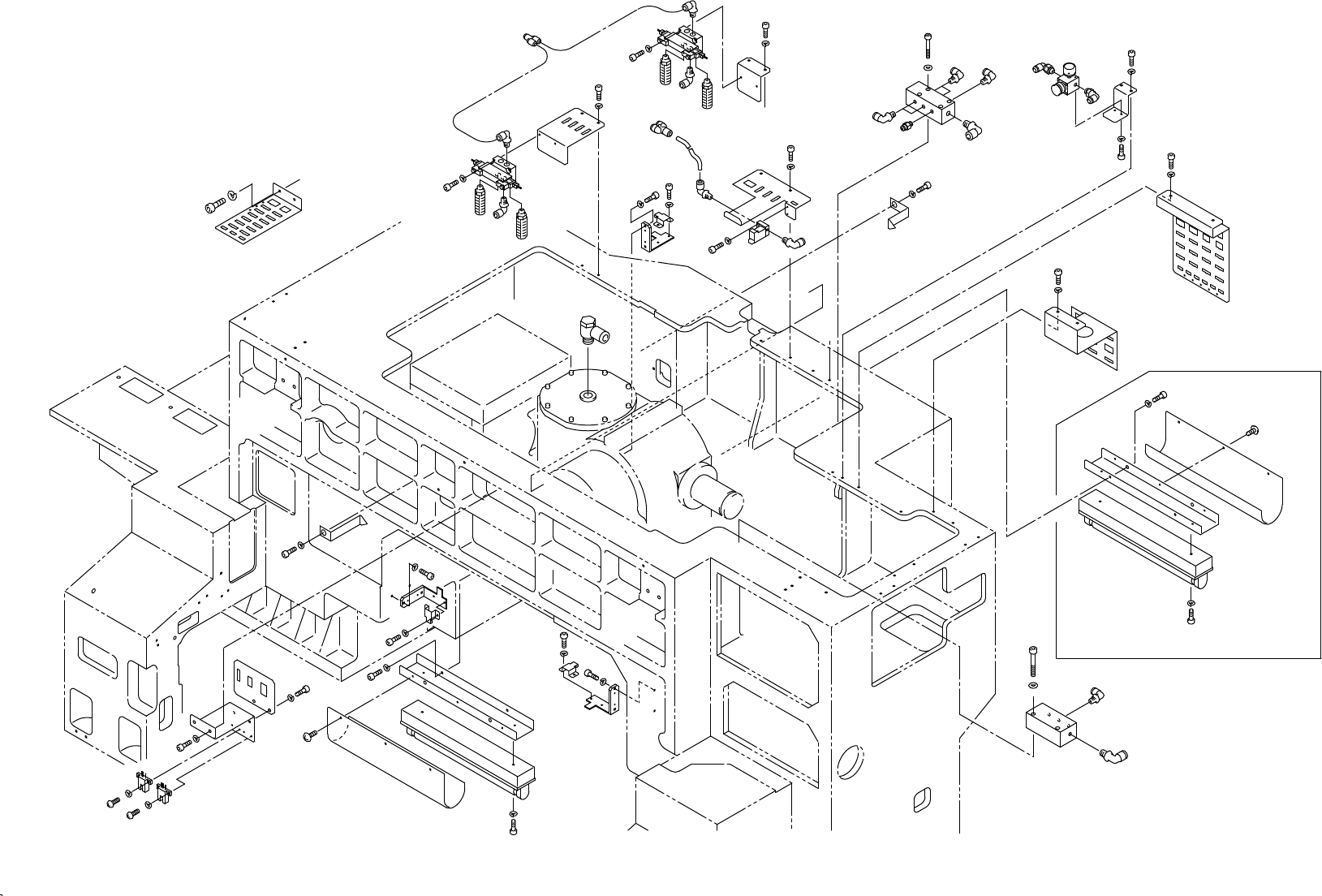

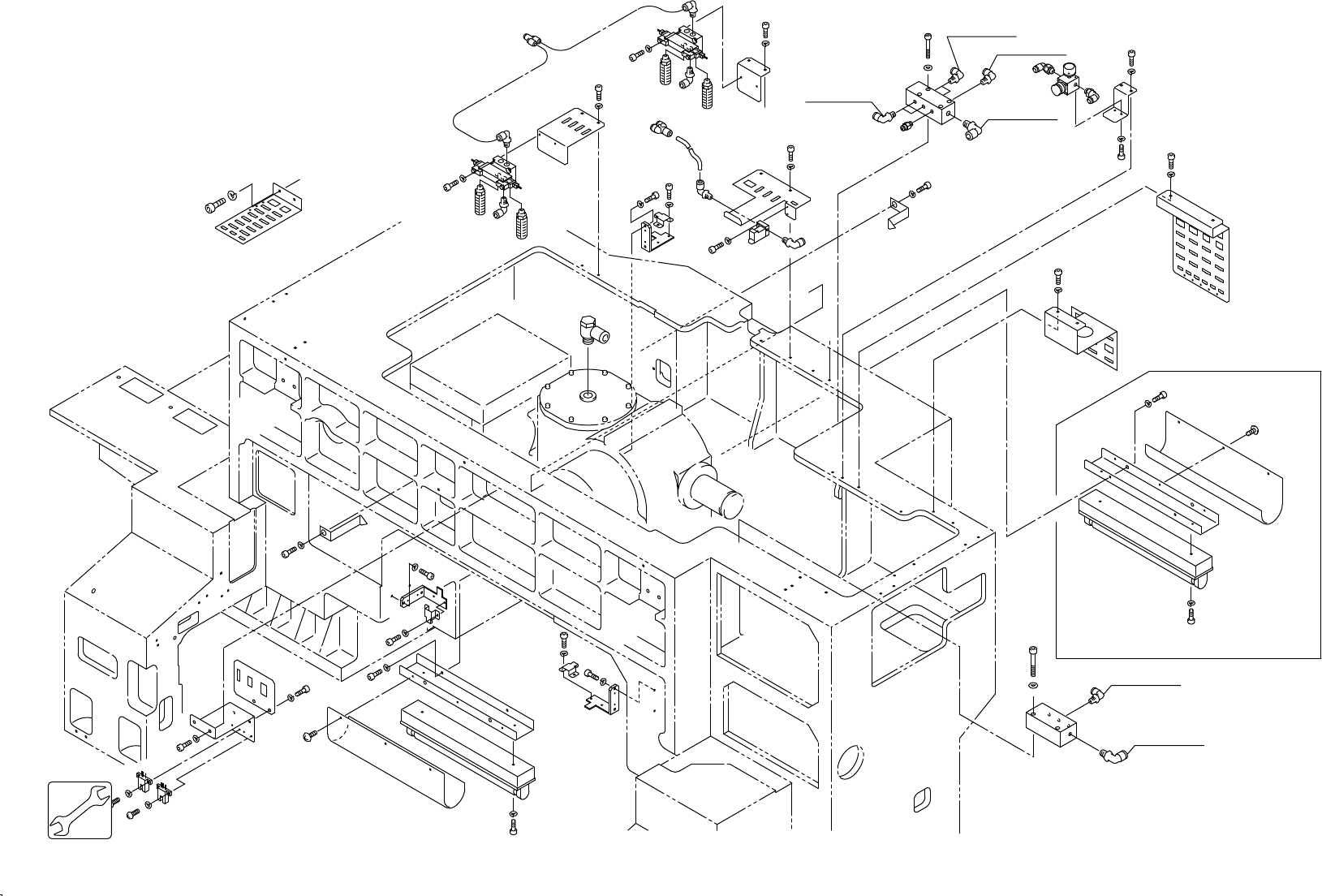

26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
CP-643E PARTS LIST
Used only when the noise reduction cover is attached
防音カバー取付時のみ
A
B
B
A
x10
26 - 2
26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
26.1.カムボックス 3(CSPA)
26.1.Cam box 3(CSPA)
CP-643E PARTS LIST
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE572
LOCTITE572
LOCTITE572
LOCTITE572
LOCTITE572
LOCTITE572
