30.ｴｱｰ機器(CSPI) 30.Air device(CSPI) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 WAB0150 1 COVER ｶﾊﾞｰ FE 2 H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM OT 3 H1059T 1 VA…
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
27
26
1
23
18
20
11
12
13
9
10
8
5
14
14
24
4
15
19
22
21
7
25
2
17
3
16
6
15
x6
30 - 1

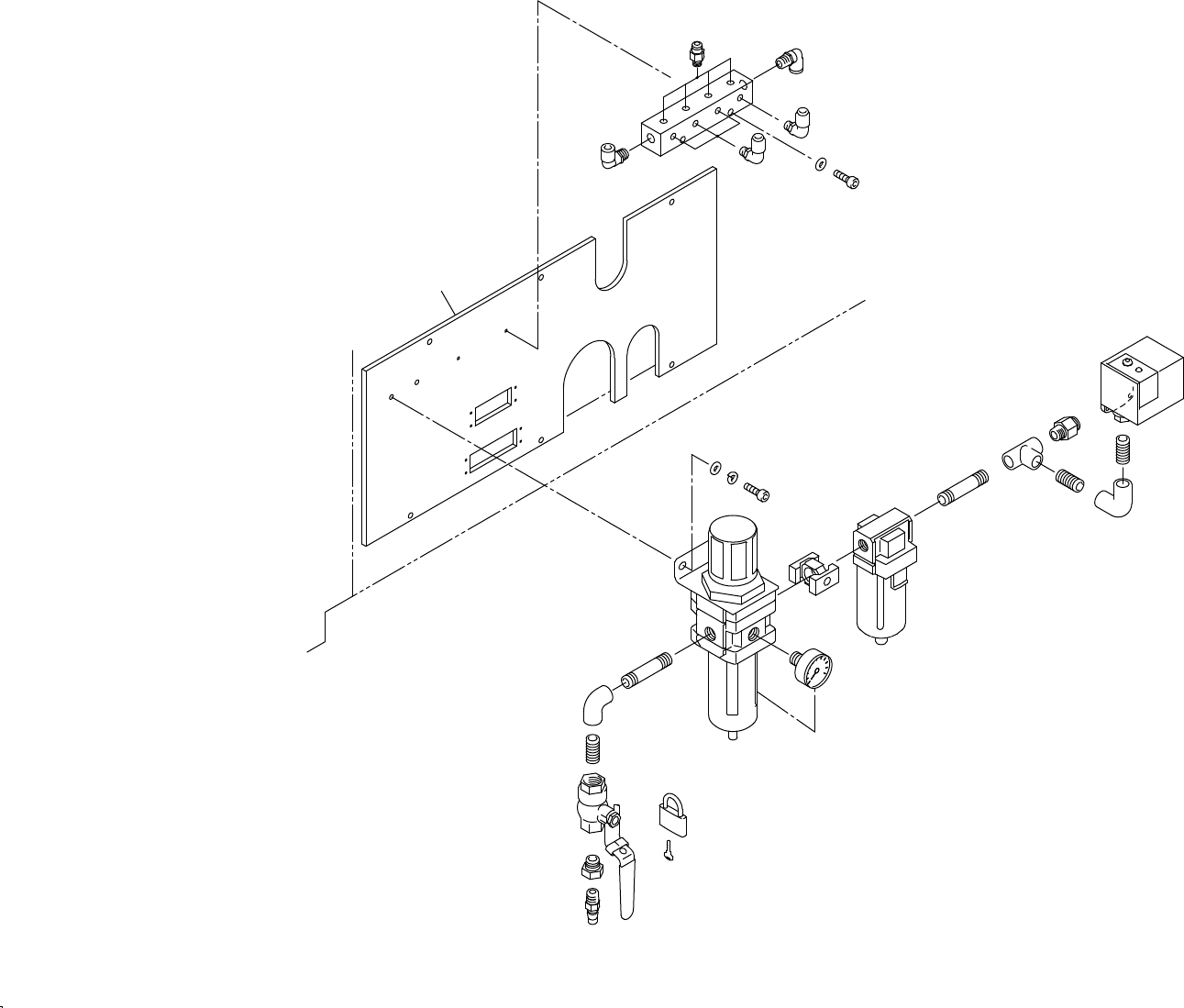

30.エア機器(CSPI)
30.Air device(CSPI)
30.エア機器(CSPI)
30.Air device(CSPI)
CP-643E PARTS LIST
30.ｴｱｰ機器(CSPI)
30.Air device(CSPI)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 WAB0150 1 COVER ｶﾊﾞｰ FE
2 H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM OT
3 H1059T 1 VALVE, STOP ﾊﾞﾙﾌﾞ ｽﾄｯﾌﾟ RP-LL-3/8 ﾛｯｸﾊﾝﾄﾞﾙ付 OT
4 T4038A 1 TEE ﾃｨｰ 1/4. OT
5 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4. OT
6 A4081A 1 ELBOW, DIFFERENT DIAMETERS ｴﾙﾎﾞ異径 3/8X1/4 OT
7 H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG OT
8 S3157T 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02L5 OT
9 S2176B 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01 OT
10 S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02 OT
11 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01 OT
12 S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01 OT
13 S2174B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02 OT
14 H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30 OT
15 H1220A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65 OT
16 H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25 OT
17 H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4 OT
18 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L FE
19 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
20 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L FE
21 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
22 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
23 GXA0110 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管 AL
24 S2152A 1 JOINT ｼﾞｮｲﾝﾄ TS8-02 OT
25 K2027R 1 KEY ｷｰ C1000-50 OT
26 . 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D OT
27 S3059Y SPACER ｽﾍﾟｰｻ Y30(29.5) ･ OT
CP-643E PARTS LIST
30 - 2
30.ｴｱｰ機器(CSPI)
30.Air device(CSPI)
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
109
110
107
109
110
107
112
12
113
109
110
110
109
110
110
108
109
107
12
107
109
108
111
111
111
111
111
111
111
71
92
106
101
85
85
101
85
101
85
101
85
101
85
101
85
85
85
100
71
79
71
79
100
92
92
100
71
79
92
105
79
111
92
100
79
71
92
79
71
92
92
105
86
85
89
85
85
89
85
66
101
85
101
85
101
85
101
85
101
85
101
85
94
85
81
80
10
82
81
80
82
81
80
10
82
81
82
80
76
76
79
71
79
71
94
66
66
85
63
62
102
102
31
31
101
31
31
31
31
31
101
31
31
31
31
31
101
26
101
27
29
26
86
21
21
20
20
92
19
19
85
18
106
18
100
100
100
100
92
10
10
9
101
58
9
101
9
105
101
105
8
7
101
4
3
x5
A
B
A
B
B
A
31 - 1
31.1.インキャリア(CSQC)
31.1.In carrier(CSQC)
31.1.インキャリア(CSQC)
31.1.In carrier(CSQC)
CP-643E PARTS LIST
