38.ｲﾝｺﾝﾍﾞｱｶﾊﾞｰ(CSQC) 38.In conveyor cover(CSQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 ACSQC8032 1 DOOR 扉 OT 2 ACSQC8042 1 DOOR 扉 OT 3 CSQC7371 2 RAIL ﾚｰﾙ …
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
42
42
27
27
12
33
38
48
11
37
48
35
9
25
2
40
19
21
41
49
41
49
52
31
14
3
41
49
52
22
19
41
49
16
15
31
41
49
52
41
49
52
33
38
48
1
26
26
6
49
41
25
41
49
7
35
48
37
18
43
17
44
45
31
52
49
41
36
47
51
32
23
3
31
31
41
49
20
19
31
4
41
49
41
49
34
48
39
41
49
24
28
31
31
5
41
49
41
49
31
13
41
49
32
36
47
51
30
46
50
29
19
41
49
22
41
49
41
49
10
31
31
49
41
24
8
34
39
48
x8
A
A
B
B
53
53
53
38 - 1

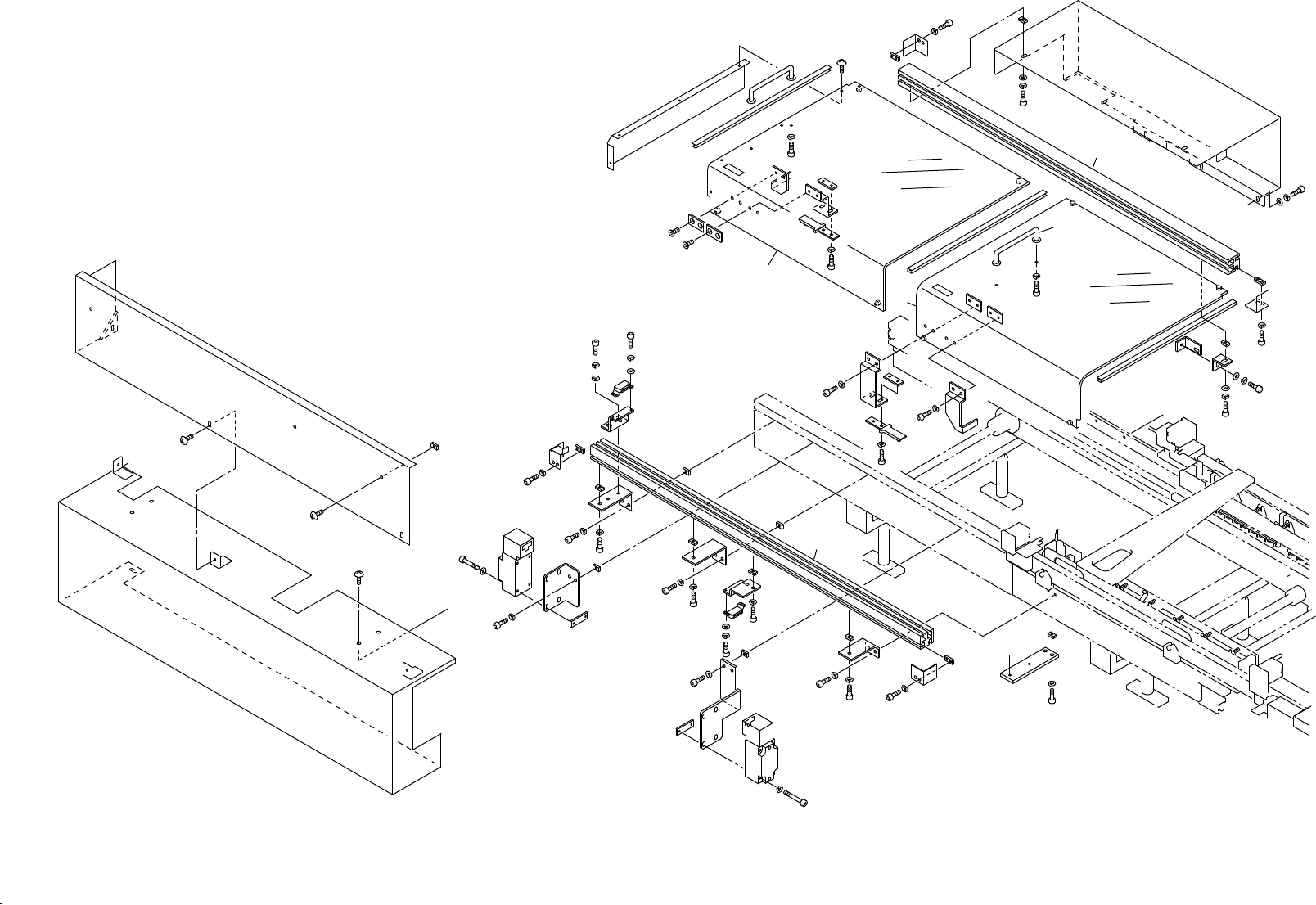

38.インコンベアカバー(CSQC)
38.In conveyor cover(CSQC)
38.インコンベアカバー(CSQC)
38.In conveyor cover(CSQC)
CP-643E PARTS LIST
38.ｲﾝｺﾝﾍﾞｱｶﾊﾞｰ(CSQC)
38.In conveyor cover(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 ACSQC8032 1 DOOR 扉 OT
2 ACSQC8042 1 DOOR 扉 OT
3 CSQC7371 2 RAIL ﾚｰﾙ AL
4 CSQC7071 1 BKT BKT FE
5 CSQC7081 1 BKT BKT FE
6 CSQC7092 1 BKT BKT FE
7 CSQC7101 1 BKT BKT FE
8 CSQC7112 1 BKT BKT FE
9 CSQC7121 1 BKT BKT FE
10 CSQC7211 1 BKT BKT FE
11 CSQC7311 1 BKT BKT FE
12 CSQC7346 1 COVER ｶﾊﾞｰ FE
13 CSQC7610 1 BKT BKT FE
14 CSQC7383 1 COVER ｶﾊﾞｰ FE
15 CSQC7401 1 BKT BKT FE
16 CSQC7411 1 BKT BKT FE
17 CSQC7452 1 COVER ｶﾊﾞｰ FE
18 CSQC7491 1 COVER ｶﾊﾞｰ FE
19 CSQC7500 5 NUT ﾅｯﾄ FE
20 CSQC7521 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
21 CSQC7531 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
22 CSQC7551 2 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
23 CSQC7600 1 BKT BKT FE
24 CSQC7170 4 PLATE ﾌﾟﾚｰﾄ FE
25 CSQC7180 2 PLATE ﾌﾟﾚｰﾄ FE
26 CSQC7260 2 PLATE ﾌﾟﾚｰﾄ FE
27 CSQC7270 2 PLATE ﾌﾟﾚｰﾄ FE
28 CSQC7300 1 BKT BKT FE
29 CSQC7460 2 HOLDER 受け FE
30 IQC6062 2 NUT ﾅｯﾄ FE
31 IQC6072 20 NUT ﾅｯﾄ FE
32 M1010Z 2
MAGNET CATCH
ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-78S OT
33 T5011S 2
HANDLE
取手 TTHA-00425 OT
34 S31970 2
SW, LIMIT
SW ﾘﾐｯﾄ XCS-A501 OT
35 S31971 2
SW, LIMIT
SW ﾘﾐｯﾄ XCS-Z01 OT
36 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X6L FE
37 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L FE
38 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X15L FE
39 H5296C
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X45L FE
40 K5209A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M4X8L FE
41 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12L FE
CP-643E PARTS LIST
38 - 2
38.ｲﾝｺﾝﾍﾞｱｶﾊﾞｰ(CSQC)
38.In conveyor cover(CSQC)
38.ｲﾝｺﾝﾍﾞｱｶﾊﾞｰ(CSQC)
38.In conveyor cover(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
42 K5361T
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M5X12L FE
43 K5213Z
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M5X5L FE
44 K5214A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M5X8L FE
45 .
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ M5X20L FE
46 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X15L FE
47 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
48 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
49 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
50 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
51 W1042A
WASHER, FLAT
ﾜｯｼｬ 平
4W-3 FE
52 W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5 FE
53 CSQC7590 3 BKT, SUPPORT BKT 支え ･ FE
CP-643E PARTS LIST
38 - 3
38.ｲﾝｺﾝﾍﾞｱｶﾊﾞｰ(CSQC)
38.In conveyor cover(CSQC)
