43.2.ｲﾝｺﾝﾍﾞｱ(逆流れ)(CSQC) 43.2.In conveyor(Right-to-left board flow)(CSQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 124 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L FE…

100%1 / 247
43.2.ｲﾝｺﾝﾍﾞｱ(逆流れ)(CSQC)
43.2.In conveyor(Right-to-left board flow)(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
83 N1085A
NUT, HEX
ﾅｯﾄ 六角 M6 FE
84 K41316 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 07.30-018-21-630P OT
85 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
86 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
87 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
88 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
89 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
90 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L FE
91 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L FE
92 W1013A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H FE
93 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X14L FE
94 . SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X25L FE
95 K5357H
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X5L FE
96 K5357M
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X6L FE
97 H5277A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X12L FE
98 H5286A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X6L FE
99 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X8L FE
100 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L FE
101 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X12L FE
102 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X15L FE
103 H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X18L FE
104 H5292T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X22L FE
105 H5296L BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X65L FE
106 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12L FE
107 H5263C BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X16L FE
108 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X18L FE
109 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X20L FE
110 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X12L FE
111 H5323A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X18L FE
112 H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X20L FE
113 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X6L FE
114 CSQC7780 1 BKT, SENSOR BKT ｾﾝｻ FE
115 CSQC7900 1 BKT BKT FE
116 CSQC7910 1 BKT, SENSOR BKT ｾﾝｻ FE
117 CSQC7920 1 STOPPER ｽﾄｯﾊﾟ FE
118 CSQC7930 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
119 CSQC7950 1 BKT, SENSOR BKT ｾﾝｻ FE
120 CSQC7980 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
121 CSQC7791 1 BKT, WIPING BKT 配線 OT
122 CSQC8140 1 WRENCH, L-TYPE ﾚﾝﾁ L形 FE
123 W1010A WASHER, FLAT
ﾜｯｼｬ 皿         
M-3-L FE
CP-643E PARTS LIST
43 - 9
43.2.ｲﾝｺﾝﾍﾞｱ(逆流れ)(CSQC)
43.2.In conveyor(Right-to-left board flow)(CSQC)
43.2.ｲﾝｺﾝﾍﾞｱ(逆流れ)(CSQC)
43.2.In conveyor(Right-to-left board flow)(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
124 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X8L FE
125 K5357T SCREW, HEX SOCKET COUNTER 小ﾈｼﾞ 六角穴皿 M3X8L FE
126 CSQC2850 1 LEVER ﾚﾊﾞｰ FE
127 CSQC2860 1 BKT BKT . FE
CP-643E PARTS LIST
43 - 10
43.2.ｲﾝｺﾝﾍﾞｱ(逆流れ)(CSQC)
43.2.In conveyor(Right-to-left board flow)(CSQC)
Ref.33-7
PULLEY ASSY
MQC-1061
PULLEY ASSY
MQC-1290
RUBBER BELT
CSQC-0700
CORROIE DE CAOUTCHOUC
CSQC-0700
141
141
183
183
184
184
141
141
183
183
184
184
89
91
89
109
16
169
170
169
170
16
89
66
127
164
94
94
125
125
125
125
158
158
77
77
142
142
68
68
127
164
127
164
72
72
137
137
76
76
95
95
138
138
125
125
89
66
127
164
144
144
144
70
90
122
64
90
44
46
89
91
132
168
144
144
177
176
177
176
122
90
2
42
78
98
98
82
105
51
90
122
90
90
90
7
144
182
144
122
45
64
178
90
90
88
88
62
62
92
32
89
132
132
167
132
167
173
173
71
87
96
131
153
131
153
153
89
89
89
165
165
132
89
89
97
127
165
132
164
156
125
156
67
92
92
67
74
100
144
144
144
144
144
144
144
144
144
71
87
96
104
105
105
82
82
98
98
104
104
98
98
78
84
130
127
127
140
140
137
137
149
149
106
106
103
103
81
81
99
99
167
127
85
108
169
170
171
168
132
169
170
141
183
183
184
141
183
184
184
4
141
183
184
141
16
172
136
136
101
136
136
126
126
150
150
100
100
80
80
79
79
100
100
165
127
127
127
127
166
166
1
132
132
163
163
83
83
165
105
82
98
104
98
75
130
127
140
179
182
3
8
90
90
90
90
90
90
90
90
90
90
122
122
122
43
69
50
185
65
63
88
88
62
62
64
44
45
64
52
46
B
D
H
F
A
B
C
A
E
C
E
D
H
F
102
13
139
89
104
123
126
165
127
122
144
0.51 2
x9
127
166
J
J
17
89
19
18
89
127
166
146
146
17
125
128
126
186
110
145
159
10
152
9
J
J
136
65
63
50
185
44 - 1

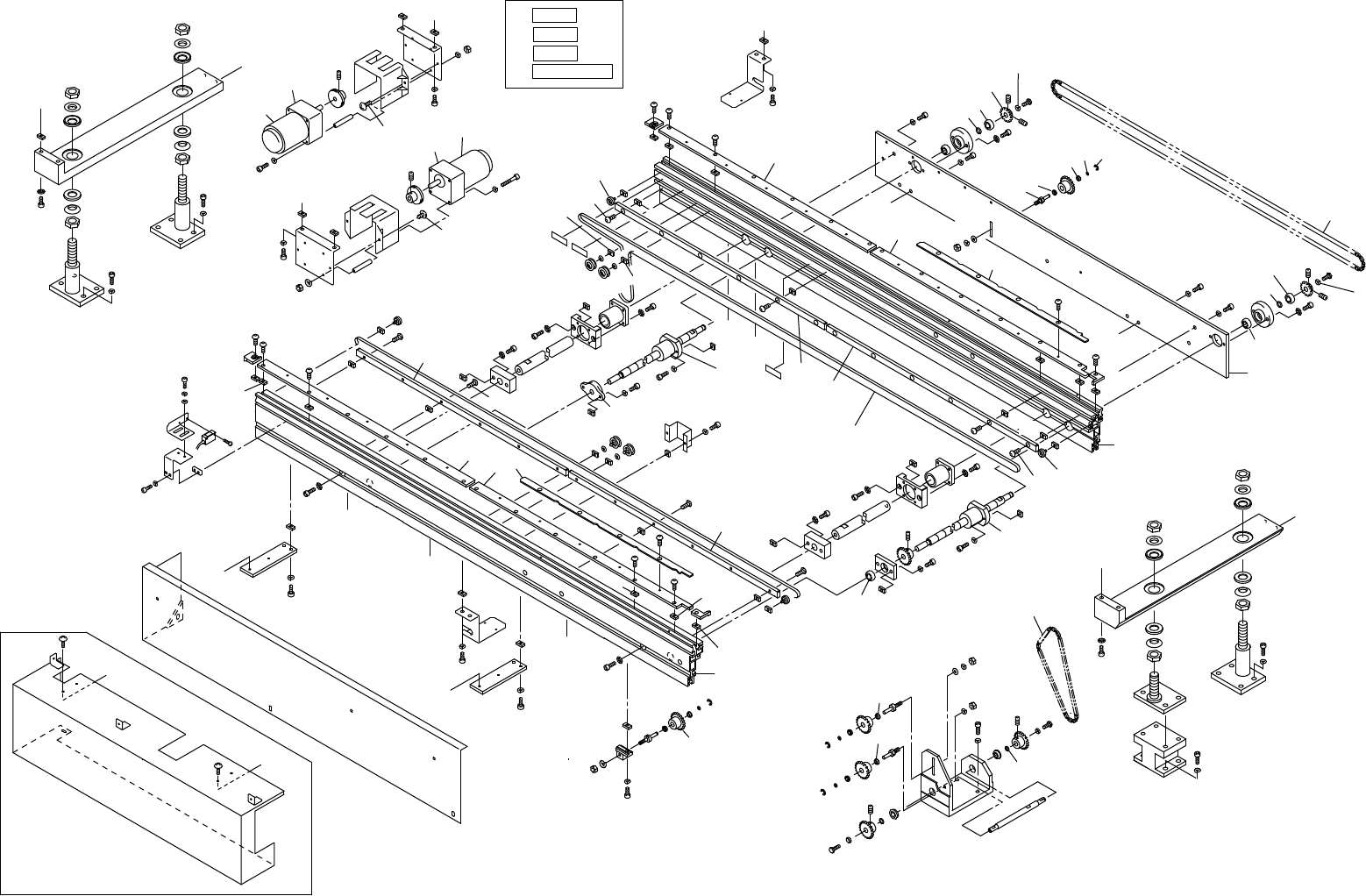

44.1.アウトコンベア(逆流れ)(Option)(CSQC)
44.1.Out conveyor(Right-to-left board flow)(Option)(CSQC)
44.1.アウトコンベア(逆流れ)(Option)(CSQC)
44.1.Out conveyor(Right-to-left board flow)(Option)(CSQC)
CP-643E PARTS LIST
