CP-643E-08 - 第228页

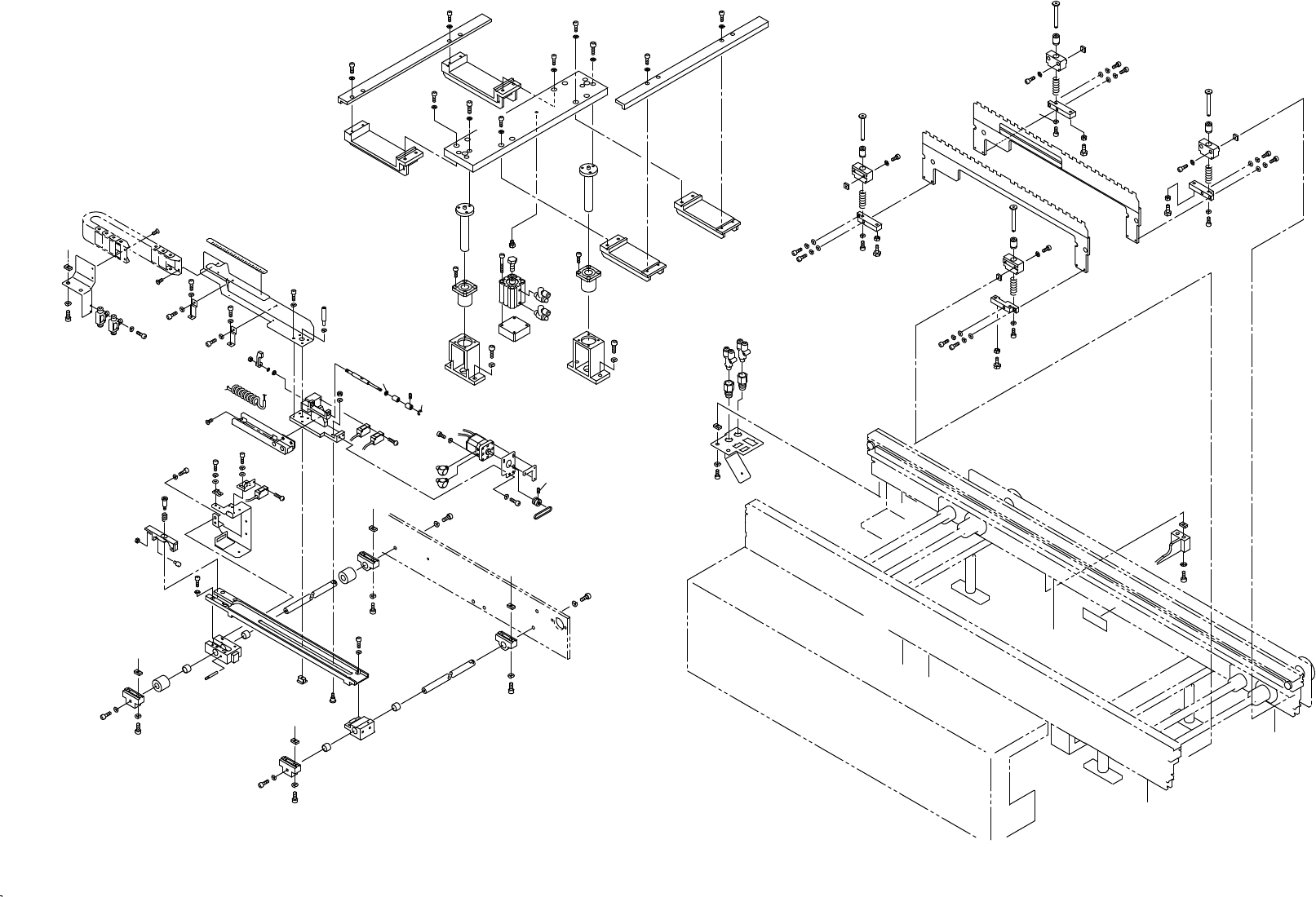

44.2.ｱｳﾄｺﾝﾍﾞｱ(逆流れ)(CSQC) 44.2.Out conveyor (Right-to-left board flow)(CSQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 CSQC0100 4 GUIDE ｶﾞｲﾄﾞ FE 2 CSQC0110 4 B…
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
1
2
1
2
1
2
3
6
8
8
12
17
13
14
16
26
15
21
22
24
25
23
23
28
31
29
30
27
32
34
33
34
35
36
37
38
39
42
42
43
44
45
46
49
68
67
65
66
71
70
76
73
73
78
77
107
77
81
79
80
80
80
80
75
74
72
72
82
82
82
82
82
82
83
83
83
83
83
83
83
83
87
87
87
87
87
87
89
89
89
89
89
88
88
86
86
86
86
83
86
83
86
83
86
83
86
83
86
83
86
83
86
85
85
85
85
85
88
85
85
85
84
84
56
54
57
47
48
55
69
79
91
93
98
98
97
97
97
97
99
98
98
98
98
98
98
90
92
96
95
94
94
94
94
92
58
64
64
64
64
58
58
58
58
59
59
59
59
60
61
62
63
63
63
63
62
62
62
61
58
58
53
50
99
83
99
83
99
100
101
87
101
87
101
87
101
102
102
102
102
100
103
106
108
106
108
109
107
109
109
109
109
110
110
85
110
109
108
85
108
105
105
104
100
100
51
52
39
40
41
32
19
17
18
20
20
20
20
11
9
9
10
10
5
4
7
1
2
x9
A
B
C
E
E
D
B
D
C
A
44 - 5
44.2.アウトコンベア(逆流れ)(Option)(CSQC)
44.2.Out conveyor(Right-to-left board flow)(Option)(CSQC)
44.2.アウトコンベア(逆流れ)(Option)(CSQC)
44.2.Out conveyor(Right-to-left board flow)(Option)(CSQC)
CP-643E PARTS LIST
44.2.ｱｳﾄｺﾝﾍﾞｱ(逆流れ)(CSQC)
44.2.Out conveyor (Right-to-left board flow)(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 CSQC0100 4 GUIDE ｶﾞｲﾄﾞ FE
2 CSQC0110 4 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
3 CSQC0300 1 PIN ﾋﾟﾝ FE
4 CSQC0330 1 NUT ﾅｯﾄ FE
5 CSQC0341 1 PULLEY ﾌﾟｰﾘ OT
6 CSQC3070 1 PLATE ﾌﾟﾚｰﾄ FE
7 CSQC0400 1 COLLAR ｶﾗｰ FE
8 CSQC0550 2 BKT BKT FE
9 CSQC0561 2 BKT BKT FE
10 CSQC0570 2 STOPPER ｽﾄｯﾊﾟ PL
11 CSQC0580 1 GUIDE ｶﾞｲﾄﾞ FE
12 CSQC0591 1 PIN, GUIDE ﾋﾟﾝ ｶﾞｲﾄﾞ FE
13 CSQC0651 1 BKT, CONNECTING BKT ﾂﾅｷﾞ FE
14 CSQC0710 1 LOCATOR 当金 FE
15 CSQC0771 1 ｱｸﾁｭｴｰﾀﾛｰﾀﾘ OT
16 CSQC0860 1 LOCATOR 当金 FE
17 CSQC0870 2 BKT BKT FE
18 CSQC0880 1 BKT BKT FE
19 CSQC0891 1 BKT BKT FE
20 CSQC0901 4 LOCATOR 当金 FE
21 CSQC0911 1 BKT BKT FE
22 CSQC0921 1 BKT BKT FE
23 CSQC0931 2 BKT BKT FE
24 CSQC0941 1 RAIL ﾚｰﾙ FE
25 CSQC0951 1 RAIL ﾚｰﾙ FE
26 CSQC0982 1 BOLT ﾎﾞﾙﾄ FE
27 CSQC1120 1 HOLDER ﾎﾙﾀﾞ FE
28 CSQC1151 1 HOLDER ﾎﾙﾀﾞ FE
29 CSQC1290 1 BKT BKT FE
30 CSQC1300 1 BKT BKT FE
31 CSQC1310 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
32 CSQC1320 2 SHAFT ｼｬﾌﾄ FE
33 CSQC1330 1 PLATE, ARM ﾌﾟﾚｰﾄ ｱｰﾑ AL
34 CSQC1340 2 SW, PHOTOELECTRIC SW 光電 OT
35 CSQC1350 1 SW, PHOTOELECTRIC SW 光電 OT
36 CSQC1410 1 BKT BKT FE
37 CSQC1421 1 POSITIONING 位置決め AL
38 CSQC1430 1 PIN ﾋﾟﾝ FE
39 CSQC1440 2 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ FE
40 CSQC1450 1 LEVER ﾚﾊﾞｰ FE
41 CSQC1460 1 NAMEPLATE 銘板 PL
CP-643E PARTS LIST
44 - 6
44.2.ｱｳﾄｺﾝﾍﾞｱ(逆流れ)(CSQC)
44.2.Out conveyor (Right-to-left board flow)(CSQC)
44.2.ｱｳﾄｺﾝﾍﾞｱ(逆流れ)(CSQC)
44.2.Out conveyor (Right-to-left board flow)(CSQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
42 CSQC2270 2 RETAINER 押え FE
43 CSQC3360 1 BKT, SENSOR BKT ｾﾝｻ FE
44 CSQC4702 1 CABLE ｹｰﾌﾞﾙ OT
45 CSQC5610 1 GUIDE ｶﾞｲﾄﾞ FE
46 CSQC5630 1 STOPPER ｽﾄｯﾊﾟ FE
47 CSQC5640 1 RAIL ﾚｰﾙ FE
48 CSQC5650 1 BKT BKT FE
49 CSQC5670 1 SHAFT ｼｬﾌﾄ FE
50 CSQC5681 1 PLATE, LIFTER ﾌﾟﾚｰﾄ ﾘﾌﾀ FE
51 CSQC5691 1 PLATE, LIFTER ﾌﾟﾚｰﾄ ﾘﾌﾀ FE
52 CSQC5710 1 COLLAR ｶﾗｰ FE
53 CSQC5720 1 PLATE ﾌﾟﾚｰﾄ FE
54 CSQC5860 1 SCALE ｽｹｰﾙ PL
55 CSQC5870 1 PLATE, LOCATING ﾌﾟﾚｰﾄ 位置決め FE
56 CSQC5930 1 BKT BKT FE
57 CSQC5940 1 BKT BKT FE
58 IQC6062 12 NUT ﾅｯﾄ FE
59 JQC3672 8 角ﾅｯﾄ FE
60 S20657 1 CYLINDER ｼﾘﾝﾀﾞ CDAS32X15-ZE155B2 OT
61 H4429K 2 BEARING, BALL ﾍﾞｱﾘﾝｸﾞ ﾎﾞｰﾙ LMK16LUU FE
62 S3020W 4 SPRING ｽﾌﾟﾘﾝｸﾞ WF12-35 FE
63 H4128Z 4 BEARING ﾍﾞｱﾘﾝｸﾞ SM6UU FE
64 H30715 4 BUSHING ﾌﾞｯｼｭ MB1208DU OT
65 H4476L 1 BELT ﾍﾞﾙﾄ 97.5-1.5GT-3 OT
66 S1021A 1
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-3 FE
67 H4441A 1
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-840ZZ FE
68 H4443A 1
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ LF-850ZZ FE
69 S3020Y 1 SPRING ｽﾌﾟﾘﾝｸﾞ WH10-15 FE
70 K1090A 1
CAM FOLLOWER
ｶﾑﾌｫﾛｱ CFS04 OT
71 N4017A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M2X3L FE
72 A4068H 2
ELBOW
ｴﾙﾎﾞ M-5ALU-4 OT
73 K5347K 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2301FM-01-06S OT
74 Y3066X 2 UNION ﾕﾆｵﾝ KQ2E06-01 OT
75 K50764 2 CONNECTOR ｺﾈｸﾀ KQ2U06-01S OT
76 H5266A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M2X6L FE
77 K5335A 2
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ JSU4 OT
78 N10664 NUT U ﾅｯﾄ U M05 FE
79 N1080A
NUT, HEX
ﾅｯﾄ 六角 M4 P=0.7 FE
80 N1085A
NUT, HEX
ﾅｯﾄ 六角 M6 FE
81 K41316 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 07.30-018-21-630P FE
82 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
CP-643E PARTS LIST
44 - 7
44.2.ｱｳﾄｺﾝﾍﾞｱ(逆流れ)(CSQC)
44.2.Out conveyor (Right-to-left board flow)(CSQC)
