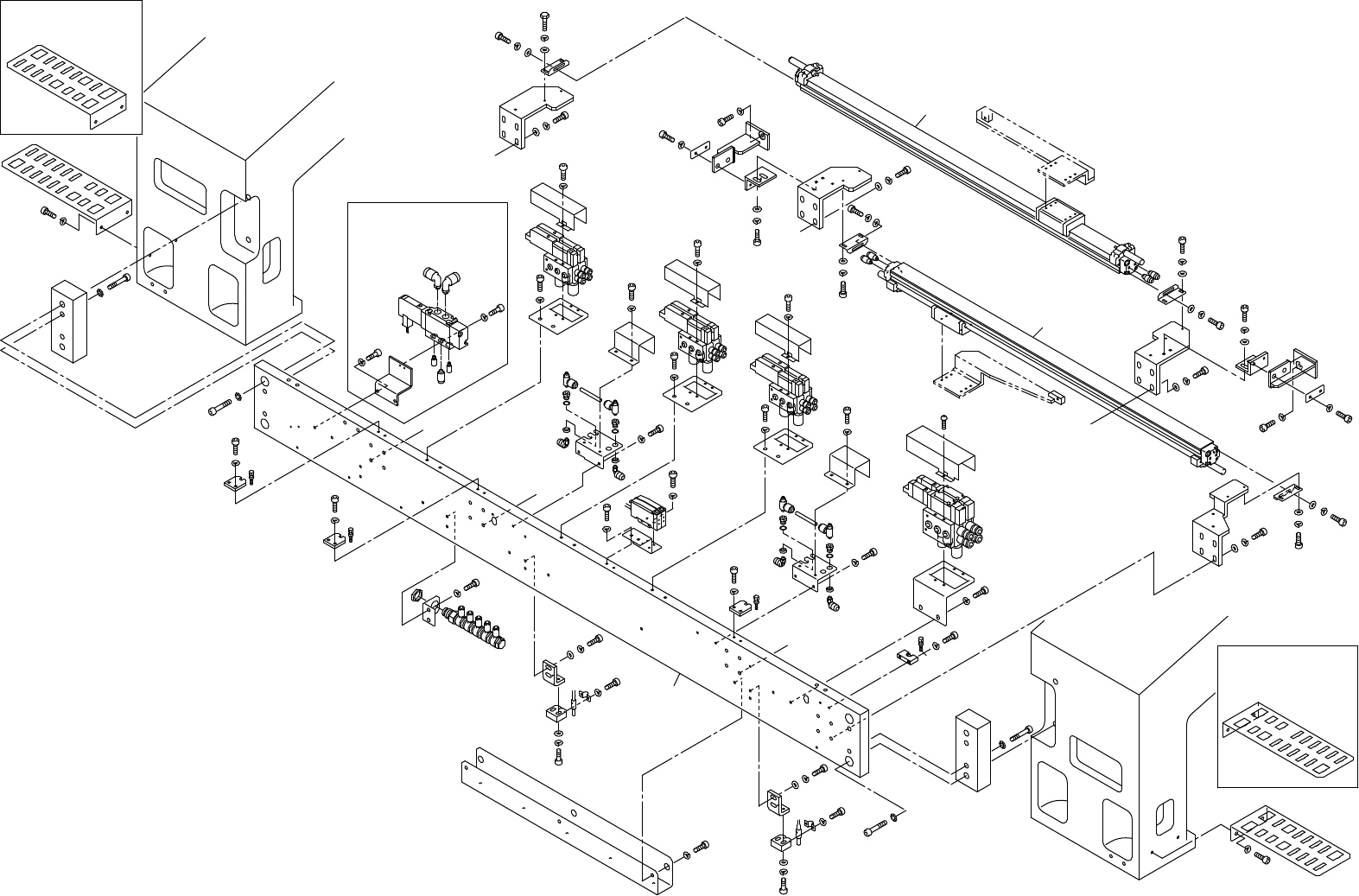

5.ﾛｰﾀﾞﾕﾆｯﾄ(CSQL) 5.Loading unit(CSQL) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 CSQL0010 3 BKT, VALVE BKT ﾊﾞﾙﾌﾞ FE 2 CSQL0022 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ FE 3 CSQL…
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
44
45
46
逆流れ(Option)
Right-to-left
board flow
逆流れ(Option)
可動ストッパ
Movable stopper
(Option)
Right-to-left
board flow
57
68
46
45
68
57
92
66
70
70
70
16
66
48
10
63
69
73
11
63
69
73
66
48
16
49
66
70
25
44
44
49
66
70
70
70
16
12
48
66
63
69
73
26
48
66
16
49
66
70
63
69
73
13
1
67
80
79
67
67
52
76
77
75
77
76
75
47
5
65
28
21
68
58
66
86
88
88
87
84
86
85
91
19
67
52
21
52
67
19
64
74
23
1
68
58
1
68
58
24
35
35
36
36
51
67
38
38
18
29
30
61
69
66
48
27
8
67
51
68
58
23
89
67
55
9
80
79
19
21
51
67
17
36
36
22
56
37
35
35
38
38
37
2
59
68
54
67
21
20
47
5
65
28
4
3
60
68
72
71
67
53
71
67
53
74
64
4
3
60
68
72
6
68
58
C
B
A
A
C
B
X8
89
67
55
89
90
67
55
52
67
68
83
68
83
67
81
14
59
68
72
81
15
82
15
59
68
72
52
5 - 1
5.ローダユニット(CSQL)
5.Loading unit(CSQL)
5.ローダユニット(CSQL)
5.Loading unit(CSQL)
CP-643E PARTS LIST
5.ﾛｰﾀﾞﾕﾆｯﾄ(CSQL)
5.Loading unit(CSQL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 CSQL0010 3 BKT, VALVE BKT ﾊﾞﾙﾌﾞ FE
2 CSQL0022 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ FE
3 CSQL0361 2 BKT, SENSOR BKT ｾﾝｻ FE
4 CSQL0370 2 BKT, SENSOR BKT ｾﾝｻ FE
5 CSQL0050 2 FIXTURE 固定具 FE
6 CSQL0431 1 DUCT ﾀﾞｸﾄ FE
8 CSQL0320 1 BKT BKT FE
9 CSQL0331 1 PLATE ﾌﾟﾚｰﾄ FE
10 CSQL0110 1 BKT BKT FE
11 CSQL0120 1 BKT BKT FE
12 CSQL0130 1 BKT BKT FE
13 CSQL0141 1 BKT BKT FE
14 CSQL0392 1 BKT BKT FE
15 CSQL0380 2 BKT BKT FE
16 CSQL0171 4 BKT BKT FE
17 CSQL0181 1 BKT BKT FE
18 CSQL0192 1 BKT BKT FE
19 CSQL0200 3 PLATE ﾌﾟﾚｰﾄ FE
20 CSQL0210 1 PLATE ﾌﾟﾚｰﾄ FE
21 CSQL0220 4
BOLT, ADJUSTING
ﾎﾞﾙﾄ ｾﾘ FE
22 ACSQL0230 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL OT
23 ACSQL0240 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL OT
24 ACSQL0250 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL OT
25 CSQL0261 1 CYLINDER, RODLESS ｼﾘﾝﾀﾞ ﾛｯﾄﾞﾚｽ OT
26 CSQL0271 1 CYLINDER, RODLESS ｼﾘﾝﾀﾞ ﾛｯﾄﾞﾚｽ OT
27 A1038L 2 AMPLIFIER ｱﾝﾌﾟ E3X-NH11 OT
28 H30011 2 FIBER UNIT ﾌｧｲﾊﾞ ﾕﾆｯﾄ E32-D32-25 OT
29 A4063E 1 ELBOW ｴﾙﾎﾞ QMQ6-5M812 OT
30 CSQL0441 1 BKT, PIPING BKT 配管 FE
35 K5338D 8
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1211F-M5-06(ｼﾛ) OT
36 Y3044A 8
UNION
ﾕﾆｵﾝ M-5E OT
37 N2033T 8
NIPPLE
ﾆｯﾌﾟﾙ KQN06-99 OT
38 Y3049L 8
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-M5(ｼﾛ) OT
44 Y3061W 4
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KJS06-M5(ｼﾛ) OT
45 CSWZ0032 1 PLATE ﾌﾟﾚｰﾄ FE
46 CSWZ0121 1 PLATE ﾌﾟﾚｰﾄ X-No.852∼ FE
47 H5265A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M2X5L FE
48 H5273A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X5L FE
49 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M3X8L FE
51 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L FE
52 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X12L FE
CP-643E PARTS LIST
5 - 2
5.ﾛｰﾀﾞﾕﾆｯﾄ(CSQL)
5.Loading unit(CSQL)
5.ﾛｰﾀﾞﾕﾆｯﾄ(CSQL)
5.Loading unit(CSQL)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
53 H5292A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X20L FE
54 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X25L FE
55 H5296A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X40L FE
56 K5174B SCREW, C/R PAN 小ﾈｼﾞ十穴鍋 M4X50L FE
57 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X10L FE
58 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12L FE
59 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X15L FE
60 H5301A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X18L FE
61 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X10L FE
63 H5326A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M6X25L FE
64 H5366A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M10X55L FE
65 W1039A
WASHER, FLAT
ﾜｯｼｬ 平
2M/M FE
66 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
67 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
68 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
69 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
70 W1042A
WASHER, FLAT
ﾜｯｼｬ 平
4W-3 FE
71 W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4 FE
72 W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5 FE
73 W1045A
WASHER, FLAT
ﾜｯｼｬ 平
4W-6 FE
74 W1015A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-10-H FE
75 CSQL0340 2 SPACER ｽﾍﾟｰｻ FE
76 H5342A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M8X25L FE
77 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-8-H FE
79 CSQL0420 2 COVER ｶﾊﾞｰ FE
80 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X8L FE
81 CSQL0400 2 PLATE ﾌﾟﾚｰﾄ FE
82 CSQL0411 1 BKT BKT FE
83 H5177A
BOLT, HEX
ﾎﾞﾙﾄ 六角 M5X15L FE
84 CSQL0450 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ FE
85 H1066K 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL F10T2-F4-PL3-DC24V OT
86 Y3079N 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-M5 OT
87 Y3086Y 1
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KQ2S06-M5 OT
88 S1058A 2 SILENCER ｻｲﾚﾝｻ AN120-M5 OT
89 CSQL0460 3 COVER ｶﾊﾞｰ FE
90 CSQL0470 1 COVER ｶﾊﾞｰ FE
91 H5280A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M5X12L FE
92 H5280A
BOLT, HEX
ﾎﾞﾙﾄ 六角 M3X8L FE .
CP-643E PARTS LIST
5 - 3
5.ﾛｰﾀﾞﾕﾆｯﾄ(CSQL)
5.Loading unit(CSQL)
