Stick magazines long version
WARNING
The long component stick magazines protrude above the tape containers out of the machine.There is
a risk of injury at unprotected, sharp-edged corners of the stick magazines..
Only use stick magazines with edge protectors.
Retrofit edge protectors on unprotected stick magazines.
Edge protectors can be ordered via the parts catalogue.
The procedure for fitting the edge protectors is described in: "Retrofit instructions for the edge pro-
tectors", Item No. 00192925-01.
Overview based on components
This overview lists the item numbers of the matching stick magazines for the following components:
Component Item No. Component Item No.
PLCC18 00311189-01 Socket PLCC20 00316400-01
PLCC20/28R 00311188-02 Socket PLCC28/32 00315880-01
PLCC28/32 00311187-02 Socket PLCC44, w= 22mm 00314750-01
PLCC32R 00320319-01 Socket PLCC44, w= 23.3mm 00317310-01
PLCC44 00310839-02 Socket PLCC52 00311997-01
PLCC52 00310848-01 Socket PLCC68 00315878-01
PLCC68 00311012-02 Socket PLCC84 00311967-01
PLCC84 00310851-01 SOJ26/20 00311007-02
SO6/8 00310509-02 SOJ28 00311182-01
SO8, height 2.4mm 00314265-01 SOJ32 / w=11.2mm 00316805-01
SO8L/14L 00314264-01 SOJ32 / w=8.66mm 00322665-01
SO8M/10M SSOP14/20 00318324-01 SOT223 00346219-01
SOP10 Power 00317234-01 TLP113 00348511-01
SO10M/14M 00315923-01 TSSOP8 / w=5.0mm 00336069-01
SO14/16 00310510-02 TSSOP14/20 / w=6.4mm 00343788-01
SO16L/20L 00310508-02 TSSOP24 / w=6.4mm 00336656-01
SO16M/20M 00315167-01 TSSOP48/64 / w=8.1mm 00336067-01
SO24L/28L 00310511-02 TO252 / Dpack 00357992-01
SO24W/28W 00323635-01 TO263 / SOT404 / D²pack 00357994-01
SO32Y 00312061-01 VSO40 00323635-01
SOP44 00310940-01 VSO56 00314739-01
SSOP14/16 w=6.0mm 03070399-01
SSOP14/16 w=7.8mm 03069925-01
Complete list
This illustrated list contains all available long component stick magazines.
It is arranged according to the inner width of the stick profiles.
The material thickness of the stick magazines is normally 0.5 mm, but it could be also more.
2 of 37
Stick magazines long version

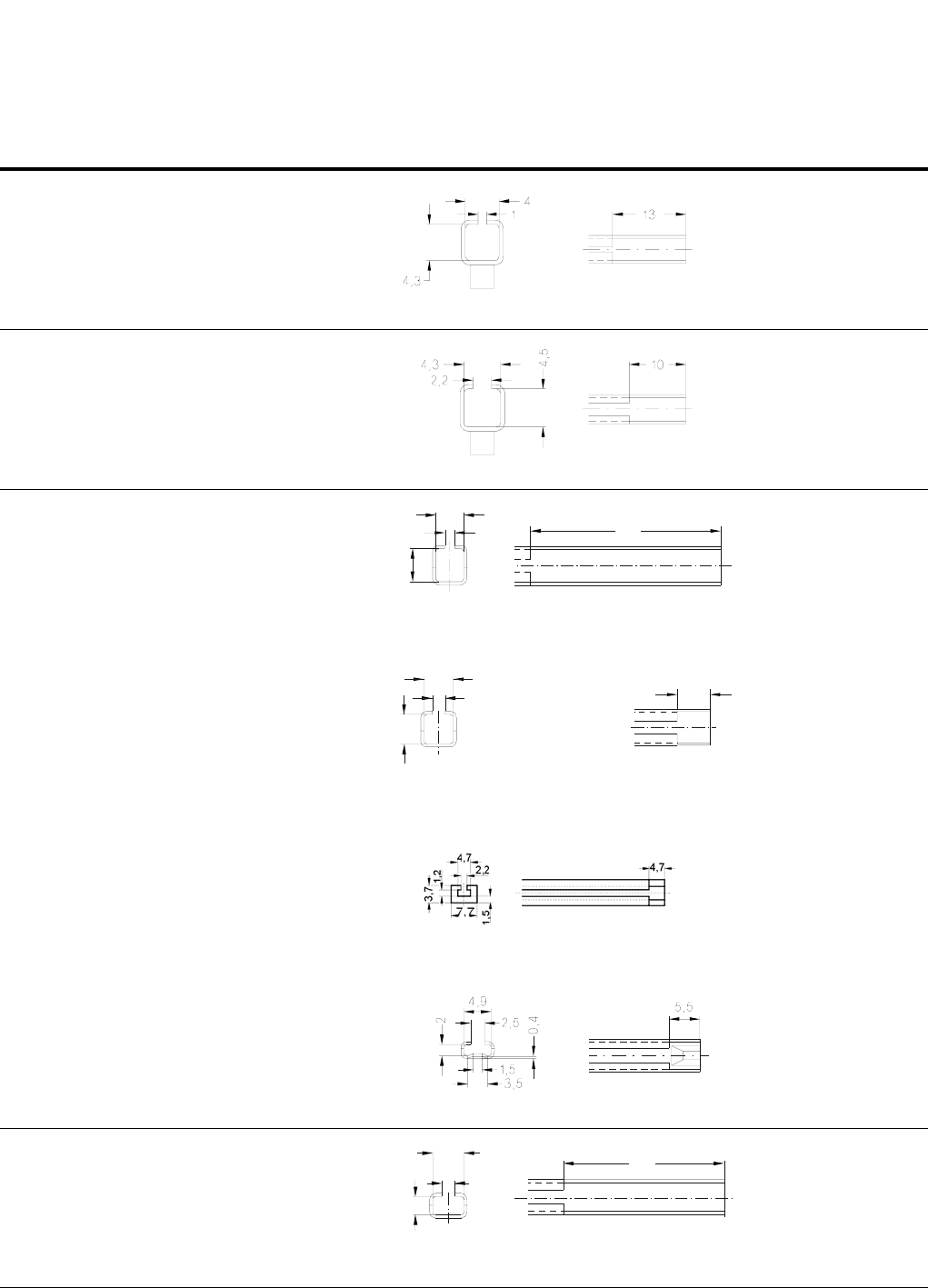

Width [mm]Component
Part Number
SIPLACE
1,5
3
,
9
6
1
,
4
1
,
5
3,5
2,80 03075447
Pick up offset Z= -1mm
2,2
3,2
20
3,20 00376624
3,30 03083119
Pick up offset Z= -1mm
1,5
3
3
,
9
6
1
,
1
1
,
5
3,5
3,50 03080968
Pick up offset Z= -1mm
2,7
24,5
37
2
3,70Substitute of 00335620 03065997
Pick up offset: Z= -1.5mm
2,7
3,7
7
54 2
3,70 00374636
7
,
7
16
1
3,8
3,80 00359569
3 of 37
Stick magazines long version
Width [mm]Component
Part Number
SIPLACE
4,00 00313094
4,30 00319084
30
1,5
4,4
5
,
2
4,40 00332826
5
4,5
4
,
5
2
4,50Side Led 00343792
4,70 03080976
Pick up offset Z= -1mm
4,90 00335489
25
2
2
,
8
4,9
4,90 00358642
